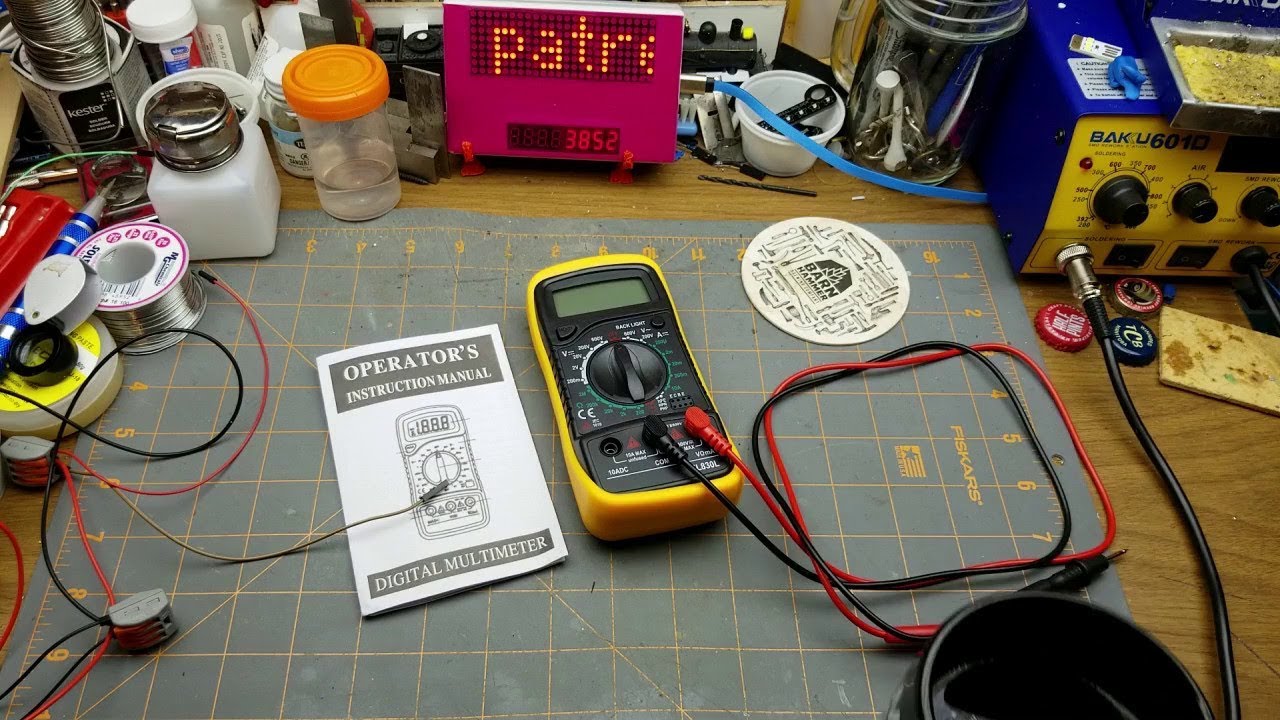

This video offers a comprehensive tutorial on the ANENG AN8205C Digital Multimeter, a popular, low-cost manual ranging meter. While noting that the quality is appropriate for the price, the guide walks through every setting, explaining the core concepts of electrical testing and highlighting the meter's specific features and limitations. As a manual ranging meter, you must select the appropriate range on the dial or the screen will display "1" (out of range) [13:06].

Key Features and Functions (Timestamps): 👇
Lead Ports and Safety:

The black lead always goes to the COM (Common) port [02:15].
The main port is for most measurements (Voltage, Resistance, Temperature, etc.) [02:28].
The separate port is only used for measuring current up to 10 Amps DC [02:40].
The meter's internal resistance is low enough to prevent false "ghost voltage" readings [03:31].

Amperage DC (DC Current):
Current must be measured in series, effectively using the meter as a jumper wire to complete the circuit [05:02].
A negative sign on the display simply indicates that the test lead polarity is reversed [05:44].

Transistor Testing (hFE):
The host confirms that the hFE (transistor testing) function, often included on low-cost meters, does not work out of the box [06:50].

Thermal Couple and Temperature:
The meter comes with a thermal couple and defaults to a temperature reading in Celsius [08:10].

Diode and Continuity:
Continuity (speaker symbol) emits a tone when there is low resistance, helping to quickly check lead integrity or sort wires [09:07].
Diode Testing results on this meter are noted as questionable, with a lower-than-expected forward voltage drop [10:10].

Volts DC (DC Voltage):
DC Voltage is measured in parallel [13:23].

To get the best resolution (reading to the hundredths of a volt), you must select a range that is closest to your expected measurement, such as the 20V setting for a 12V battery [14:04].
