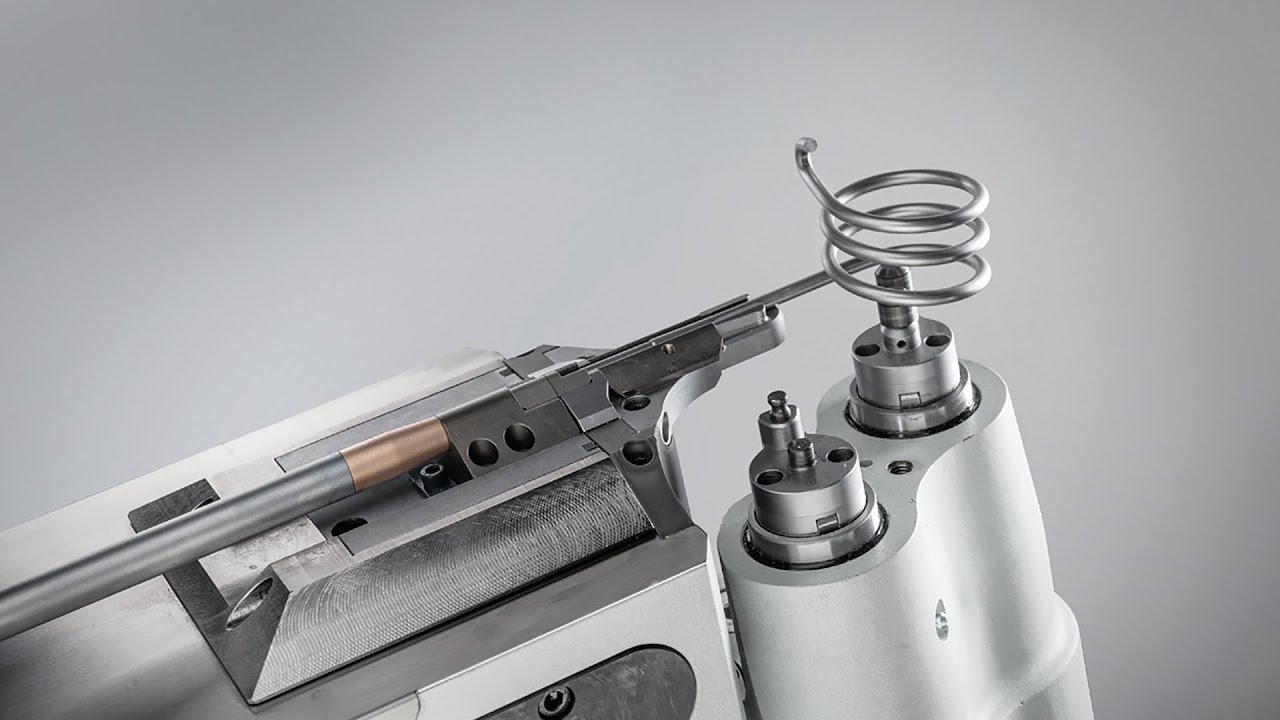

E-FLEX is the new automatic wire bender by BLM GROUP suitable for 3D bending of wire up to 10 mm diameter. Coil feeding ensures fully automatic operation.

The part is straightened out by a revolver which provides a plurality of straightening units of various size and type which are always ready for use and preset to guarantee bending repeatability.

Chamfers can be added for perfect, burr-free cuts.

According to the fitted bending equipment and the required bend type, the automatic wire bender can implement various bending processing by exploiting its two turrets.

The cutting device is managed by an axis. Programming direction and stroke can be programmed to guarantee excellent appearance and closed part overlap.

3D visual graphic programming (VGP3D) and constant visual monitoring of the machining zone by means of cameras make the machine easy, comfortable and safe to use.

Automatic wire bender E-FLEX is particularly suited to produce parts with:
very complex shapes with 3D development
parts with short developments
parts using different bending technologies

#automaticwirebender #wirebendingmachine
