Repair kit DISA BMW N51, N52, N52N, N52K, N53 11617522928, 11617560538 small blade

Описание: Product link: https://klifex.com/remkomplekt-disa-b...

BMW N51, N52, N52N, N52K (11617522928, 11617560538) of current models use a unique DISA unit, which is mounted on the intake manifold. It is a vacuum mechanism that is controlled by a solenoid valve and responds to signals from the engine ECU. Unfortunately, this block fails quite often.

The very principle of operation of DISA in BMW with engines N51, N52, N52N, N52K (11617522928, 11617560538) is based on the use of separated pipelines. You need to understand what this means, so let's talk about it briefly.
Why is the DISA unit used in BMW car engines

To date, many BMW car engines are equipped with a unique device - the DISA unit, which serves to regulate the air flow directed to the engine. DISA is a damper that closes and opens pipelines of various diameters and lengths, depending on the operating mode of the motor. The damper position is controlled by a mechanism that is part of the DISA unit.

Thanks to this device, which instantly redirects the air flow through pipelines with different sections and lengths, the parameters of the air flow entering the motor are adjusted. At high engine speeds, air flows through wide, short pipes, and at low and medium speeds, through longer and narrower ones. Thus, the DISA unit allows you to provide a constant torque in any engine operating mode.
When you need a repair kit DISA BMW N51, N52, N52N, N52K 11617522928, 11617560538 (small blade)

During the operation of a car with a DISA unit installed on the engine, problems arise with its operation associated with the gradual wear of the connection between the blade and the lever. This leads to dangling of the blade and the appearance of characteristic sounds. If the problem is ignored, the situation may worsen until the blade is completely detached, which will negatively affect the operation of the motor. In this case, you will have to change the whole block, which is quite expensive and takes more time.

However, replacing the block with a new one is not a long-term solution, since the connection of the blade and the lever in the new block has the same problems, and it costs a lot. In this situation, we can offer our solution - repair of the DISA unit using a repair kit made by us. Such repairs will allow you to use the unit for a long time without the cost of buying a new one.

You can order a new repair kit DISA BMW N51, N52, N52N, N52K 11617522928, 11617560538 (small blade) quickly and at an affordable price using the site or by phone with the manager (contacts are listed at the top of the site).

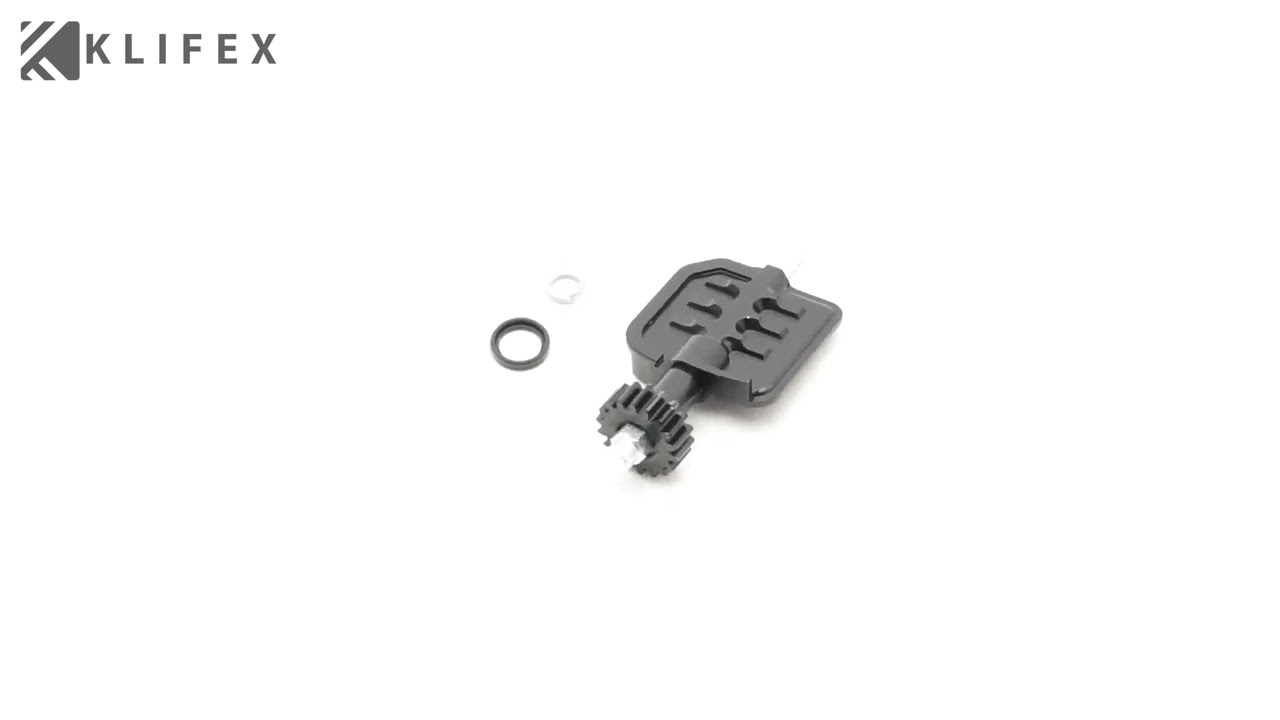

Our kit consists of:
Aluminum alloy blades - 1;
Gears made of aluminum alloy - 1;
Guide axis made of steel - 1;
Sealing gland - 1;
Grover's – 1.

Original DISA node numbers:
11617522928
11617560538

Applicability:
1' E81 (02/2006 — 12/2011)
1' E87 (03/2005 — 02/2007)
1' E87 LCI (01/2006 — 06/2011)
1' E88 (05/2007 — 10/2013)
1' E82 (02/2007 — 09/2013)
3' E90 (02/2004 — 09/2008)
3' E90 LCI (07/2007 — 12/2011)
3' E91 (03/2004 — 08/2008)
3' E91 LCI (03/2008 — 05/2012)
3' E92 (05/2005 — 02/2010)
3' E92 LCI (09/2009 — 06/2013)
3' E93 (09/2005 — 02/2010)
3' E93 LCI (09/2009 — 10/2013)
5' E60 (07/2004 — 02/2007)
5' E60 LCI (11/2005 — 12/2009)
5' E61 (07/2004 — 02/2007)
5' E61 LCI (11/2005 — 04/2010)
5' F10 (01/2009 — 06/2013)
5' F11 (02/2009 — 06/2013)
6' E63 (02/2004 — 07/2007)
6' E63 LCI (04/2006 — 07/2010)
6' E64 (03/2004 — 07/2007)
6' E64 LCI (04/2006 — 07/2010)
7' E65 (06/2004 — 07/2008)
7' E66 (07/2004 — 07/2008)
7' F01 (06/2008 — 06/2012)
7' F01 LCI (07/2011 — 05/2015)
7' F02 (09/2007 — 06/2012)
7' F02 LCI (06/2011 — 05/2015)
X1 E84 (09/2008 — 08/2011)
X3 E83 LCI (02/2006 — 08/2010)
X3 F25 (07/2009 — 03/2012)
X5 E70 (02/2006 — 03/2010)
Z4 E85 (10/2004 — 08/2008)
Z4 E86 (10/2005 — 08/2008)
Z4 E89 (01/2008 — 08/2011)
