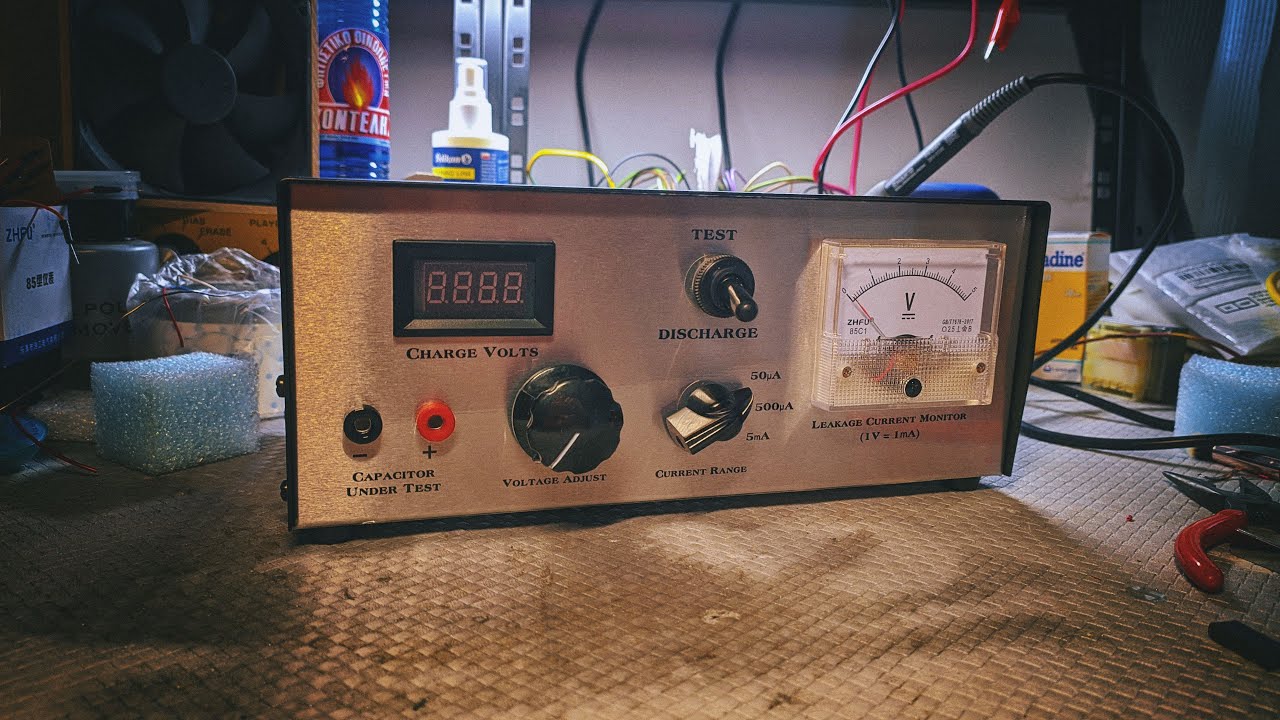

AWA Capacitor Leakage Tester with meter mod (Enclosure Layout and Drill) - Part 1/3

Описание: This is Part 1/3 on DIYing the AWA (Antique Wireless Association) Capacitor Leakage Tester along with the Analog Panel meter modification circuit made by XRayTonyB.

On this high speed video i' m dealing with the hardware needed for this project and how i managed it. I started with making the drilling layout followed by the actual drilling process, pointing what to watch out to avoid mistakes. Part one ends with the vinyl decal attached on the front for the graphics.

Chapters
0:00 - Intro
0:09 - Hardware
0:40 - Taking measurments and drawing cut Layout
4:00 - Cuting and dryfit the FrontPanel Layout
4:59 - Drawing & Cutting the BackPanel
6:05 - Drilling & Cutting the chassis
10:30 - Getting the factory decall off
10:51 - Dryfitting the hardware
11:07 - Dryfiiting and drilling the pcb's
11:28 - Punching & Drilling the base for standoffs
13:43 - Mounting eveything alltogether
14:17 - Trimming the rotary switch
14:52 - Installing Vinyl decal for Graphics
15:44 - Outro

In Part 2/3 i 'll show the issues i run , mistakes i made and challenges i overcome to built the circuit, calibrate and have it ready on my bench.

The reason for uploading this vlog is to help or educate some unexperienced amature like me to get along with things that doesn't always implied on his/her mind.

PART2 -    • AWA Capacitor Leakage Tester - Building th...

main pcb board : https://www.antiquewireless.org/homepage/p...

Please watch XRayTony'sB video to educate yourself !
   • Capacitor Leakage Tester Build  - Antique ...

Music on video:
   • Olympus - Late Night Session
