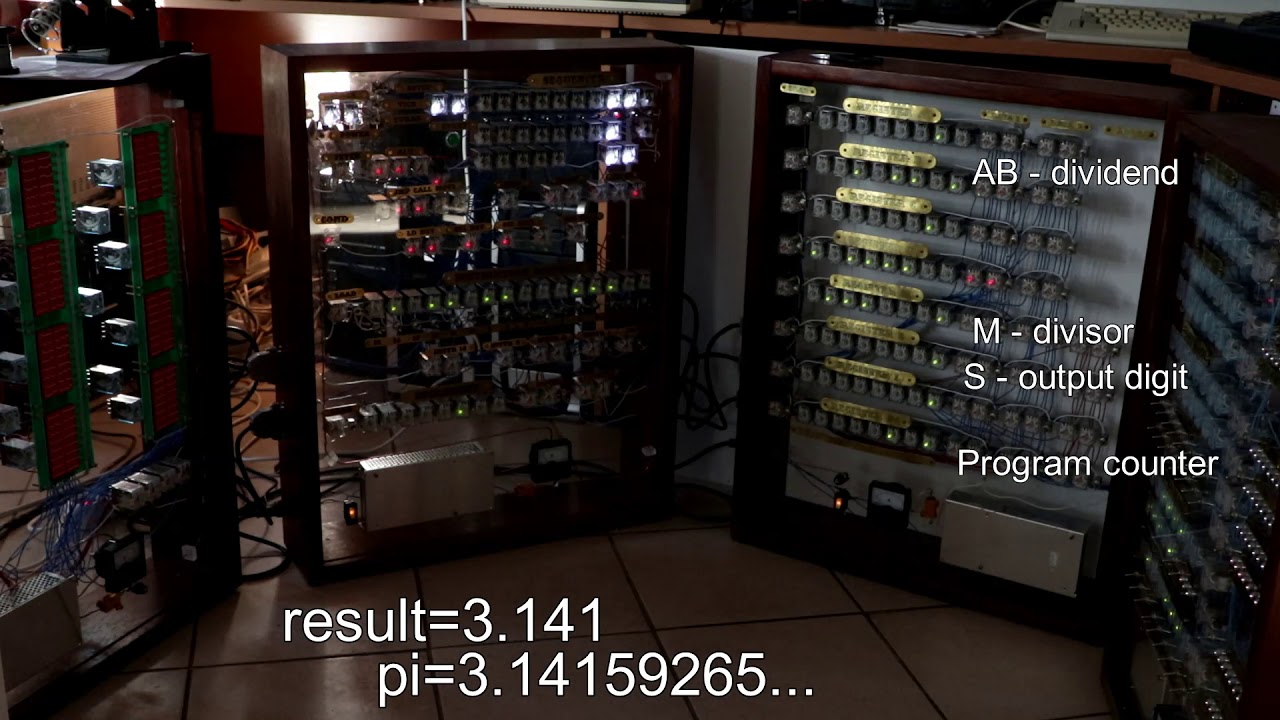

Relay computer calculates 7 digits of Pi

Описание: Calculation of Pi approximation by dividing 355 to 113.

Program outputs digits (one by one) of the result into the register S, which can be observed by the user.

Executed program listing:

; var a
MOVI A, 1 ; 00: 10000000 00000001
MOVI B, 99 ; 01: 10000001 01100011
; var b
MOVI M, 113 ; 02: 10000100 01110001
Main:
Div:
MOVI L, 0 ; 03: 10000110 00000000
Loop:
SUB D, B, M ; 04: 01011011 00011100
SBC C, A, 0 ; 05: 01010010 10001000
JMP C, Exit ; 06: 10110111 00001011
ADD L, L, 1 ; 07: 01001110 11101001
MOV B, D ; 08: 00011001 00110000
MOV A, C ; 09: 00011000 00100000
JMP Loop ; 0a: 10000111 00000100
Exit:
; Display next digit in S
MOV S, L ; 0b: 00011101 01100000
; rem * 2 still less than 256
ADD D, B, B ; 0c: 01001011 00011001
; rem * 4
ADD B, D, D ; 0d: 01001001 00111011
ADC A, A, A ; 0e: 01000000 00001000
; rem * 8
ADD B, B, B ; 0f: 01001001 00011001
ADC A, A, A ; 10: 01000000 00001000
; rem * 10
ADD B, B, D ; 11: 01001001 00011011
ADC A, A, 0 ; 12: 01000000 10001000
JMP Main ; 13: 10000111 00000011


Project page on github: https://github.com/Dovgalyuk/Relay
