True A Bike Wheel Rim To Make It Circular

Описание: If a rim is not a round circle it will appear to move up and down as it passes through a rim brake or goes by some other index point. You can true a rim by adjusting the spoke tension.

Subscribe to our videos: https://www.youtube.com/user/madegood...
Visit our website: https://www.madegood.com/bikes/
Visit our page:    / madegoodorg

00:06 Step 1 - Remove The Tyre And Tube
You can’t true a rim wich is non-circular rim without removing the tyre and tube.

00:24 Step 2 - Diagnose
Watch the rim carefully and move the index point so that it just drags on the rim at it’s furthest point from the hub. To true a rim is much easier if you have a wheel-jig.

00:39 Step 3 - Decide Which Spokes Need To Pull Harder
All the spokes going to the hub from the rim’s high-point need to be tightened.

00:51 Step 4 - Spread The Load
Tighten in the middle more than those at the end of the misalignment. Make small adjustments don’t give any spoke more than a half turn before checking and re-diagnosing.

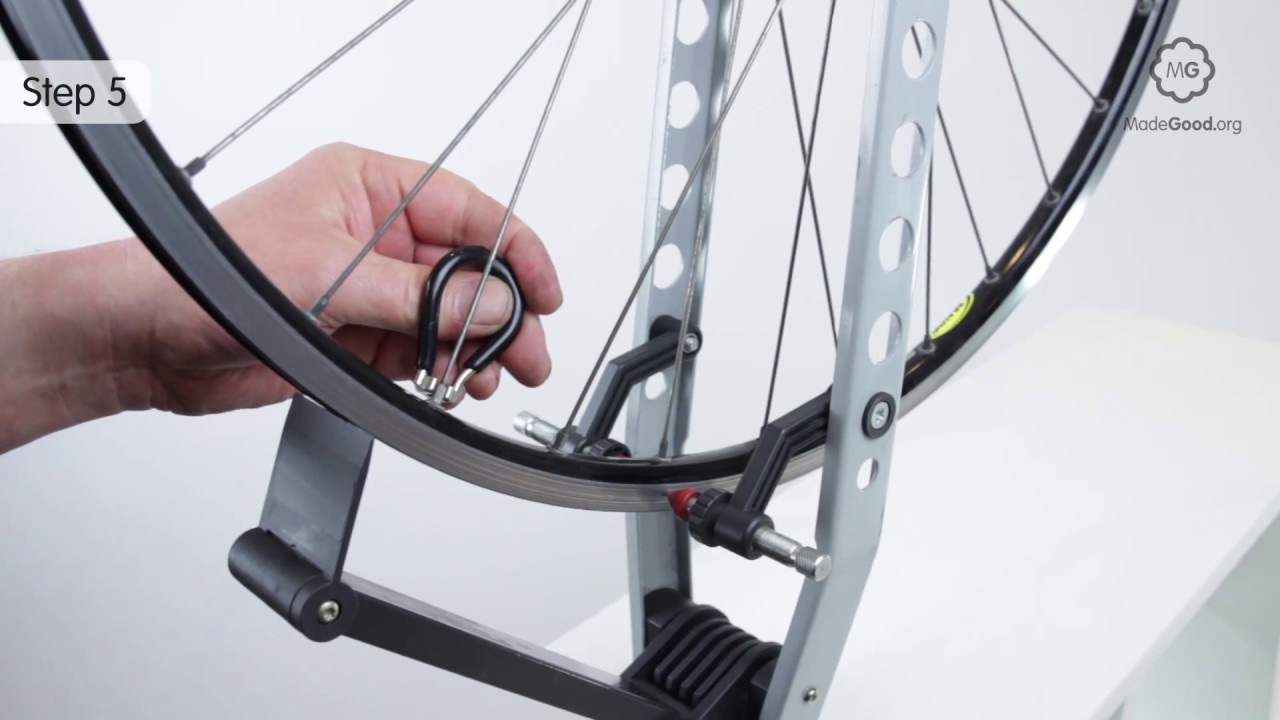

01:02 Step 5 - Loosen
If the rim has a dip loosen all the spokes under that point.


01:12 Step 6 - Make The Test Harder
As the rim improves move the index point to find a new position where it drags on the rim. Take your time and have patience, there is an art to being able to true a rim.

01:24 Step 7 - Stress The Spokes
Between each round of adjustment and re-diagnosis stress the spokes using the procedure checking spoke tension and squeezing hard. This releases any twisting forces trapped in the spokes. If you don’t do this the forces will be released the first time the bike is ridden and the wheel may go out of true straight away. This stressing process is the main difference between a hand-built wheel and one built by a machine.

Pro Tip
If you can’t get the rim straight without very uneven spoke tension the rim may be damaged beyond repair and need replacing- this is an example of when you cannot true a rim.
