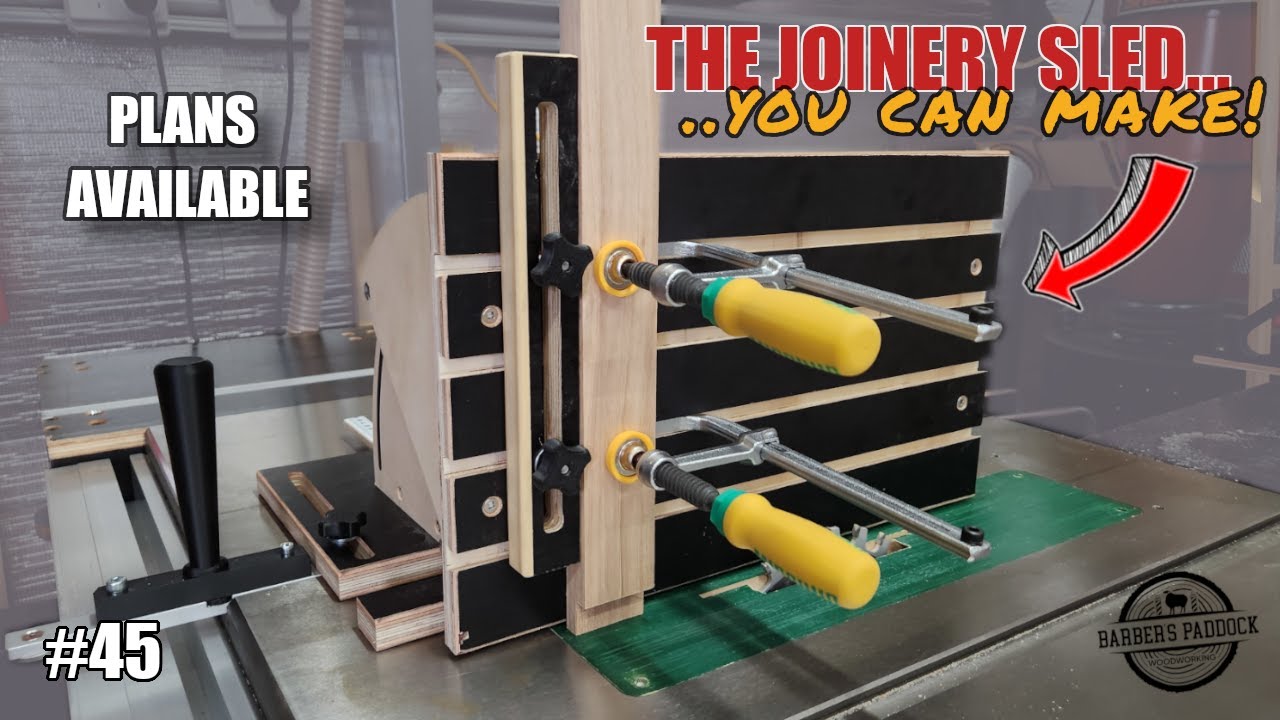

I couldn't buy one, so I made one instead - the DIY joinery sled

Описание: We've all been there, scrolling through your news and social feeds, when an ad for what looks like a pretty interesting woodworking tool or product comes up. However, that joy is quickly overshadowed by the realisation that it's either not available where you live, is too expensive, or worse both!

I stumbled across the Woodpeckers Joinery Sled, and unfortunately it's not available here yet, and more over, is going to cost well over $600 for it.

So I did the only thing I could think of. Design and make my own!

After many hours in CAD, 3 trial builds and testing, I finally landed on version 2.0 which is proving to be everything I'd hoped for and more!

Featuring bevel adjustment, dovetail clamping, micro adjustments and a feature not even the red tool has, a digital DRO feature!

In this video, I cover building my prototype, some of the issues I ran into and challenges, as well as a few changes I made.

Schematics are available from my website if you're interested in building your own!

Be sure to check out part 2 where I take the sled out for a spin!

LINKS:
Mitrebar:
https://www.timbecon.com.au/products/...

Technical Plans/Drawings/3D Files/Laser Files:
https://www.barberspaddockwoodworking...

PART 2!
   • SLED IT BE! - putting the DIY joinery sled...   - If you want to see how the sled performs check out part 2!

Vipun Design:
‪@VipunEnvisageDesigns‬

CHANNEL MEMBERS
‪@FixitFingers‬ ‪@woodfather‬ ‪@dainermade‬ ‪@noelpwilliams‬ ‪@keithclark1863‬ ‪@riversidewoodworks‬ ‪@mattdaldry‬ ‪@plankie1965‬ ‪@BuiltByChris‬ ‪@brianbuildsstuffau‬ ‪@gumundurmarkristjansson5579‬

I need to apologise to Brian and Gumundur at the end, as for some reason it omitted my audio mentioning your names and generosity. I will address that again in the next video.

TIMESTAMPS:
0:00 - Intro
1:47 - Before we get started
2:35 - Building the base
4:59 - Marking out the base and templating out the necessary parts
7:23 - Laser cutting the bevel sides
8:40 - How it's going to work
11:00 - Creating our mini mitre bars
14:09 - How does the micro adjust work?
17:54 - Assembling the micro adjust
19:32 - Showing on the adjust works
20:44 - Adding a calliper for digital micro adjustment
21:50 - Making the upright clamping face
27:17 - Cutting a mitre bar
29:22 - Final thoughts and updates to the design
