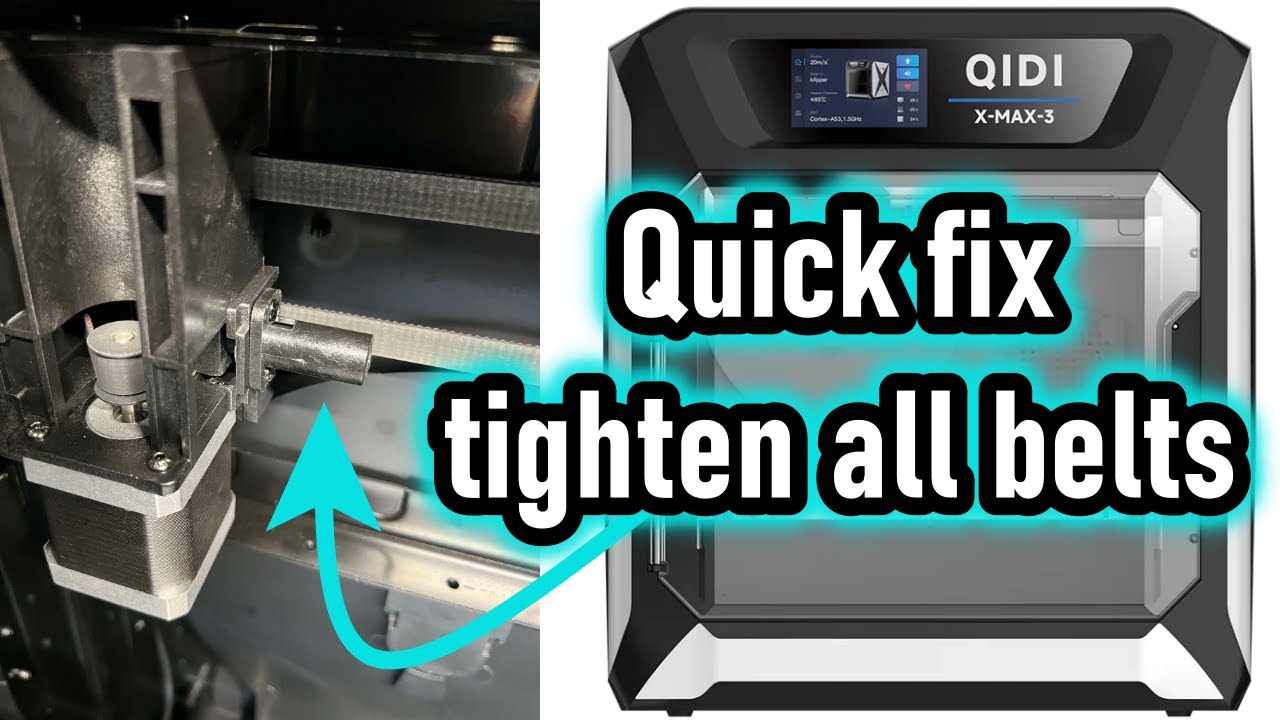

QIDI X-Max3 Belt Tighten QUICK FIX!
Автор: Just A Veteran
Загружено: 2024-09-02
Просмотров: 2536
Описание:
After days of googling and youtube videos no one had a solve for the loose belts on the QIDI X-Max3 with the tension springs. I got messed around with it and found that those tension springs are not auto tension springs. Once the 4 bolts in the back of the printer are tight those springs do not do anything. After learning that, well I made a "quick fix". If you have help just take those tension springs off and have someone push a screw driver through that hole until the belt is tight than tighten those screws down. If not use the old flat bolt method that I did. I do want to put a WARNING out there, I don't know if they will void any warranties so be mindful of that.
I used a 3/32 drill Bit and a similar size screw.
You could probably use anything similar. Why I used a 3/32 bit is incase I messed this up it would not ruin the inside of the tension spring housing.
Is this a forever fix? No clue but I am back to printing and its more than QIDI has mentioned about this matter. I am sure someone could make a file to replace this but that someone at least for now is not me.
