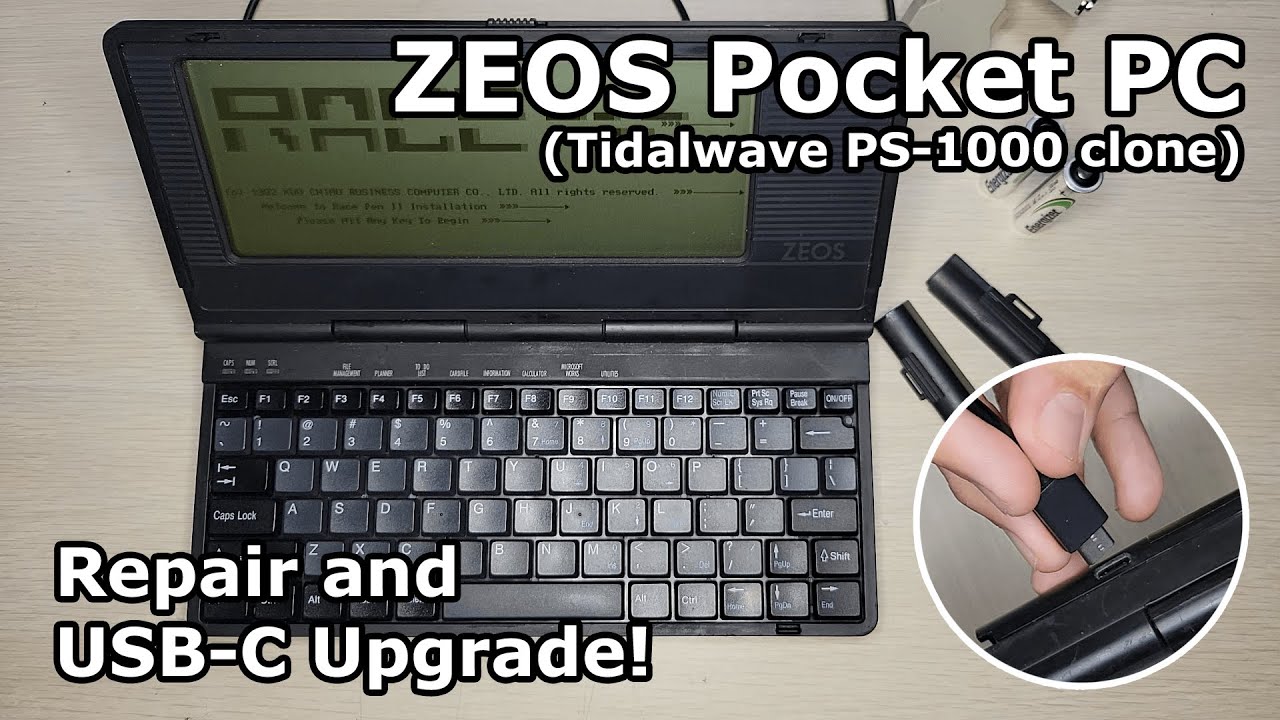

ZEOS Pocket PC Repair and USB-C Upgrade (Tidalwave PS-1000)
Автор: Robert's Retro
Загружено: 2025-01-29
Просмотров: 3291
Описание:
This Tidalwave PS-1000 clone from 1992, the ZEOS Pocket PC, has some serious battery damage. Let's fix it and add convenient USB-C 9 volt power input!
Mentioned in this Video
Poqet PC Repair: • Poqet PC (XT Clone) LCD Ribbon Replacement
Mr Christmas Jukebox: • Home Automation with the Mr Christmas Jukebox
Libretto USB-C: • Toshiba Libretto Upgrade with USB-C Charging
Connectors
Unknown 10 Pin (Serial)
Unknown 26 Pin (Parallel)
TI Presenter 26 Pin = 12715-26p Suyin
Major Chips
Tidalwave TM8886A = SOC / Glue Logic
NEC D70116HG-10 V30 = 10MHz 80806 CPU
Toshiba TC514800AJLL-90 x2 (4mb) = 1MB DRAM
NEC D27C4001GW-15 (4mb) = 512KB UV CMOS EPROM (C: DOS)
NEC WORKS-001 (8mb) = 1MB Mask ROM? (D: Works)
Panasonic MN44256S-10LL (256k) = 32KB SRAM (Video)
Shoutouts
Hackaday: https://hackaday.com/2025/01/31/ancie...
