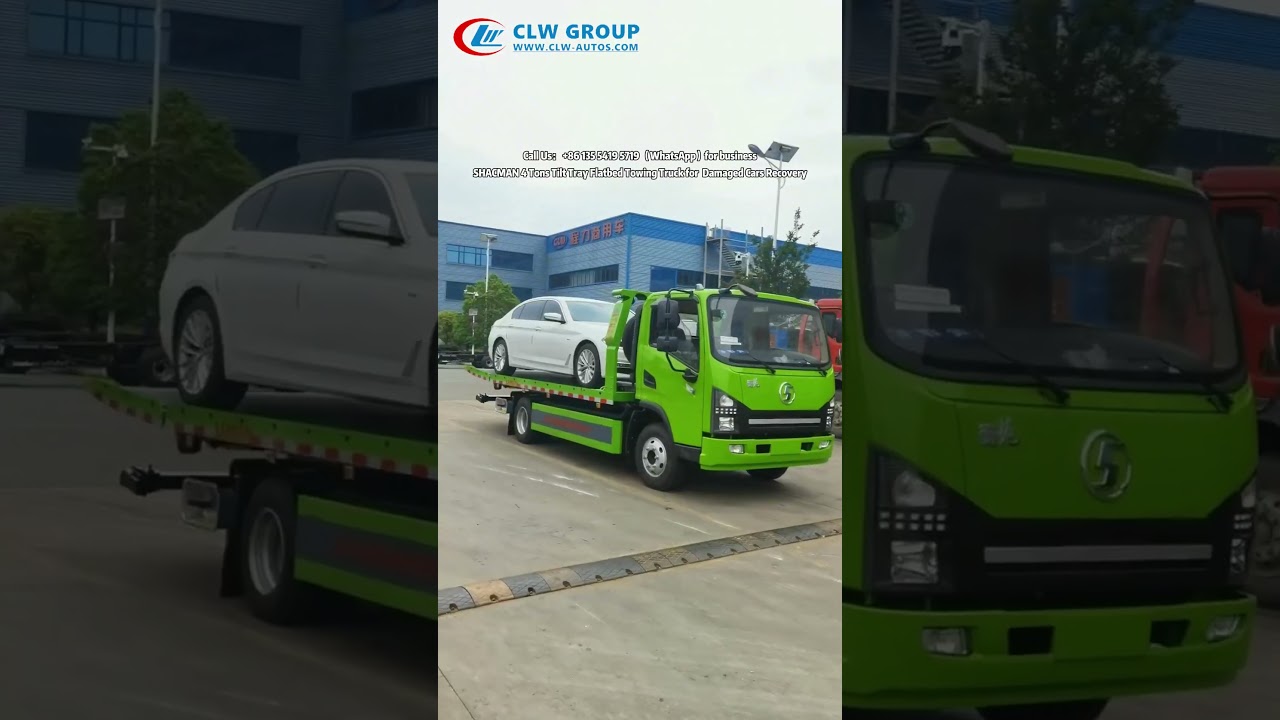

SHACMAN 4 Tons 4MT Tilt Tray Hydraulic Platform Flat Bed Towing Truck for Abandoned Car Recovery

Описание: SHACMAN 4 Ton Tilt Tray Hydraulic Platform Flatbed Towing Truck

The SHACMAN 4 Ton Tilt Tray Hydraulic Platform Flatbed Towing Truck is a robust and maneuverable recovery vehicle engineered for the efficient and safe removal, transport, and recovery of abandoned, impounded, damaged, or disabled vehicles. Combining a reliable SHACMAN medium-duty chassis with a 4-metric-ton capacity hydraulic tilt platform, this truck provides an all-in-one solution for law enforcement impound lots, city towing services, and private towing companies specializing in light-duty recovery operations.

1. Hydraulic Tilt Platform (Flatbed) System
Platform Type: Full hydraulic tilting platform with integrated rear ramps (beavertail).

Platform Dimensions: Length: 5.8m - 6.2m, Width: 2.3m - 2.4m.

Platform Height (Lowered): As low as 0.7m from ground for easy loading.

Tilt Angle: Hydraulically controlled, up to 12-15 degrees.

Deck Surface: Anti-skid steel plate or grooved hardwood for secure tire grip.

Tie-down Points: Multiple heavy-duty D-rings or integrated E-track rails.

Load Capacity: Rated for 4,000 kg evenly distributed load.

2. Integrated Recovery Winch System
Winch: Hydraulic planetary winch with 8,000 - 10,000 kg (8-10 ton) line pull capacity.

Cable: 40-50 meters of high-tensile steel cable or synthetic rope (optional, lighter and safer).

Control: Wired remote control pendant or optional wireless remote for safe single-operator use.

Fairlead: Heavy-duty roller fairlead.

3. Hydraulic Stabilization & Safety
Outriggers: Two (2) or Four (4) hydraulic outriggers (box-section or leg type) mounted on the chassis.

Function: Provides essential stability during winching operations on uneven surfaces.

Control: Individual controls with visual level indicators.

4. Lighting, Safety & Utility Features
Warning Lights: 360° LED light bar, rotating beacons, amber/red warning lights.

Work Lights: Rear LED floodlights for nighttime operations.

Safety Markings: Reflective chevrons, "TOW" and "IMPOUND" signage, high-visibility paint.

Tool Storage: Lockable under-body toolboxes for recovery gear (chains, binders, straps).

Air System (Optional): Onboard air compressor for tire inflation or air tools.

5. Typical Recoverable Vehicles

Passenger Cars & Sedans

SUVs & Crossovers

Vans & Minivans

Small Pickup Trucks

Motorcycles (multiple, with proper securing)

6. Applications

Municipal Abandoned Vehicle Removal: Clearing derelict cars from public streets and properties.

Police Impound Services: Towing vehicles for evidence, parking violations, or arrests.

Private Property Towing: Removing unauthorized vehicles from private lots (shopping centers, apartments).

Breakdown & Accident Recovery: Assisting disabled or lightly damaged vehicles.

Auction & Dealership Transport: Moving vehicles between lots.

Keywords: SHACMAN Flatbed Tow Truck, 4 Ton Tilt Tray Wrecker, Abandoned Car Recovery Truck, Impound Tow Truck, Hydraulic Platform Towing, Light Duty Recovery Vehicle, Municipal Towing Truck.

The Efficient Solution for Urban Vehicle Recovery.
The SHACMAN 4 Ton Tilt Tray Truck is purpose-built to handle the daily demands of clearing abandoned vehicles and performing light-duty recoveries. It combines the right amount of power, precision, and practicality to keep streets clear and operations running smoothly, making it an indispensable tool for any modern towing or municipal service fleet.

CLW Group, Chengli Special Automobile Co., Ltd is a manufacturer for special trucks and trailers, established in 2004. We have many successful cases for supporting towing services, Road recovery services, Emergency Rescue on the road for breakdown accident trucks, cars, buses etc.
