ON18 P42 Q8 Wire Torque Balance | A2 Magnetic Fields | Cambridge A Level 9702 Physics
Автор: ETphysics
Загружено: 2021-01-19
Просмотров: 13409
Описание:

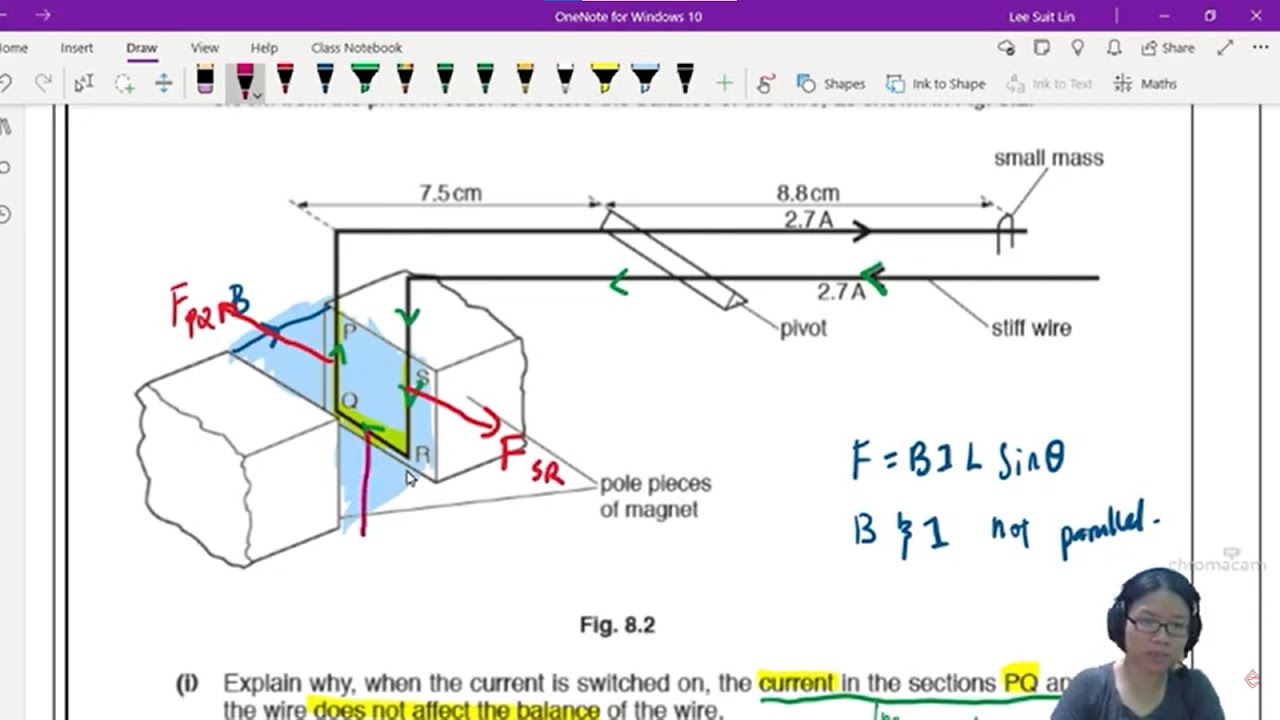

9702/41/O/N/18: (b) A stiff copper wire is balanced horizontally on a pivot, as shown in Fig. 8.1. Sections PQ, QR and RS of the wire are situated in a uniform magnetic field of flux density B produced between the poles of a permanent magnet. The perpendicular distance of PQRS from the pivot is 7.5 cm. When a current of 2.7 A is passed through the wire, a small mass of 45 mg is placed a distance 8.8 cm from the pivot in order to restore the balance of the wire, as shown in Fig. 8.2.
#9702w18p41 #A2forceOnConductorP4 #Lv3
(i) Explain why, when the current is switched on, the current in the sections PQ and RS of the wire does not affect the balance of the wire.
(ii) The length of section QR of the wire is 1.2 cm. Calculate the magnetic flux density B
#A2MagneticFields Playlist:
• Ch20 Magnetic Fields (Part 1) | CAIE 9702 ...
