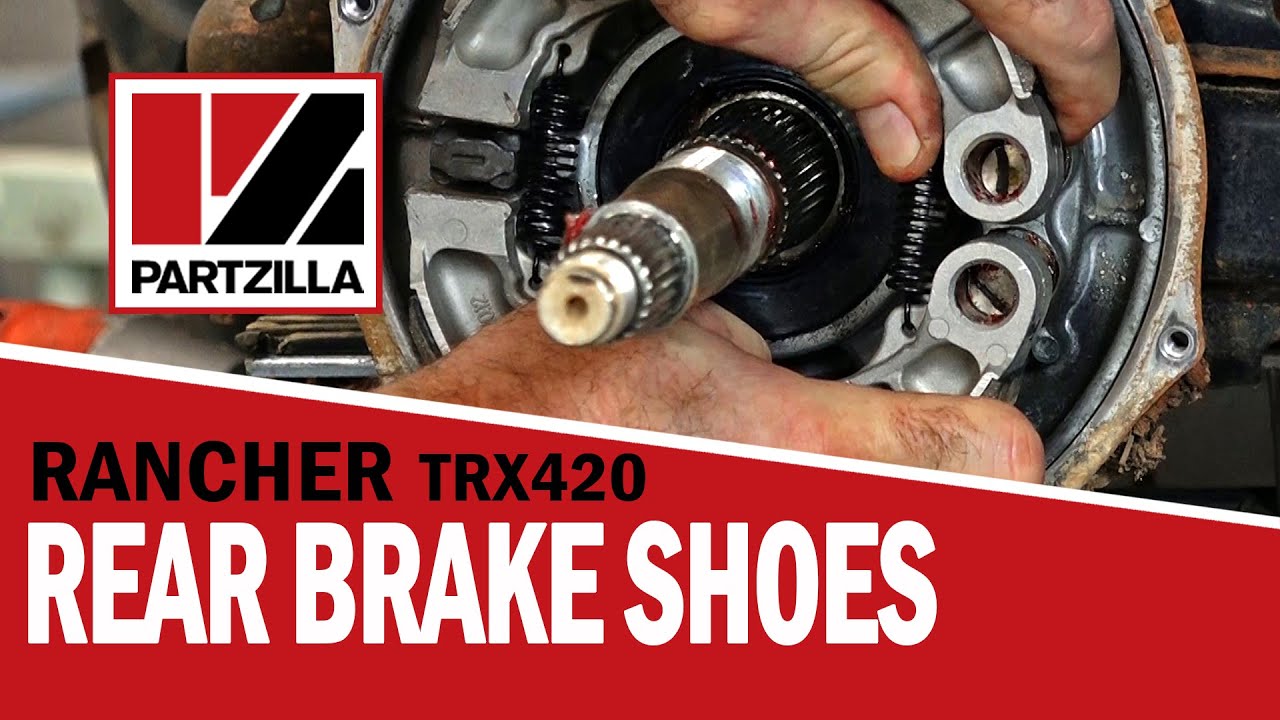

See how to replace the rear brake shoes on a Honda Rancher 420 in this video from Partzilla.com. While the models are different, this process will be similar across TRX utility models.

This is a more complex job than just replacing the brake pads on your hydraulic brakes. The rear brake drum on the Honda Rancher TRX420 is roughly in the middle of the rear axle, so removing and replacing the brake shoes requires the removal of the wheel and then cracking open the rear brake drum housing.

Because the job is more labor intensive, it makes sense to change the four seals in the assembly if you're opening it up. There is one seal each on the front and back of the drum around the axle, one is an axle dust seal on the housing, and a fourth seal-- an O-ring-- seals the outer housing and brake drum.

In this video, John will guide you through the process. We’ll remove the wheel, and then attack two axle locking nuts that we’ll need to remove in order to slip the housing out over the axle. Then, we’ll open the brake drum and replace the seals and the brake shoes.

As we’re reassembling, it’s important that you correctly torque the axle nuts. John will do this by feel, but if you’re unsure that you’re getting the right torque on these nuts, there are two special tools that can assist you. Check 19:17 in the video to see exactly how these two tools work:

Honda axle nut adapter: https://www.partzilla.com/product/hon...

Honda axle nut holder wrench: https://www.partzilla.com/product/hon...

Once that’s done, we’ll adjust the brakes and reinstall the wheel.

See the Rancher 420 rear wheel diagram: https://www.partzilla.com/catalog/hon...

See the Rancher 420 rear brake diagram: https://www.partzilla.com/catalog/hon...

Read how to do this job step by step: https://www.partzilla.com/blog/honda/...

VIDEO HIGHLIGHTS:
Removing the hub - 1:30
Opening the brake housing - 5:00
Removing the brake drum - 6:00
Removing the brake shoes - 9:00
Removing the axle seal - 11:10
Replacing the brake shoes - 12:20
Replacing the outer axle seal - 14:00
Replacing the O-ring - 14:47
Replacing the dust seal - 15:00
Reassembling the brake drum - 16:15
Replacing the hub - 19:46
Adjusting the brakes - 20:40
Replacing the wheel - 22:00

Honda TRX420 front brake pad change:    • How to Change the Front Brake Pads on a Ho...

Got a Rancher 420? Bookmark our playlist for more maintenance videos:    • 2012 Honda TRX420 Rancher Repairs

Buy Honda ATV parts here: http://www.partzilla.com/parts/search...

Talk to us:
Twitter:   / partzilla
Facebook:   / partzilla
Instagram:   / partzilla

In the video we’re working with a 2012 Honda Rancher TRX420, but you will have similar steps for your Honda ATV. If you’re not sure whether these steps apply to your machine, leave a comment and we’ll get back to you.
