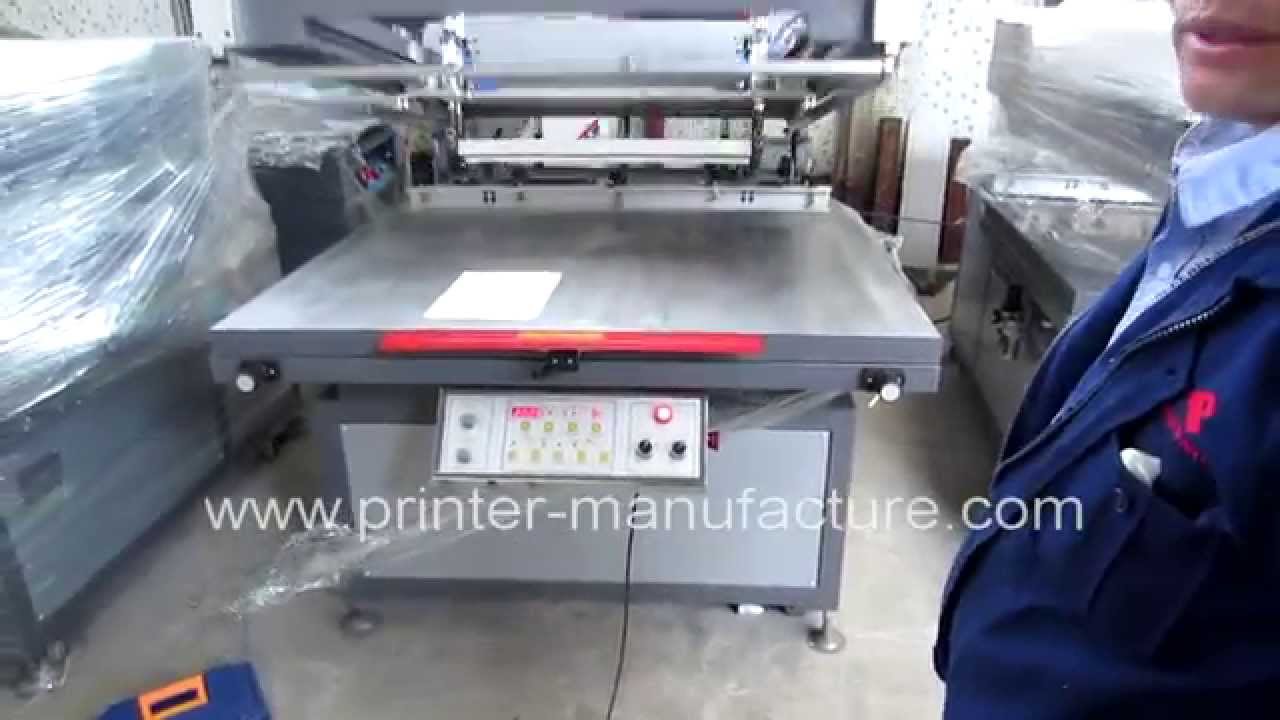

Large Size Tilted-Arm Flat Bed Screen Printing Machine
Автор: EC Printing Machine Factory Limited
Загружено: 2015-01-31
Просмотров: 3181
Описание:
http://www.ecpnp.com/Tilted-arm-Vacuu...
Specification
1. Working Table Size:1000*1300MM
2.Max printing area：900X1200MM;
3. Max. Screen Size:1200*1500
4. Min.Screen size: 650*700mm
6. Frame Lift Height: 300mm
7. Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8. Air consumptions(0.6 mpa): 13/pcs
9. Max.Product thickness:0-130mm
10. Power rate: 2.3KW
11. Voltage: 220V/50HZ, single phrase
12. Table Height: 820mm
13. Max. printing speed. 500-1200pcs/Hour
14. Machine dimension:1800*1400*1300mm
15. Machine weight: 550Kg
Company:EC Printing Machine Factory Limited
Website 1: www.printer-manufacture.com
Website 2: www.ecpnp.com
Email 1: [email protected]
Email 2: [email protected]
