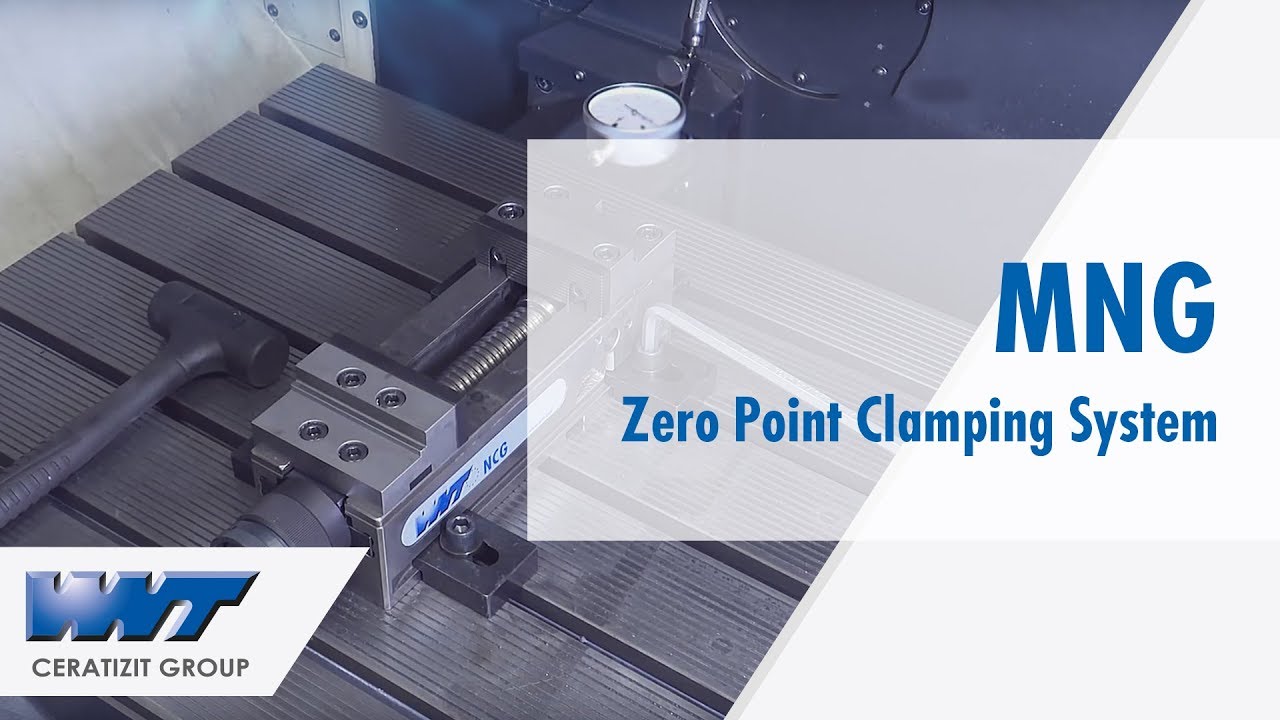

MNG - Mechanical Zero Point Clamping System for Machining
Автор: WNT – part of the TEAM CUTTING TOOLS
Загружено: 2015-11-24
Просмотров: 34187
Описание:
Flat zero-point clamping system
-- 30mm high
-- hardened and ground
-- wear resistant
-- resistant to chips
Solid mounting bolt Ø40 h6
-- high insertion force and rigidity
-- Adapter centre in vice Ø25 H7
-- Pull stud compatible with the leading zero point clamping systems
Precise & simple
-- Repeatability less then 0,01mm
-- Insertion force 20 kN
- Height Tolerance +/ 0,005 mm
Mounting options on the machine table
-- with 2 M12 dowel screws and 2 M12 bolts
-- 2 screws M12 with precision tenons
-- with alignment and centring set with
-- round brackets
4 x 90° Indexing
-- with pins Ø12m6
-- Centric vice ZSG mini
-- Single vice ESG mini
-- Pallets and Tables
Mechanical clamping
-- Torque 30 Nm
-- 1 clamping screw
-- Wrench size 8
Exemption
-- easy cleaning
-- high rigidity
-- resistant to damageung
