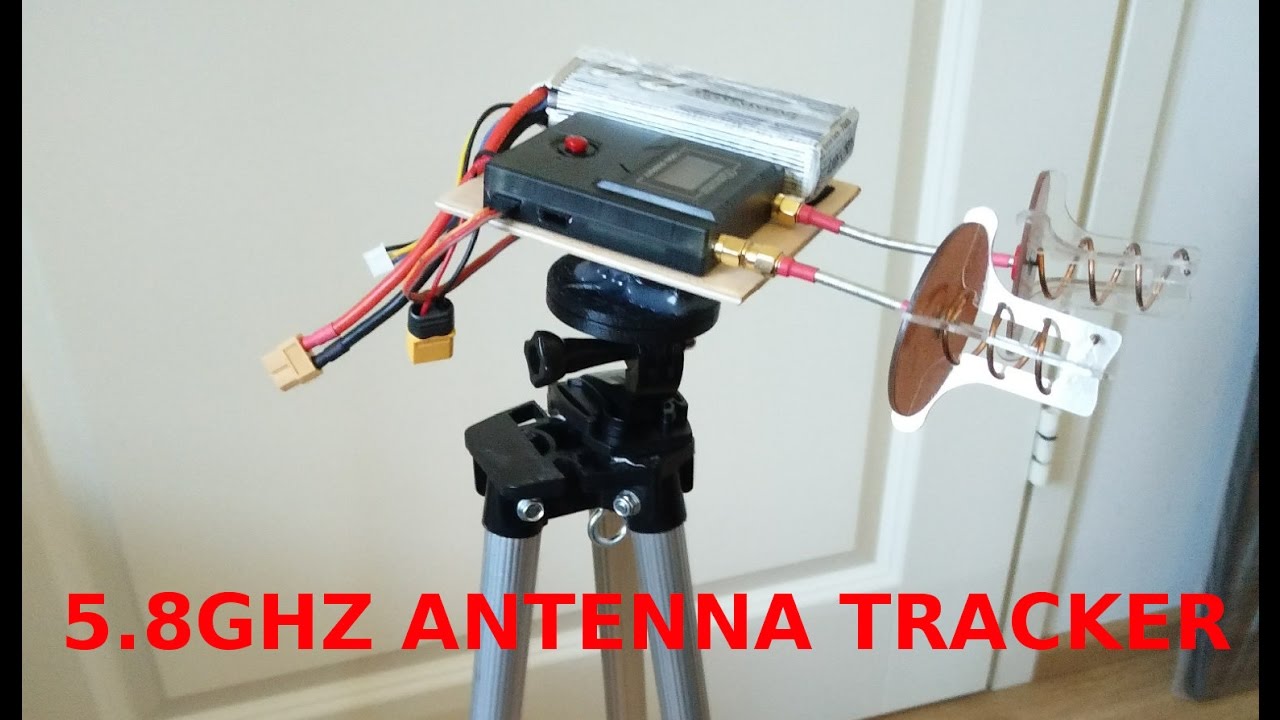

SUPER SIMPLE 5.8GHz RSSI ANTENNA TRACKER
Автор: Andrei Vainik
Загружено: 2016-11-06
Просмотров: 108803
Описание:
This antenna tracker is based on 5.8GHz RC540R diversity video receiver. There are other RSSI trackers, but this one is really simple and cheap.
Main parts:
RC540R diversity video receiver or FR632
2 x directional antennas, helical or patch
Arduino Pro Micro ATmega32U4
9g servo
5V voltage regulator
Arduino Source code, STL files, photos
https://github.com/andreiva/simple-rs...
RC540R video receiver
https://www.hobbyking.com/en_us/5-8gh...
• Quanum 5.8GHz FPV diversity receiver - on ...
• Tweaking the Quanum 5.8GHz FPV diversity r...
Arduino (Leonardo)
http://www.ebay.com/itm/Leonardo-Pro-...
Servo
https://www.hobbyking.com/en_us/turni...
5V (adjustable) voltage regulator
http://www.ebay.com/itm/2PCS-Supper-m...
