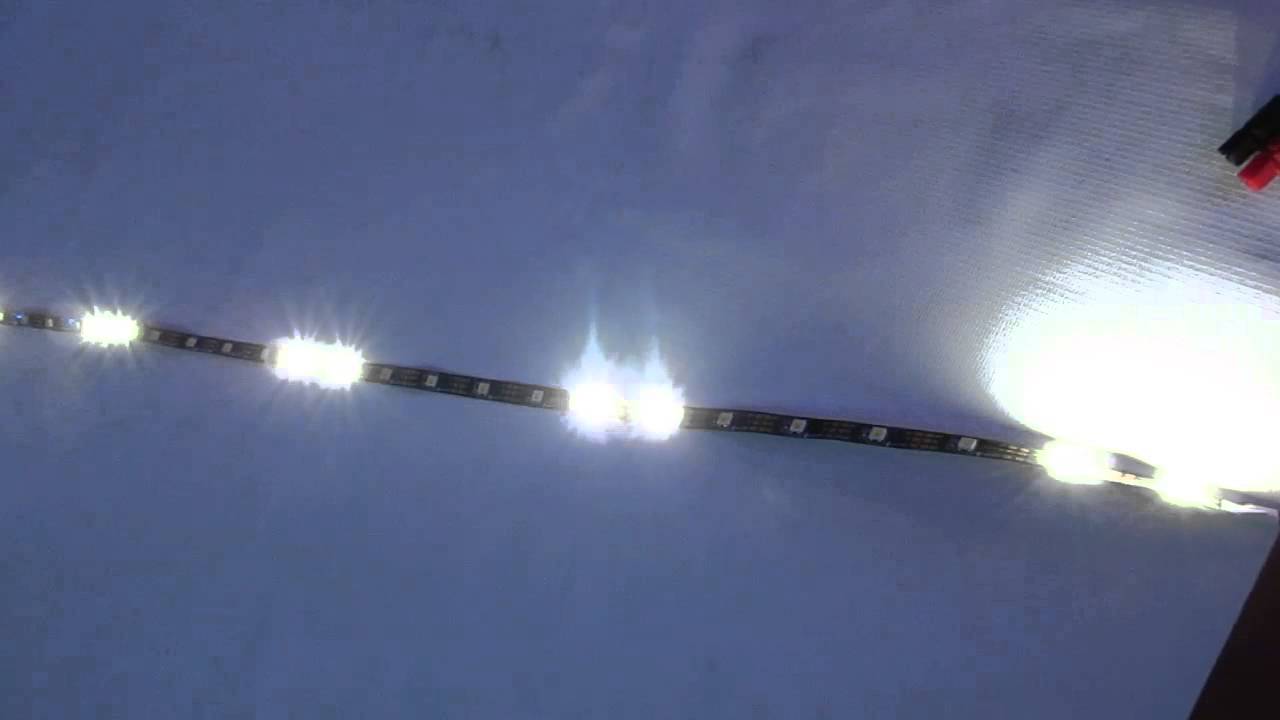

DC5V apa104 144led/m warm white
Автор: Jelena zhao
Загружено: 2015-05-10
Просмотров: 207
Описание:
Voltage: DC5v
LED Qty per meter:144pcs
Power per meter: 43.2w
Gray level: 256
Pixel：144
Meas.: 5000*12*3 mm
Packaging: 5m/roll
IC: APA104 (LED built-in IC), 1LED can be cut and connect.
Color available: warm white/ natural white/ pure white
IP rank: IP20 non waterproof ; IP65/IP67/IP68 waterproof
Available IC: WS2801, WS2811, WS2812, APA102, APA104, LPD8806,LPD6803,UCS1903 etc, with 30/32/48/60/96/144 LED per meter
Control Principle: 1pcs IC control 1pcs LED form a Loop (a group), the Controller control by control IC for controlling the inside of FPCB circuit, thereby controlling LED lights different effect change; such as RGB seven colors gradual change , single color gradual change, jumping change, Fading, flashing, strobing, color chasing, single chase from start to finish, running water, simulated lightning; this change in light of the effect is not limited to the current controller built-in 94 kinds of effect, according to customer needs, can programmable by customers; it can be arrangeed in the form of screen display, test, letters, pictures, animations etc.
