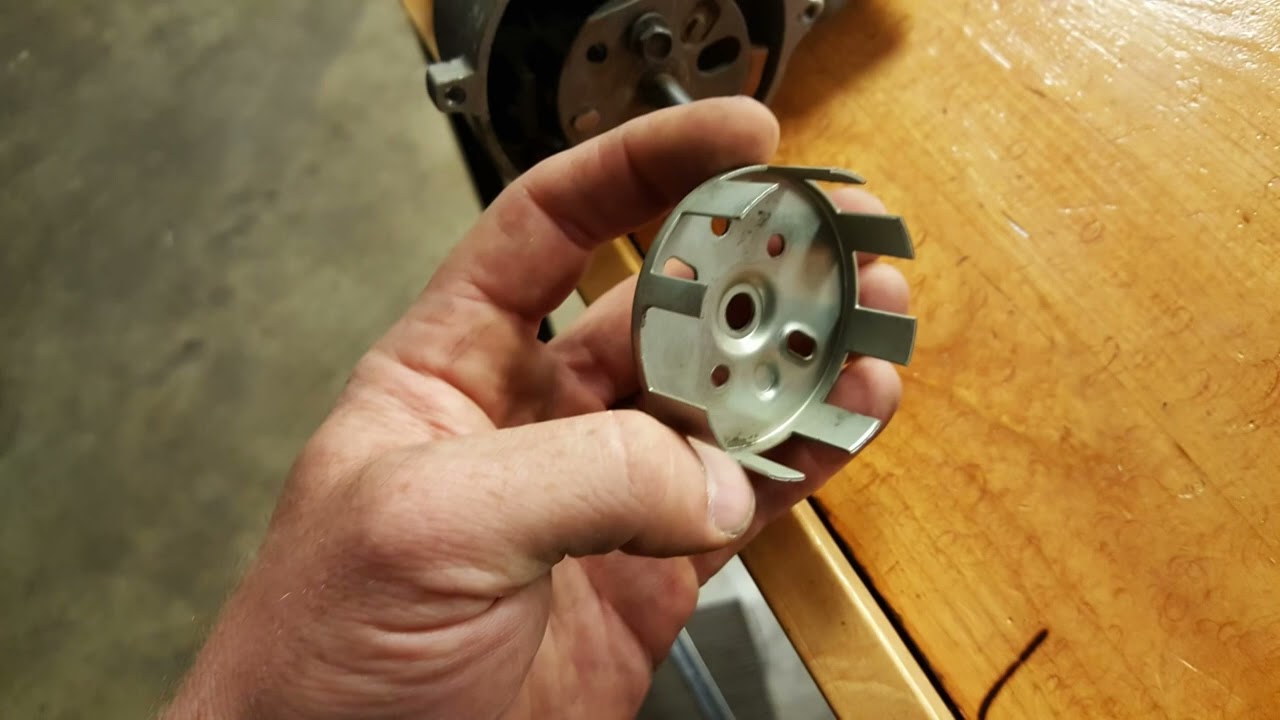

Ford EEC IV Distributor Pick-up or Faulty Ignition Module - Part 2

Описание: In this part 2 of 2 series, I will be reviewing the captures taken from the old distributor on the smartboard with my class. Then we install the new distributor, briefly show the waveforms live, then return to the classroom with the good captures and compare them to the bad. To join my classes online, sign up for ScannerDanner Premium https://www.scannerdanner.com/join-sc... There is a 14 day free trial.

Engine Performance Diagnostics chapter 22 (available at www.scannerdanner.com)

Symptoms
#2 cylinder misfire
intermittent misfiring from other cylinders
run okay at WOT and idle
no misfiring with Spout connector unplugged

Fix
replace faulty distributor pick-up assembly

Tests shown
how to verify weak spark with an in-line spark tester
how to test the PIP and SPOUT signals with a lab scope
how to test coil primary current to verify a dwell time problem
