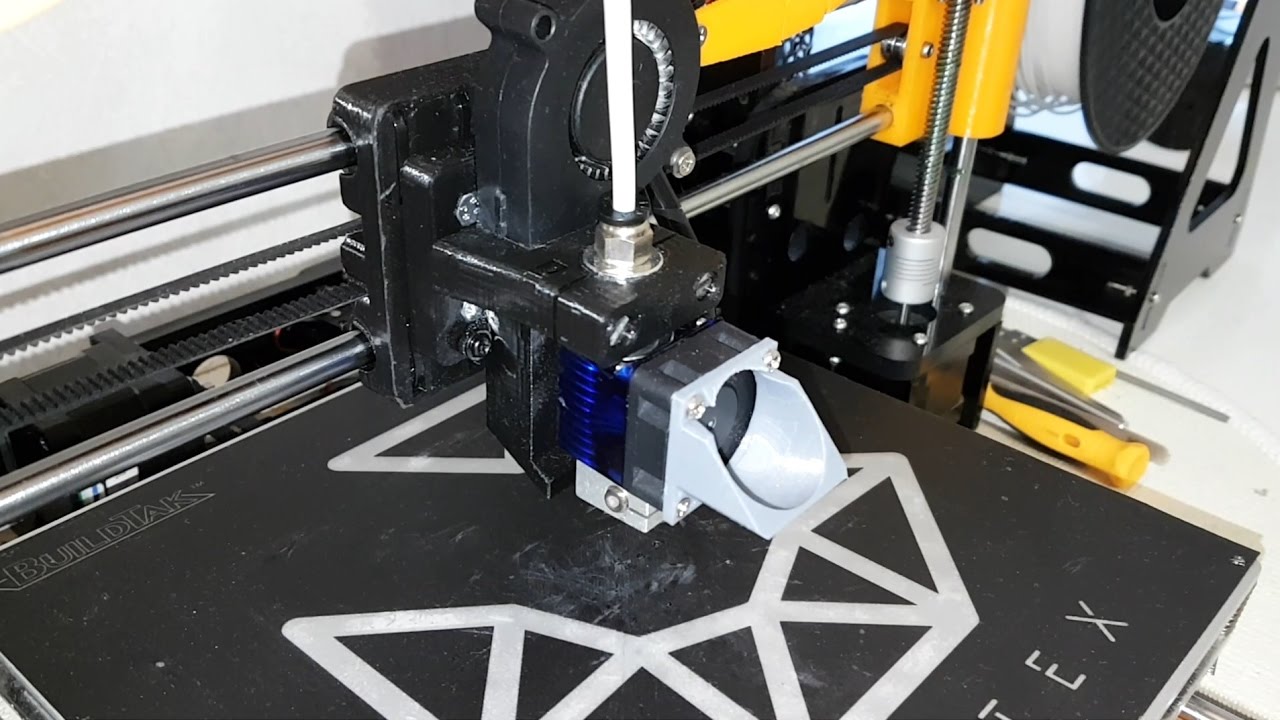

Anet A8 3D printer upgrade E3D V6 bowden! Part 3

Описание: Part 3 video and biggest upgrade so far! Look below for more info!
This upgrade will give you more speed, better printing quality, less noise, easier way to change filament and longer life to your belts and bearing due to less weight on X carriage. Enjoy! For firmware updates and G code changes for this update check my other videos.
If you want to purchase this 3D printer here is link:

Grab one A8 for only 99.99USD with coupon: GBA811 (50pcs only)

Anet A8 EU plug: https://goo.gl/kCzYvN coupon EUA8JK
Anet A8 US plug: https://goo.gl/34WWUX coupon EUA8JK

E3D V6 Hotend upgrade https://goo.gl/xbjjL5

GearBest.com -- https://goo.gl/pqKf6h
Banggood.com -- https://goo.gl/9CpYMJ
Aliexpress.com -- https://goo.gl/C8ndaT

3D printers parts and supplies https://goo.gl/NXVL7M

Cheap filaments
PLA filament https://goo.gl/D9jY9v
ABS Filament https://goo.gl/DBL1ok
Flexible filament -- https://goo.gl/1DMTJf

Premium/special quality filaments
APRINTAPRO shop https://goo.gl/sgXkAW

PrintaFix adhesion SPRAY https://goo.gl/Fr9tmU

Heat bed mosfet module -- https://goo.gl/91i7bQ

3D printing surface:
Sticker: https://goo.gl/WTmmiM
Glass: https://goo.gl/3GqP6Z
BueTape: https://goo.gl/7vQMYp

Switch for PSU https://goo.gl/sKzzkg

Rubber Timing Belt https://goo.gl/3xtQPv

SCS8UU-8mm-Linear-Ball-Bearing https://goo.gl/88pgGV

Insulation material: https://goo.gl/5Qbtve

Micro SD To SD Card Extension Cable https://goo.gl/zgKzrz

BIG THANKS TO ''Tech2C'' who made this V6 X-carriage mount!!! YOU ARE KING! :)))
Check his channel here:
   / @tech2c


All links to upgrades, parts and G codes are down below!
E3Dv6 Anet A8
http://www.thingiverse.com/thing:1632847

Just X-carrige! Take just one part (X-carrige)
http://www.thingiverse.com/thing:1196...

MK8 motor mount for bowden on Anet A8
https://www.thingiverse.com/thing:203...

E3D v6 Fan Duct
http://www.thingiverse.com/thing:547325

Anet A8 X-Idler Mounts If need it
http://www.thingiverse.com/thing:1919544

SpoolHolder ANET A8
http://www.thingiverse.com/thing:1624641


.......................CODES..............................

Start G codes

G21 ;metric values
G90 ;absolute positioning
M107 ;start with the fan off
G28 X0 Y0 ;move X/Y to min endstops
G28 X-16 Y-26 E3000
G28 Z0 ;move Z to min endstops
G1 Z15.0 F(travel_speed) ;move the platform down 15mm
G92 E0 ;zero the extruded length
G1 F200 E10 ;extrude 3mm of feed stock
G92 E0 ;zero the extruded length again
G1 F(travel_speed)
M117 Printing...


End code

M104 S0 ;extruder heater off
M140 S0 ;heated bed heater off (if you have it)
G91 ;relative positioning
G1 E-1 F300 ;retract the filament a bit before lifting the nozzle, to release some of the pressure
G1 Z+0.5 E-5 X-20 Y-20 F(travel_speed) ;move Z up a bit and retract filament even more
G28 X0 Y0 ;move X/Y to min endstops, so the head is out of the way
M84 ;steppers off
G90 ;absolute positioning

// Travel limits after homing
#define X_MAX_POS 220
#define X_MIN_POS -28
#define Y_MAX_POS 220
#define Y_MIN_POS -12
#define Z_MAX_POS 230
#define Z_MIN_POS 0

Please like and subscribe to my channel to help me making more videos.
Thank you so much for your support.
Best Regards
Nexi
