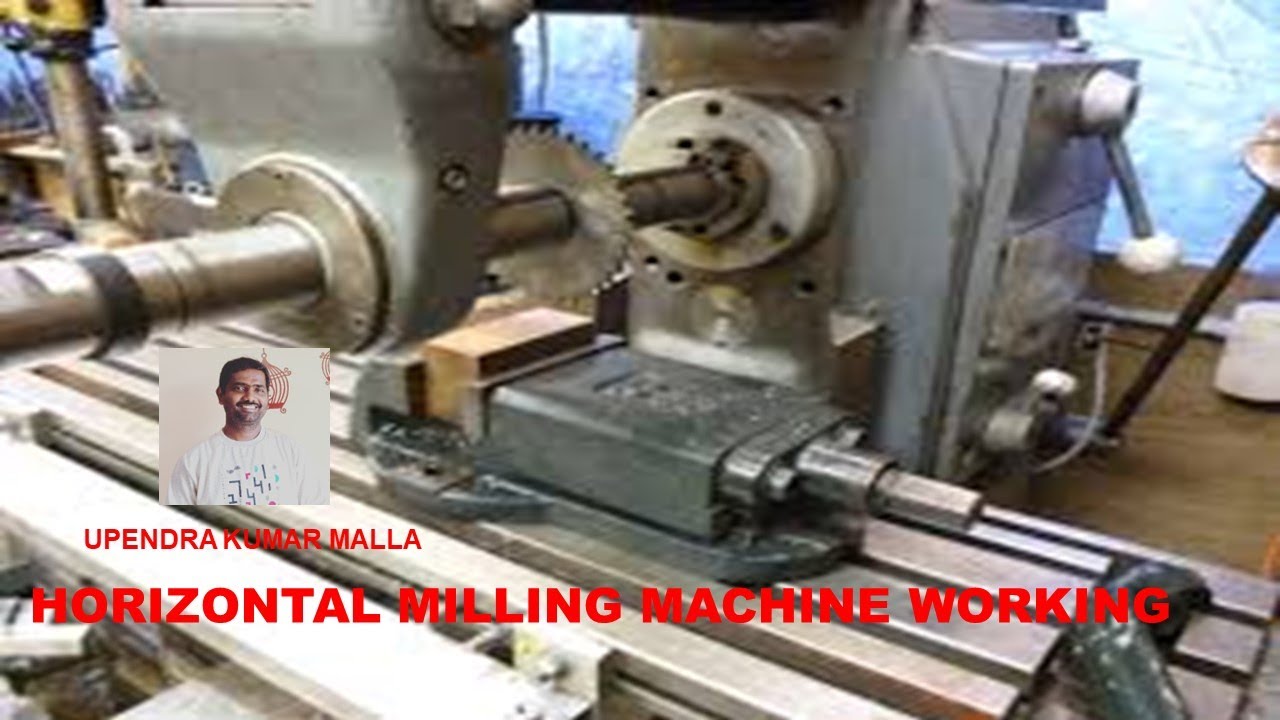

A horizontal milling machine is a type of milling machine where the spindle axis is horizontally oriented. It is commonly used for various machining operations, including milling, facing, drilling, and boring. The working principle of a horizontal milling machine involves the following steps:

Workpiece setup: The workpiece, which can be a piece of metal or other material, is securely clamped onto the worktable or workholding device of the milling machine. The workpiece should be properly aligned and positioned based on the desired machining operation.

Tool selection and setup: The appropriate cutting tool is selected based on the desired machining operation and the material of the workpiece. The cutting tool, typically a rotating end mill or face mill, is mounted into the horizontal spindle of the milling machine. The tool is inserted into the spindle collet or chuck and tightened securely.

Setting the spindle speed and feed rate: The rotational speed of the spindle and the feed rate at which the worktable or spindle moves are set based on the material being machined, the type of cutting tool, and the desired surface finish and accuracy.

Positioning the worktable and tool: The horizontal milling machine has three axes of movement: X-axis (longitudinal movement of the table), Y-axis (cross movement of the table), and Z-axis (vertical movement of the spindle). The worktable and tool are positioned using the handwheels or automated controls to align the cutting tool with the desired location on the workpiece.

Starting the machining operation: Once the workpiece and tool are properly positioned, the machining operation begins. The spindle is activated, and the cutting tool starts rotating at the predetermined speed. The worktable and/or spindle are moved in the desired directions using the feed handles or automated controls to remove material from the workpiece.

Machining process: As the cutting tool comes into contact with the workpiece, material is removed through cutting or milling action. The tool's rotational motion combined with the linear movement of the worktable or spindle allows for precise cutting, facing, drilling, or boring operations. The chips or swarf produced during the machining process are evacuated from the work area using chip guards or coolant systems.

Monitoring and adjustments: Throughout the machining process, the operator monitors the cutting operation and makes any necessary adjustments to ensure the desired dimensions, surface finish, and accuracy of the machined part. This may involve adjusting the feed rate, spindle speed, or making changes to the tool path.

Horizontal milling machines offer advantages such as versatility, stability, and the ability to handle large workpieces. They are widely used in industries such as manufacturing, automotive, aerospace, and heavy machinery for a wide range of machining operations.
