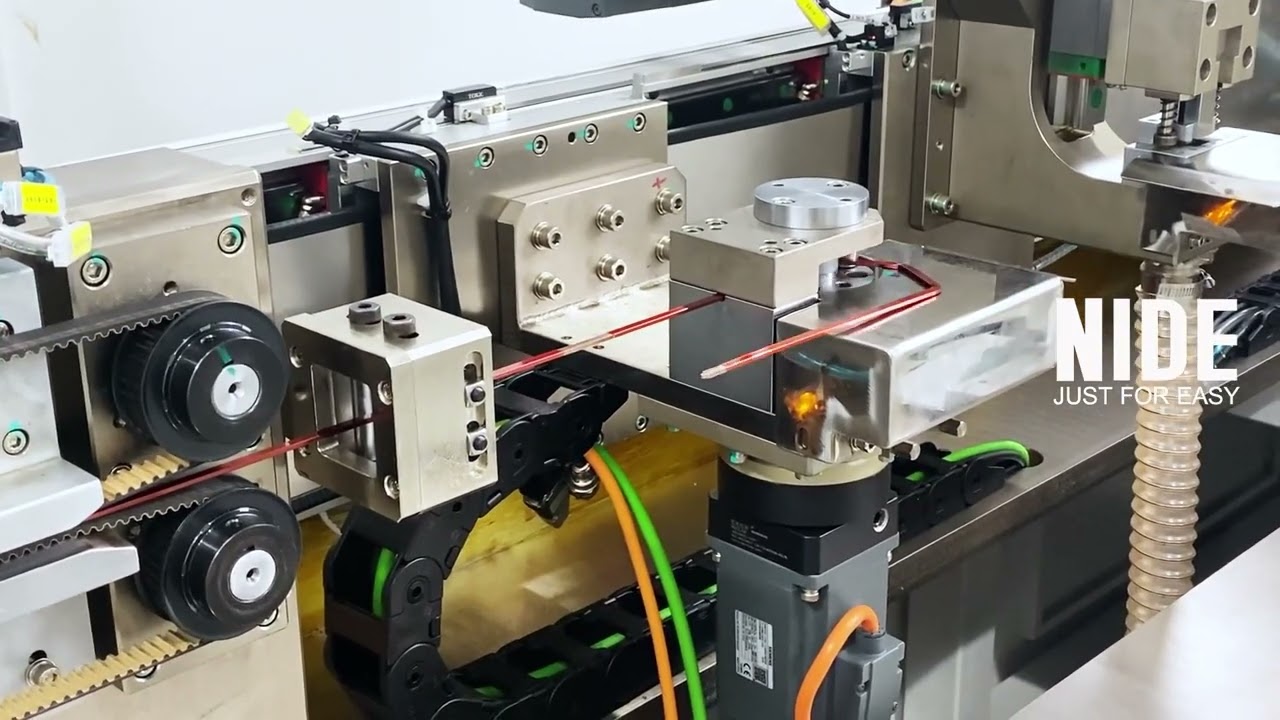

Automatic hair pin forming machine| Hairpin technology stator manufacturing solution

Описание: Automatic hair pin forming machine-Hairpin technology stator manufacturing solution

The main function of the hairpin forming machine is to remove the paint, bend and form the flat copper wire, and finally fold it into a fixed hairpin shape. It is one of the most critical equipment in the entire hairpin motor stator assembly line.

Since the stator copper wire winding of the flat wire motor is a flat thick copper wire, it cannot be formed by winding the stator wire package like round copper wire, and must be processed one by one by the forming machine. After the hairpin is formed, the hairpin wires are inserted into the stator core in groups, and finally assembled into the finished motor stator through equipment such as flaring, twisting, welding and varnishing.

Hairpin technical solution
The technical process of the hairpin forming machine is mainly divided into unwinding, peeling, fixed length cutting and hairpin forming. The unwinding of the flat copper wire is divided into active unwinding and passive unwinding, and a certain tension needs to be guaranteed to straighten the copper wire. The forming of different wire lengths requires shutdown and switching.

#motor #manufacturing #hairpins #hairpinbends #nidetech #nidegroup
-----------------------------------------------------------------------------------------
NIDE Group is focus on providing one-stop solution to motor manufacturing.
Three business divisions:
I. Motor manufacturing machines
II. Motor components
III. Technical consulting and turn-key service
