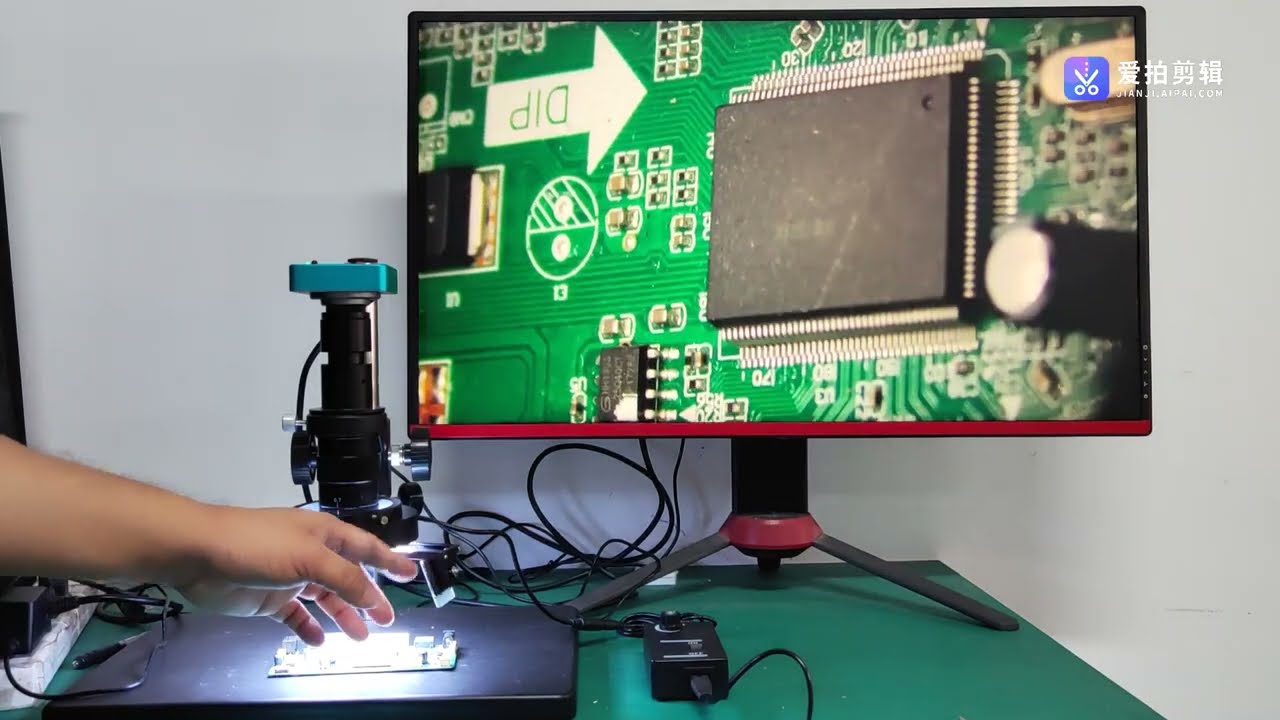

2024 Lapsun 200X 2D & 3D Parfocal Zoom Integrated Industry Camera Microscope Set For Soldering
Автор: AK Wang
Загружено: 2024-09-24
Просмотров: 658
Описание:
Hello, here is the link to buy:
https://www.lapsun.com/2024-3d-2d-par...
https://www.aliexpress.com/item/10050...
https://www.ebay.co.uk/itm/146056840129
https://www.ebay.com/itm/315788472435
Camera Specification:
Image Sensor : SONY IMX385 Colour CMOS
Menu : Fully digital UI design
Method of Operation : Mouse
Lens interface : C/CS-type
Power DC : DC12V
Output method : HDMI
White Balance : Auto / Manual / One-push control
Exposure : Auto / Manual
Display Frame rate : 1080P@60fps
Scanning method : Line by line scanning
Shutter Speed : 1/50s(1/60s)~1/10000s
Operating Temperature : 0℃~50℃
Digital Magnification / Zoom : Support
Saving function : Support U Disk Saving Photos and Videos
3D Lens specification:
Working distance:10CM
Parfocal 2D & 3D Mode
Field of view :
2D model: 22.5mmX12.8mm - 3.8mmX2mm
3D model: 45mmX15mm - 7.2mmX4mm
zoom c-mount Lens 0.5X C-mount adapter
Objective Magnification Power by 0.7 - 5X
ALL Optical mag: 0.35X- 2.5X(about 20 - 200X on 21 inch the display)
Metal Stand:
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm
Floor size: 380X260X20mm
Frame diameter: 50mm,
The frame under the movable range of 46mm
Net Weight: 2.3kg
