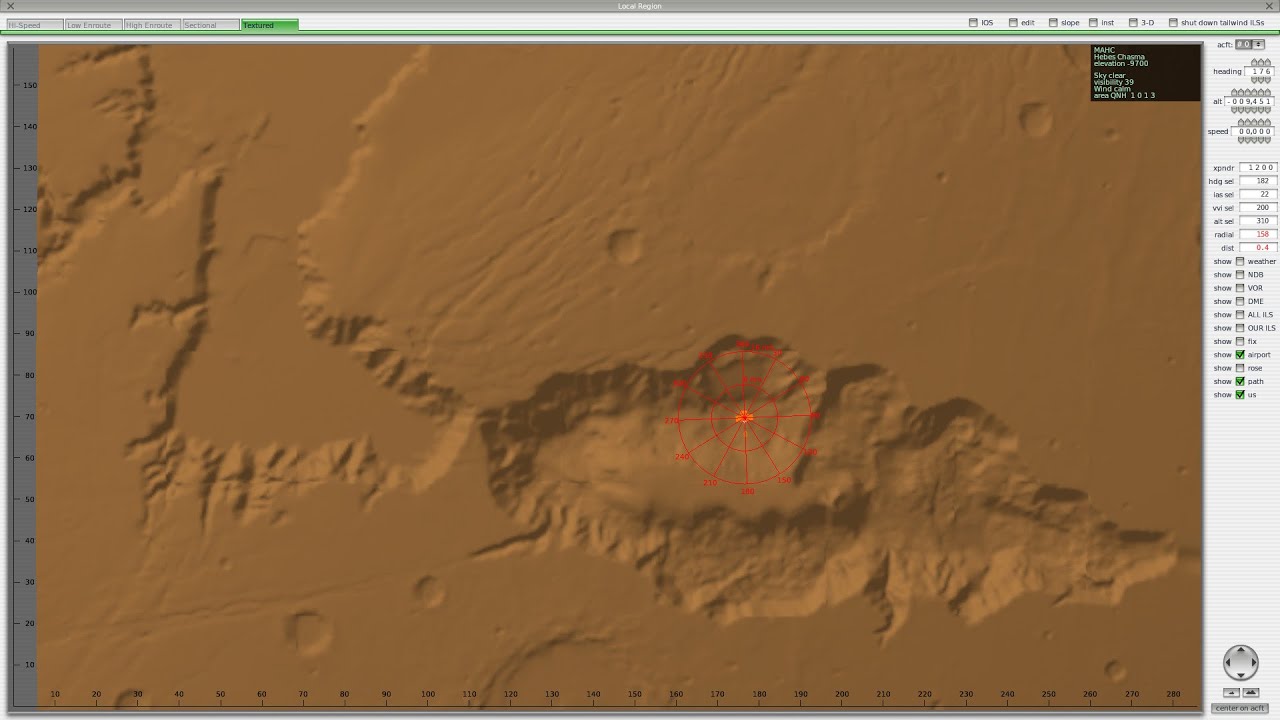

FlyOnMars -- VFR Flight Simulation: Hebes Chasma, -9700 MOLA

Описание: X-Plane.org for this legacy sim (version 9.70, Mars component add-ons)

This is a huge canyon a bit north of the Valles Marineris I've spent little time exploring. There's also an area west of here with some significant relief.

Please see the high-resolution images displayed via Google Earth Desktop client in Mars mode, and the USGS MC-1 thorugh MC-30 2014 PDF maps wghich are linked to, but not shown in thumbnail at https://planetarynames.wr.usgs.gov/Pa...
----

Rough numbers I'm working with for this simulated concept drone/piloted concept airplane for exploring the Mars physics/MOLA data with:

KYTON 4EX WANDERER -- A 300LB USEFUL-LOAD SUBSONIC FIXED-WING CONCEPT FOR THE MARS ENVIRONMENT -- UAV OR THEORETICAL CREW-CAPABLE.


Specifications:

Empty mass: 850lbs (tailwheel) / 900lbs (tri-gear) or more, whatever you wish to simulate
Design Gross: 1150lbs (tailwheel) / 1200lbs (tri-gear)
Design useful Load: 300lbs (UAV or theoretical crew-capable)
Design Limit +/- 6.0G (tailwheel), +/- 5.7G (tri-gear) [+/- 2.25 Earth-G (tailwheel), +/- 2.14 Earth-G (tri-gear)]
Airfoil: NACA 20016 (16% thick)
Washout: 0.5 degrees
Dihedral: 1.2 degrees
Span: 69.5'
Average chord: 25.0'
Aspect Ratio: 2.78:1
Wing Loading: 1.51 lbs/ft^2
Propulsion: Electric, 125hp peak
Prop: 5-blade, constant speed, 14.5' dia
Landing Gear: Fixed, tailwheel or tricycle
Steering: Tailwheel/nosewheel via rudder link
Battery: 50 kWH, internal
Battery: 37.5 kWH, external drop (125lbs) (up to 3)
Flapperons: 0-17 degrees
Spoilers: 0-40 degrees

Control (realtime UAV, autonomous UAV, or theoretical crew-capable):
Undefined

Performance (1150lbs):
KIAS = Knots Indicated Airspeed at 0' MOLA

Vso: 65 KIAS
Vs1: 73 KIAS
Vx: 115 KIAS
Vy: 150 KIAS
Vfe: 140 KIAS
Vno: 265 KIAS
Vne: 330 KIAS
