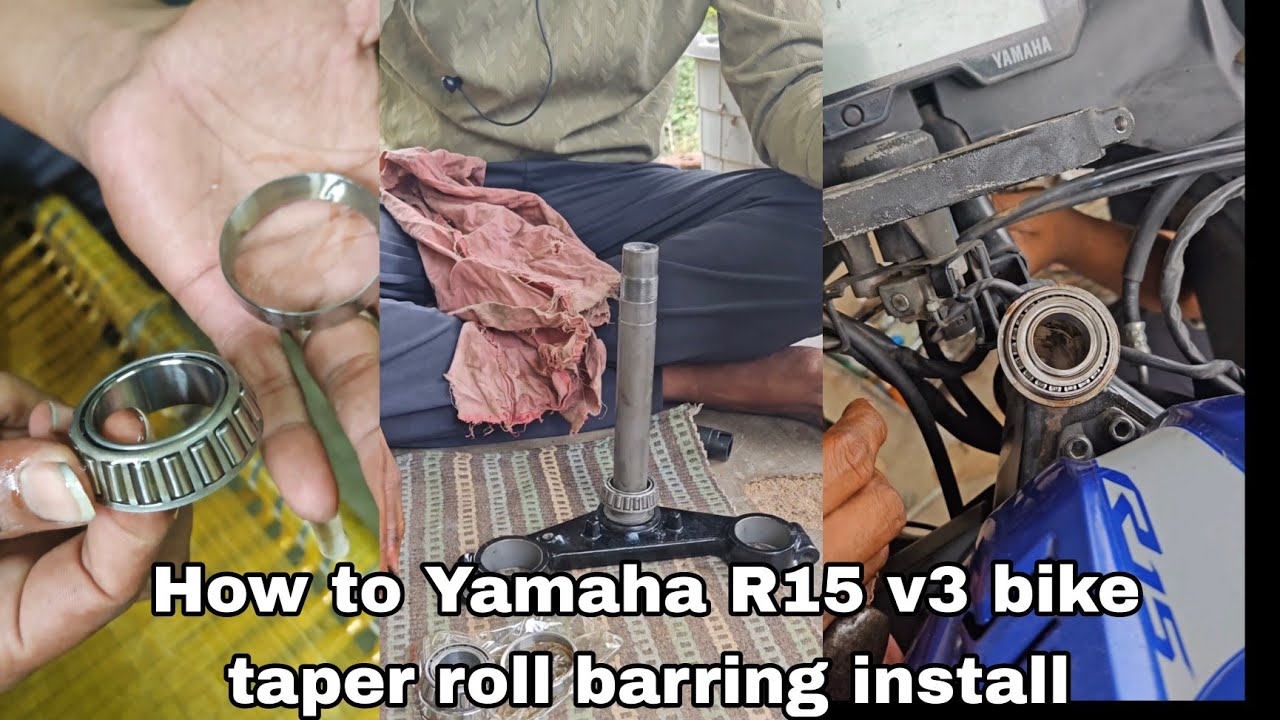

yamaha R15 v3 bike cone set problem. how to taper roll barring install

Описание: Contact number :7010620112


To change the cone set (also known as the steering head bearing) on a Yamaha R15 V3, follow these general steps:

Tools You’ll Need:

Socket wrench set

Screwdrivers (flathead and Philips)

Allen wrenches

Hammer

Bearing puller (if necessary)

Grease for bearings

Torque wrench (for reassembly)


Steps to Change the Cone Set (Steering Head Bearing):

1. Preparation:

Place the bike on a center stand or use a lift to ensure the bike is stable.

Disconnect the battery to avoid any electrical issues during the process.



2. Remove the Front Fairing and Headlight:

Unscrew and remove the front fairing and headlight assembly to access the headstock.

Detach the headlight connectors to fully remove the fairing.



3. Loosen and Remove the Handlebar:

Remove the bolts holding the handlebar clamps in place using a socket wrench.

Carefully lift the handlebar off, ensuring the throttle and brake cables are not strained.



4. Loosen the Triple Clamp Bolts:

Use a socket wrench to loosen the bolts securing the top triple clamp to the steering stem.

Remove the top triple clamp completely.



5. Remove the Forks:

Unscrew the bolts securing the front forks to the triple clamp.

Once the bolts are removed, carefully slide the forks out from the steering stem.



6. Remove the Steering Stem Nut:

Using a socket wrench, remove the central nut holding the steering stem in place.



7. Take Out the Cone Set:

With the steering stem nut removed, you can now pull out the cone set (bearings) from the headstock.

If the bearings are difficult to remove, gently tap the stem from the bottom with a hammer to dislodge the bearings. A bearing puller can help if needed.



8. Clean the Area:

Clean the inside of the headstock and the steering stem with a clean cloth to remove any debris or old grease.



9. Install the New Cone Set:

Apply a generous amount of grease to the new bearings.

Carefully place the new bearings (cone set) onto the steering stem. Make sure the bearings sit properly and are aligned.



10. Reassemble the Bike:

Reverse the disassembly steps to reassemble the bike. Start by placing the forks back into the triple clamp, followed by securing the top clamp and tightening the bolts to the recommended torque settings.

Reinstall the handlebar and ensure the brake lines and throttle cables are properly routed.

Reattach the front fairing and headlight assembly.



11. Test the Steering:

Before riding, ensure the steering moves smoothly without any resistance or play.

If there is any play in the steering, check the bearing installation and ensure everything is torqued properly.




Notes:

Be sure to consult the Yamaha R15 V3 service manual for specific torque specifications and detailed instructions for your model.

If you're not confident in performing this repair yourself, consider seeking help from a professional mechanic.


This is a general guideline, and some variations might exist depending on the year or model version of the Yamaha R15 V3. Always prioritize safety when working on the bike.
