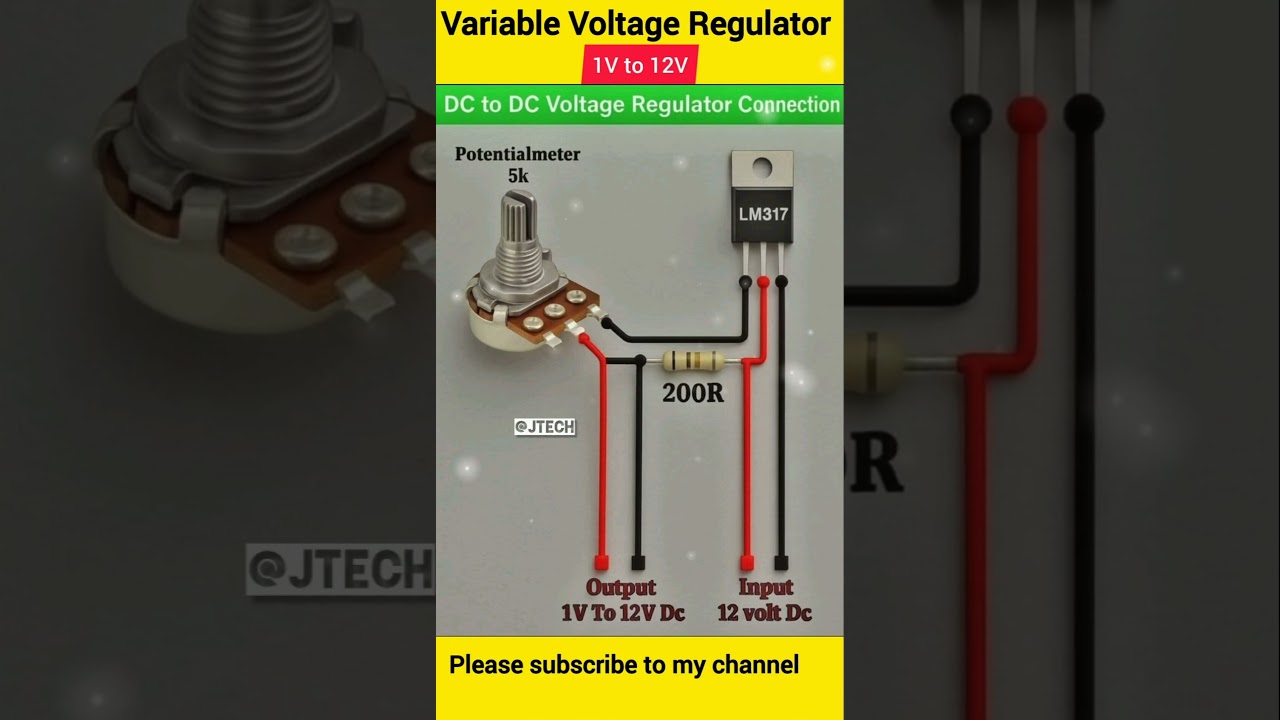

Variable Voltage Regulator 1V to 12V💻
Автор: J TECH
Загружено: 2025-12-28
Просмотров: 2359
Описание:
#VoltageRegulator #LM317 #VariablePowerSupply #ElectronicsProject #AdjustableVoltage #DIYElectronics #ElectronicsHobby #CircuitDesign #TechShorts #Shorts
This circuit allows you to adjust DC output voltage from 1V up to 12V using a potentiometer. Perfect for powering small electronic projects, testing components, or creating your own adjustable power supply. Using components like the LM317 voltage regulator, capacitor filter, and potentiometer, you get smooth and stable output control.
✔️ Easy to build
✔️ Adjustable voltage range 1V–12V
✔️ Ideal for electronics beginners & hobbyists
🔧 Components Used:
• LM317 Voltage Regulator
• Potentiometer (5k/10k)
• Input DC 12V
• Capacitors & Protection Diode
⚙️ Output: 1V - 12V DC (adjustable)
💡 Use this setup for breadboard or PCB projects!
