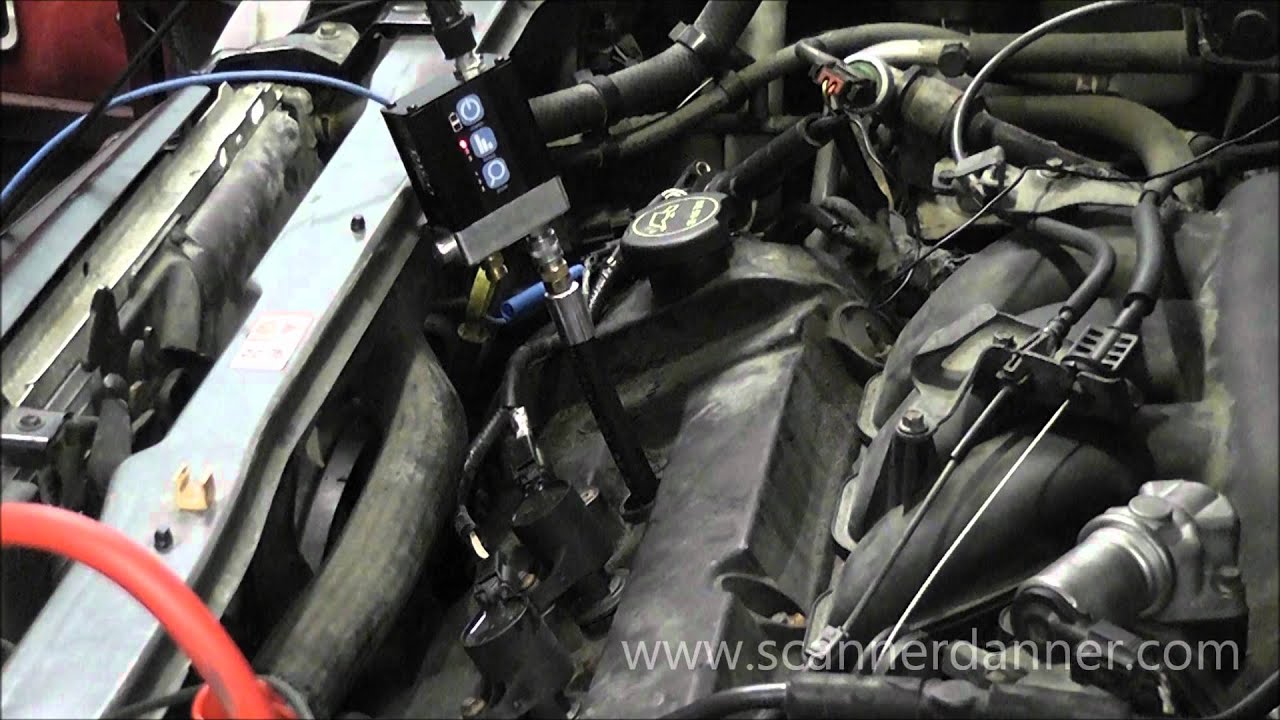

2002 Ford Escape 3.0 Misfire - ignition coils connected wrong

Описание: This vehicle came in with a long history, a severe misfire complaint that two shops couldn’t fix, and lots of parts changing along the way. Testing and careful analysis led to a surprising fix. All of the testing methods shown can be applied to any vehicle with a coil-on-plug ignition system.

Engine Performance Diagnostics chapter 1 page 2, 14 - 21

Symptoms
severe misfire
check engine light (P0300)
intermittent backfiring through intake

Fix
correct swapped #4 and #6 ignition coil connectors

Tests shown
how to perform a cylinder balance test (power balance)
using a coil-on-plug adapter with a lab scope for secondary ignition waveforms
analyzing secondary waveform attributes during misfire diagnosis
how to perform a relative compression test
how to use a coil current ramp as a sync trace
setting up a lab scope for various testing methods
how to use an in-cylinder pressure transducer to verify spark timing
how to get a primary ignition waveform (safely)

Tools used
