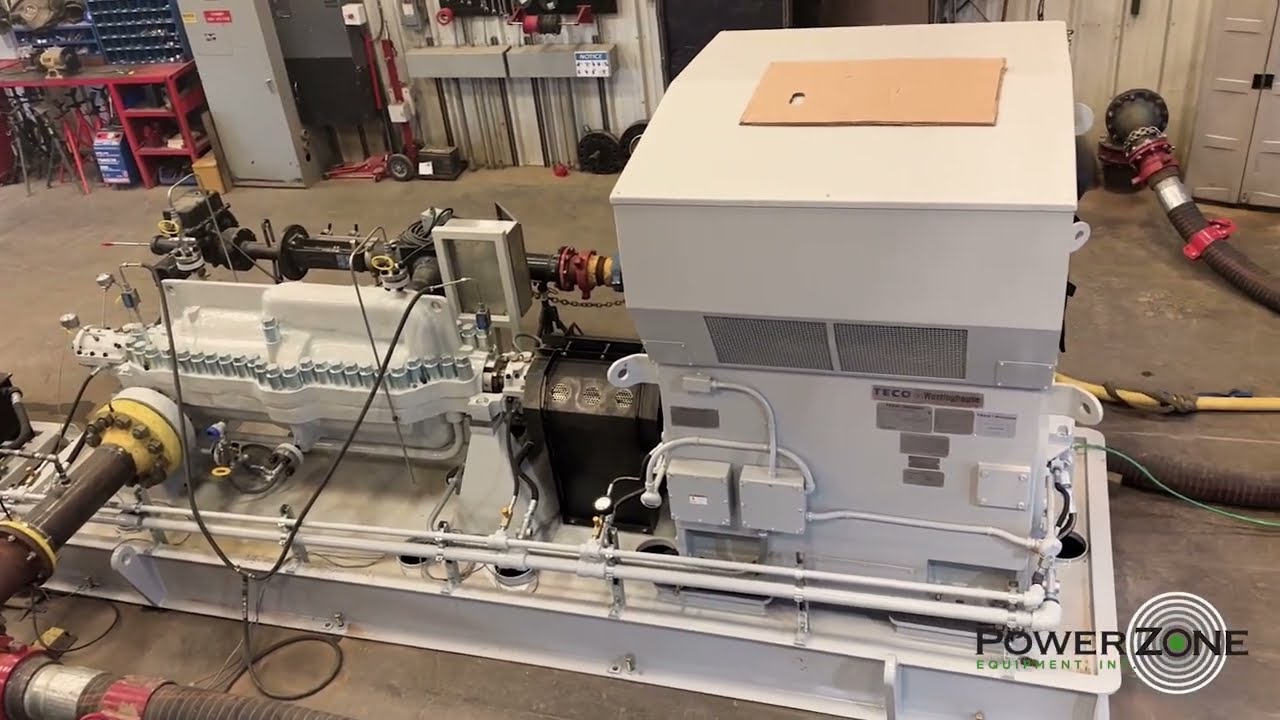

Frac Water Supply Made Easy with Rebuilt and Tested Sulzer Pump Package

Описание: Get an exclusive look at our latest pump packages, meticulously rebuilt and rigorously tested by the PowerZone team. These two powerhouse pump packages, featuring Sulzer Bingham pumps and Teco Westinghouse motors, are engineered to deliver exceptional performance for Frac water supply across step elevation gains.

PUMP FEATURES - Sulzer Bingham 6X8X12.5A
Flow Rate: 2100 GPM
Pressure: 1150 PSI
Power: 1750 BHP
Case Material: Duplex Stainless
Kingsbury Thrust Bearing
Plan 11 Seal Flush
Low Point Drain
High Point Vent
8-stage pump de-staged to 7 stages
Blasted to near-white metal finish
Epoxy primer with a urethane top coat

MOTOR FEATURES - Teco Westinghouse
Enclosures: WPII
Power: 2000 HP
Speed: 3564 RPM
Voltage: 4160 Volt
Service Factor: 1.0 with VFD Compatibility
Couplings: Rexnord Spacer Disc Coupling
3-piece design for compact packaging
Engineered to accommodate high torque loads

SKID FEATURES - Designed and Fabricated by Power Zone Team
Fully Welded Environmental Pan
Leveling Jack Bolts
Anchor Bolt Holes
Grout Pore and Vent Holes
Pedestal Grouting
Machined Motor and Pump Pads
Lifting Eyes
Blasted to near-white metal finish
Epoxy primer with a urethane top coat

AUXILIARY LUBRICATION SKIDS - Designed, Fabricated, and Assembled by Power Zone Team
Electric Oil Pump
35-gallon Oil Reservoir
Level and Temp Gauge on Reservoir
Standalone Skid with Fully Welded Environmental Pan
Oil Cooler
Oil Accumulator
Oil Reservoir Heater
Pressure Transmitters
Flow Meter
Pressure Relief Valve
Blasted to near-white metal finish
Epoxy primer with a urethane top coat

CONTROLS AND INSTRUMENTS
NEMA 3R termination box on the edge of the skid with all instruments wired into it.
Pressure Transmitters (1 suction and 1 discharge)
Pump Bearing RTD's
Pump Vibration Transmitters
Motor Bearing RTD's
Motor Winding RTD's

TESTING
In Power Zone's testing facility, we rigorously assess each package with water of 1.0 SG. This includes a full function test, measuring torque, flow, and pressure at various points on the curve. We also ensure proper instrument calibration and generate performance curves for each pump.

DOCUMENTATION
We supply Installation, Operation, and Maintenance Manuals (IOMs) for major components, along with General Assembly Drawings, Pump Spec Sheets, and Curves, plus Component Data Sheets, ensuring comprehensive support for our customers.

Experience the quality, reliability, and precision engineering that Power Zone Equipment brings to every project. Subscribe now for more updates and industry insights.
