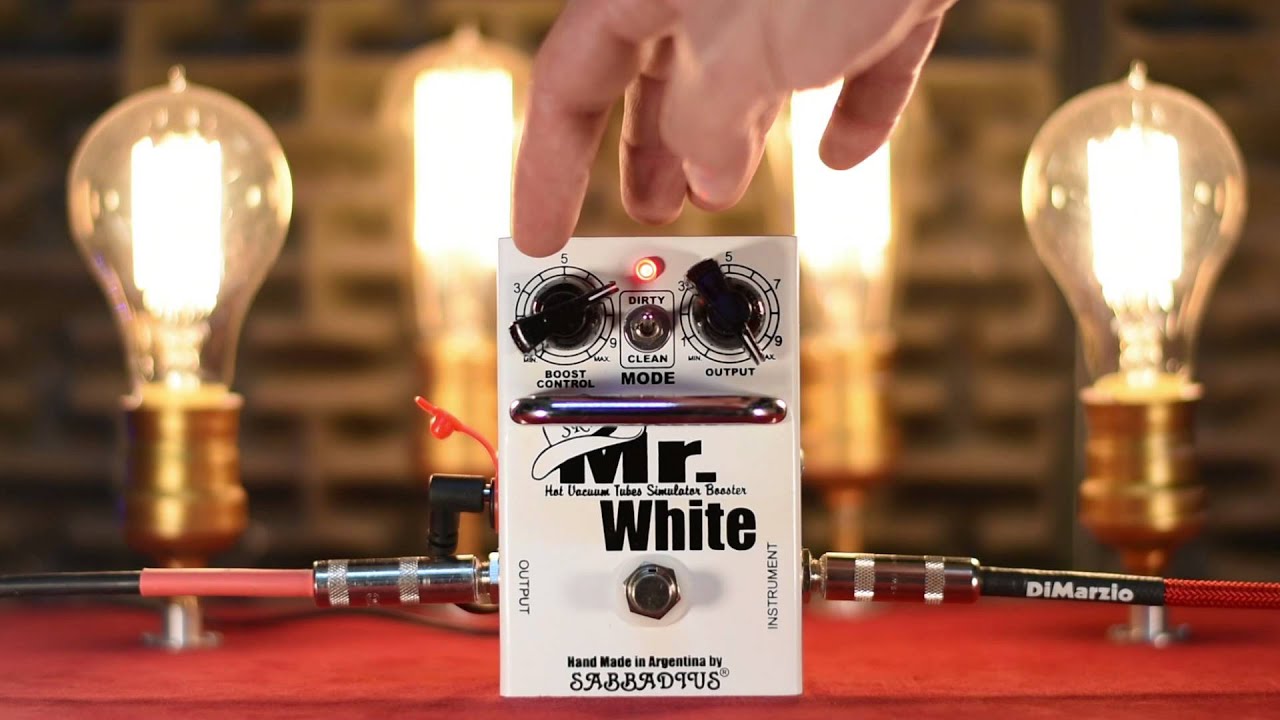

Tommy Katona Sabbadius Mr. White II

Описание: Mr. White "Hot Tube Simulator Booster II" (SRV Clean Sound):
Volume control with a small booster "Crank Up" that simulates the saturation valve stage of the Fender Vibroverb, Dumble, Bassman, Super Reverb.
It is a special pedal for lifting guitar solos or simulating the tone of a valve amplifier with the vacuum tubes to the red and blue.

Stevie Ray Vaughan used a very warm sound and very bright and even mids harmonics on the guitar to be clean and had no effect. On this pedal you can get this tone with no problem and there's no need to put up the gain to achieve that unique sound.

Controls:
Crank Up: is the knob that switches the "Drive" which gives the saturation sound.
Master Output: volume knob or exit of saturation.
Mode: I Hot Tube Simulator Booster (Soft Booster)
Mode II: Mr. White (Hot Booster)
Color: White
Features: 100% True Bypass mechanical footswitch
Power: 9VDC battery or 9 volt NEGATIVE center power supply.
Dimensions:
Length: 120 mm
Width: 80 mm
Height: 35 mm
Approximate weight: 400 grams

Tips and settings:
The toggle switch up/down is made to get the "tube" sound, when the toggle switch is in
Down Position Mode you can get the following :
You have the "Fender Vibroverb" style sound when you turn the "Crank Up" Knob at 5
o´clock and the Output Master at 12 o´clock.
To get the "Super Reverb" style sound you must turn the cranck up knob at 2 o´clock and
the output master at 5 o´clock (all the way up).
The Mr. White pedal is not only a booster, you can use it as a "Buffer" signal path too,
you know when you have a lot of pedals conected, you must use short cables from unit to
unit, so this generate a treble and mid´s loose, so if you turn the Crank Up at position 12
o clock or 11 o´clock and the output master at 5 O clock (all the way up) you can give to
the pedals chain that mids and treble you loose when you are using long cables or a lot of
pedals.
In the UP Mode you can get the following style sound:
If you turn the toggle switch UP MODE and put the cranck Up knob at 12 o´clock and
the master volume at 5 o´ Clock you get the Dumble clean sound.
If you turn the Crack Up knob at 5 o´clock (all the way up) and the Output master at 5
o´clock (all the way up) you get the "Fender Bassman" cranked sound.
In the Up Mode you can control the boost signal using your guitar volume to "clean" or
get a Hot Tube sound turnig the guitar volumen knob all the way up. So thids means that
you can control the Mr white from your guitar volume pot if you ar far away from the
pedal.
You can watch all this settings here:    • SABBADIUS Mr. White "Hot Tube Simulator Bo...
This video has not the Mr. White II togle switch version so this pedal does not have the
Toggle Switch, but is the same circuit and the same sound, follow the instruction that I
explain here and you are going to have all that sounds.
You can get your exclusive sound making your own settings and you can mix this pedal
with a overdrive, distortion, fuzz, etc, to get a ton of sounds
