Algas-SDI patented its first dry electric vaporizer in 1972. Since then we've shipped thousands of vaporizers to over 87 countries. Today Torrexx operates on 6 continents....it stands in tribute to over 40 years of dry electric vaporizer product innovation.

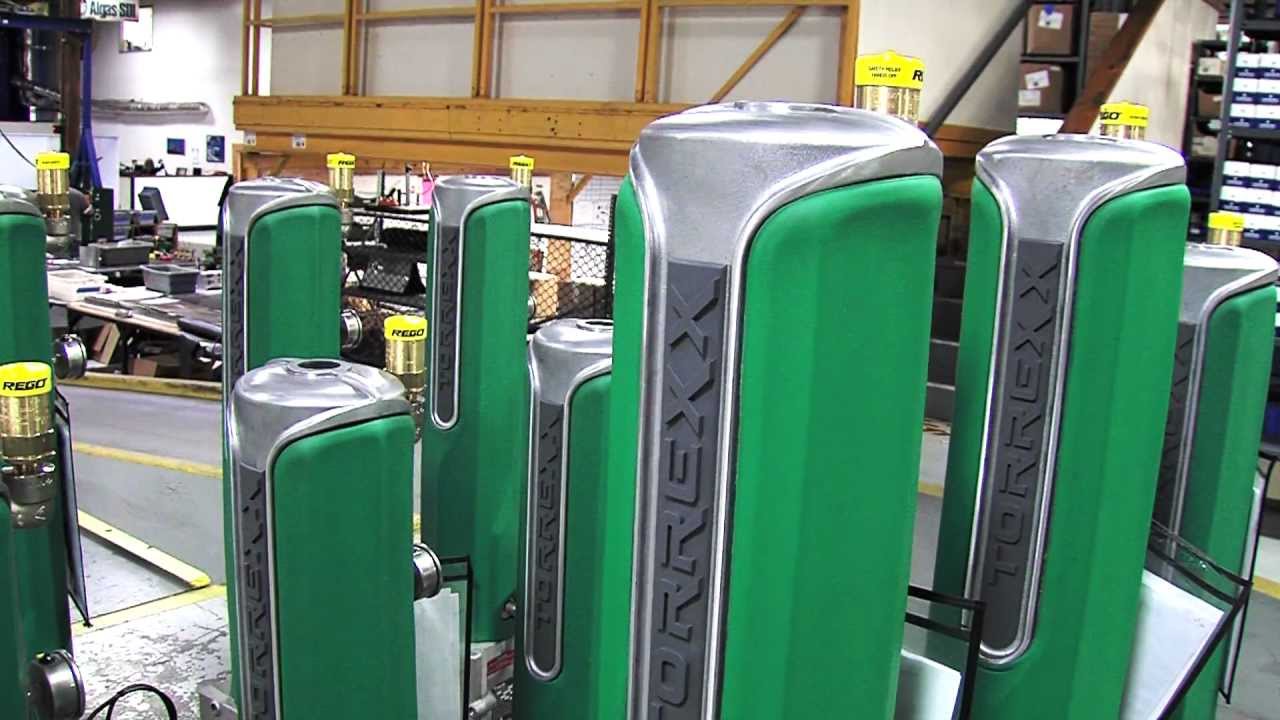

Torrexx is simple, compact and elegant. It fills the application niche where 3-phase power is available and desired for vaporization. Its cast aluminum construction eliminates corrosion, evaporation and the frequent 'shutdowns' typically associated with alternative electric waterbath designs. Few would argue that Torrexx sets the industrial standard for dry electric LPG and NH3 vaporizers.
The standard Torrexx is a single core, dry, electric vaporizer. No start/stop switches or buttons are required or provided. Operation is automatic and simple. When power is applied, the vaporizer is On. From the cold OFF condition to "ready for operation" requires only a few seconds! No competitor can match this performance.
Our heating elements are cast in place within the aluminum core. Two thermocouples, both housed in a common sheath, directly control the normal operation and also provide over-temperature protection. In addition, fusible links designed into the Control System Housing provide an additional layer of over-temperature protection.
A robust 135amp rated contactor provides power to the heating elements. A modular temperature controller regulates the heating process. Operational set points are factory established. However, field adjustments can be performed but ASDI prefers such adjustments be made only by a certified ASDI Technician. Should there ever be a problem with the temperature controller, its modular design allows easy replacement.
In the unlikely event of a "high liquid level occurrence," the unique Liqui-Safe Valve prevents liquid LPG from passing downstream of the vaporizer. The valve provides visual indication of activation. This ensures easy troubleshooting and allows the end-user to have confidence the problem has been eliminated, the Liqui-Safe Valve has been reset and that the vaporizer is functioning properly.
Torrexx is available in all common voltages. It is available in both single core and multi-core configuration. Explosion proof designs are available to meet either Class I, Division I, Group D (per NFPA Pamphlet 70) or, ATEX marked to comply with CE type Zone I applications. Both explosion proof designs allow Torrexx to be installed adjacent to an LPG tank or a building with no minimum separation distance required by Code.
Compact, corrosion-free and sleek Torrexx Vaporizer is an ideal installation at schools, hospitals, clinics, hotels, resorts and other areas where size, simplicity, aesthetics and SAFETY are critical. It's fast start up time also makes it perfect for providing fuel to gensets and small factories.
Go "Green" today! Become a member of our worldwide user group! Torrexx - another innovative solution from Algas-SDI.
