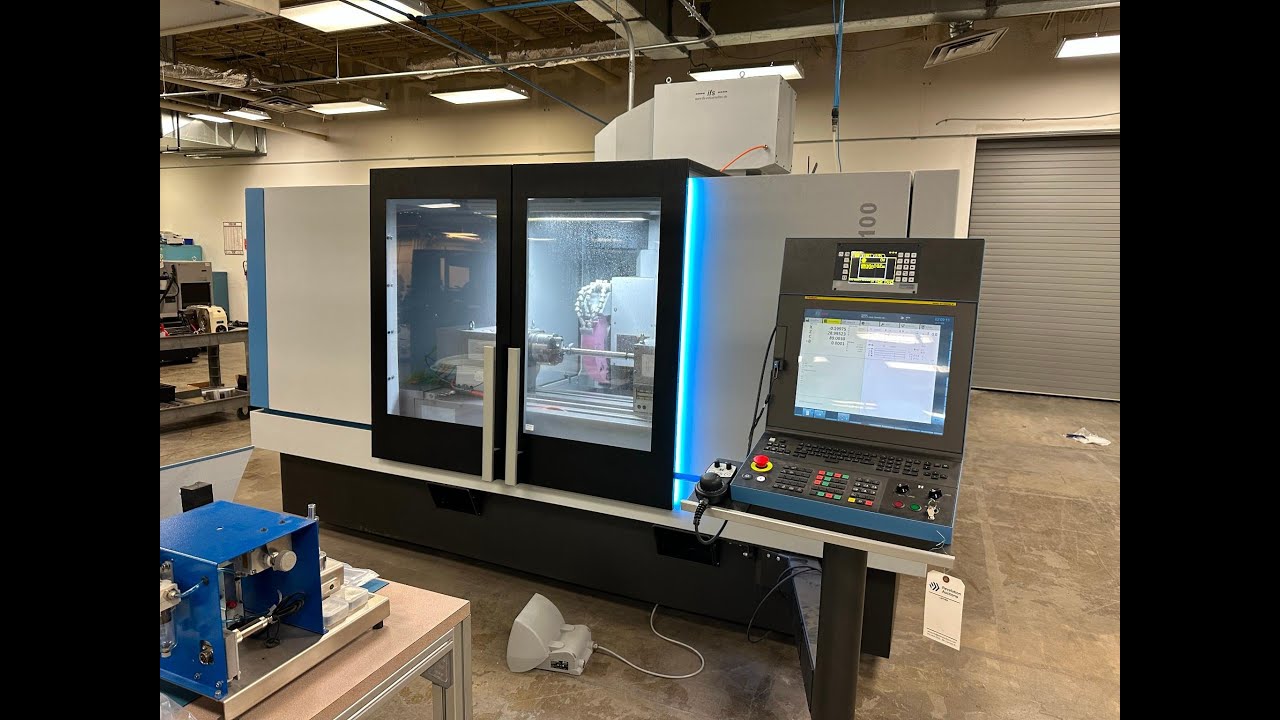

CNC & Grinding Facility Closure Lot 225 - 2021 KELLENBERGER 100 CNC CYLINDRICAL GRINDING MACHINE

Описание: 2021 KELLENBERGER 100 UNIVERSAL CNC CYLINDRICAL GRINDING MACHINE WITH FORM DRESSER-DRESSING DEVICE ON TABLE (PART NUMBER: 8001353), MARPOSS MATCH GRINDING FOR DIAMETER RANGE 05-050 MM (PART NUMBER: 8300050), REINFORCED WORKHEAD DIRECT DRIVE 150 WITH C-AXIS (PART NUMBER: 8001345), NUMERICALLY CONTROLLED B-AXIS DIRECT DRIVE (PART NUMBER: 8001313), OPERATING UNIT FOR TWO HIGH FREQUENCY INTERNAL GRINDING SPINDLES (PART NUMBER: 8000421), UR 1-6-7 WHEELHEAD (PART NUMBER: 8001317) AND ALOT OF ACCESSORIES * TOOLS, TOOLING, AND WORKBENCH INCLUDED
SN: 671179
SPECIFICATIONS
STRUCTURAL LENGTH: 600 / 1000 MM | 23 31/50" / 39 3/8" |
TIP HEIGHT: 200 MM | 7 7/8" ||
MAX. WORKPIECE LENGTH (BETWEEN CENTERS): 600 / 1000 MM | 23 31/50" / 39 3/8" |
MAX. GRINDING LENGTH : 600 / 1000 MM | 23 31/50" / 39 3/8" (STANDARD: 399MM) |
MAX. WORKPIECE DIAMETER: 399 MM | 15 45/64" |
MAX. WORKPIECE WEIGHT (BETWEEN CENTERS) | 100 KG (STANDARD) / 150 KG (OPTIONAL) | 220 LB / 330 LB |
TABLE (Z-AXIS)
STRUCTURAL LENGTH: 750 / 1150 MM | 29 66/125" / 45 7/25" |
MAX. TRAVEL DISTANCE: 750 / 1150 MM | 29 66/125" / 45 7/25" |
MAX. SPEED: 20 M/MIN | 787 IPM |
MAX. RESOLUTION: 0.1 ΜM | 0.0000039 INCH |
GRINDING SLIDE (X-AXIS)
TRAVEL DISTANCE MAX: 365 MM | 14 3/8" |
MAX. SPEED: 10 M/MIN | 394 IPM |
MAX. RESOLUTION: 0.1 ΜM | 0.0000039 INCH |
VERSIONS: INTERMEDIATE PIECE / B-AXIS | INTERMEDIATE PIECE / B-AXIS |
RESOLUTION (B-AXIS): 0.1 ΜM / 0.00001° | 0.0000039 INCH / 0.00001° |
2. SPINDLE & HEADSTOCK SPECIFICATIONS
WORKHEAD SPINDLE 100
SPINDLE SPEEDS (INFINITELY VARIABLE): 1 – 1,000 RPM
HOLDING TAPER INTERNAL: MK 5
REDUCTION SLEEVE: MK 5 / MK 4
SHORT TAPER EXTERNAL: ISO 702-1, SIZE 5
PERMITTED LOAD CAPACITY (CHUCKED WORK): 100 NM (73.75 FT-LB) / MAX 80 KG (176 LB)
GUARANTEED CONCENTRICITY (CHUCKED WORK): STANDARD ≤ 0.4 ΜM (≤ 0.000016"); OPTIONAL ≤ 0.2 ΜM (≤ 0.000008")
WORKPIECE WEIGHT (BETWEEN CENTERS): 100 KG (220 LB)
MICRO CORRECTOR: ± 1'
GRINDING HEAD DRIVE DATA
POWER (UNIVERSAL): 11.5 KW (15.4 HP)
POWER (DIAGONAL/TANDEM): 2 X 11.5 KW (2 X 15.4 HP)
SPINDLE SPEEDS: 800 – 3,800 RPM
3. TAILSTOCK SPECIFICATIONS
TAILSTOCK 100
HOLDING TAPER: MK 4
STROKE OF SLEEVE: 49 MM (APPROX 2")
MICRO CORRECTOR RANGE (Ø): ± 60 ΜM (± 0.0024")
WORKPIECE WEIGHT (BETWEEN CENTERS): 100 KG (220 LB)
TAILSTOCK 150
HOLDING TAPER: MK 4
STROKE OF SLEEVE: 49 MM (APPROX 2")
MICRO CORRECTOR RANGE (Ø): ± 150 ΜM (± 0.006")
WORKPIECE WEIGHT (BETWEEN CENTERS): 150 KG (330 LB)
SYNCHRONOUS TAILSTOCK
SPINDLE SPEEDS: 1 – 940 RPM
HOLDING TAPER INTERNAL: MK 4
SHORT TAPER EXTERNAL: ISO 702-1, SIZE 5
GUARANTEED CONCENTRICITY (CHUCKED WORK): ≤ 1.0 ΜM (≤ 0.000039")
WORKPIECE WEIGHT (BETWEEN TIPS): 20 KG (44.1 LB)
STROKE OF SLEEVE: 50 MM (1.9")
OPTION: MICRO CORRECTOR WITH RANGE (Ø) ± 120 ΜM (± 0.0047")
4. DRIVE MOTORS (POWER & SPEED)
ASSEMBLY: ROTATIONAL SPEED (RPM) | POWER 50 HZ (KW / HP) | POWER 60 HZ (KW / HP)
GRINDING SLIDE (X-AXIS): 4,000 | 2.3 KW | 2.3 KW |
B-AXIS (DIRECT DRIVE): 30 | 0.7 KW | 0.7 KW |
O.D. GRINDING SPINDLE: 3,000 | 11.5 KW / 15.4 HP | 11.5 KW / 15.4 HP |
DIAGONAL / TANDEM: - | 2 X 11.5 KW | 2 X 11.5 KW |
LOWER TABLE (Z-AXIS): 4,000 | 2.3 KW | 2.3 KW |
WORKHEAD SPINDLE 100: 4,000 | 2.5 KW | 2.5 KW |
WORKHEAD SPINDLE 150: 940 | 1.9 KW | 1.9 KW | SYNCHRONOUS TAILSTOCK | 940 | 1.9 KW | 1.9 KW |
CIRCULATION LUBRICATION: 1,370 / 1,640 | 0.12 KW | 0.14 KW |
5. GRINDING WHEEL DATA
O.D. GRINDING
POWER: 11.5 KW (15.4 HP)
SPINDLE SPEED: 800 – 3,800 MIN⁻¹
WHEEL DIMENSIONS: Ø 500 X ... X 203.2 MM (Ø 20" X ... X 8")
MAX. PERIPHERAL SPEED: 50 M/S (APPROX. 9,850 FT/MIN)
I.D. GRINDING
WHEEL DIMENSIONS: MAX. Ø 125 X 63 MM (MAX. Ø 5" X 2.5")
6. DIMENSIONS, WEIGHTS & INSTALLATION
MACHINE DIMENSIONS
DIMENSION | METRIC: (600 / 1000) | IMPERIAL (600 / 1000) |
STRUCTURAL LENGTH: 600 / 1000 MM | 23 31/50" / 39 3/8" |
MACHINE WIDTH: 2,620 / 3,400 MM | 102 9/25" / 133 43/50" |
MACHINE DEPTH: 2,170 MM | 88 1/5" |
WEIGHTS
ITEM | METRIC (600 / 1000) | IMPERIAL (600 / 1000) |
STANDARD ACCESSORIES | 3,600 / 4,100 KG | 7,936 / 9,039 LBS |
WITH PACKAGING (BASE) | 4,600 / 5,100 KG | 10,141 / 11,243 LBS |
WITH PACKAGING (CRATE)| 5,300 / 5,800 KG | 11,684 / 12,786 LBS |
MAX FLOOR LOADING | 8,000 N/M² | 167 LBS/SQ FT |
