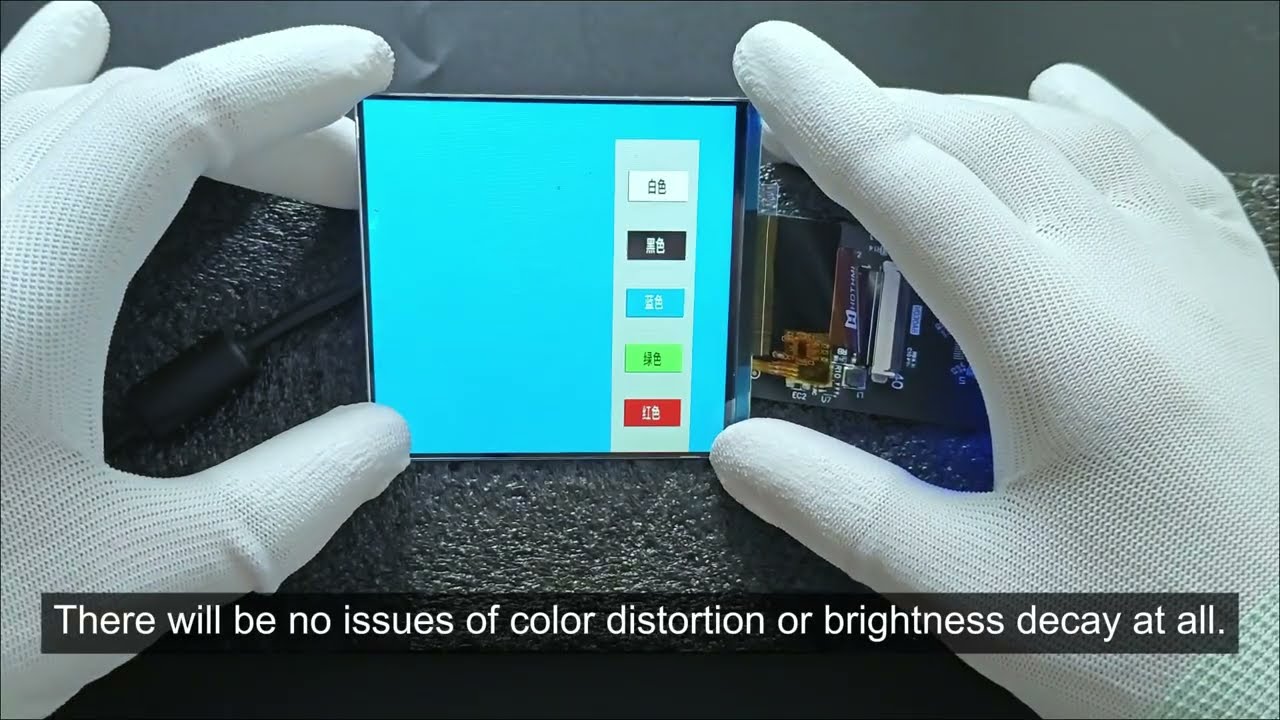

4.0 Inch TFT LCD IPS Touch Screen Module 480*480 ST7701S Drive touch Display HDMI Controller
Автор: GLZLDY aliexpress
Загружено: 2025-01-07
Просмотров: 6033
Описание:
HT040WQI-H401-R4018 with High Resolution (480 RGB x 480) is a transmissive type color active matrix liquid crystal display (LCD) which uses amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC and a backlight unit.
General Specifications
◆ LCD type : 4.0 inch
◆ Resolution (H*V) : 480(RGB)×480
◆ Technology Type : a-Si TFT
◆ Pixel Configuration : R.G.B. Vertical Stripe
◆ Display Mode : Normally Black
◆ Viewing Direction : ALL
◆ Outline Dimensions (W x H x T) (mm) : 84.2*84.3*3.2
◆ Active Area(mm) : 71.86*70.18
◆ With /Without Touch screen : With CTP
◆ Connector Type : 0.5 PITCH
◆ Backlight Type : LED
◆ Display Interface : 3SPI+RGB
◆ Touch Interface : I2C
◆ Number of color : 262K
◆ Display Driver IC : ST7701S
◆ Touch Driver IC : GT911/GFF
Packaging Details
1x display
1x Driver Board
1x HDMI Cable
1x USB-C Power Cable
