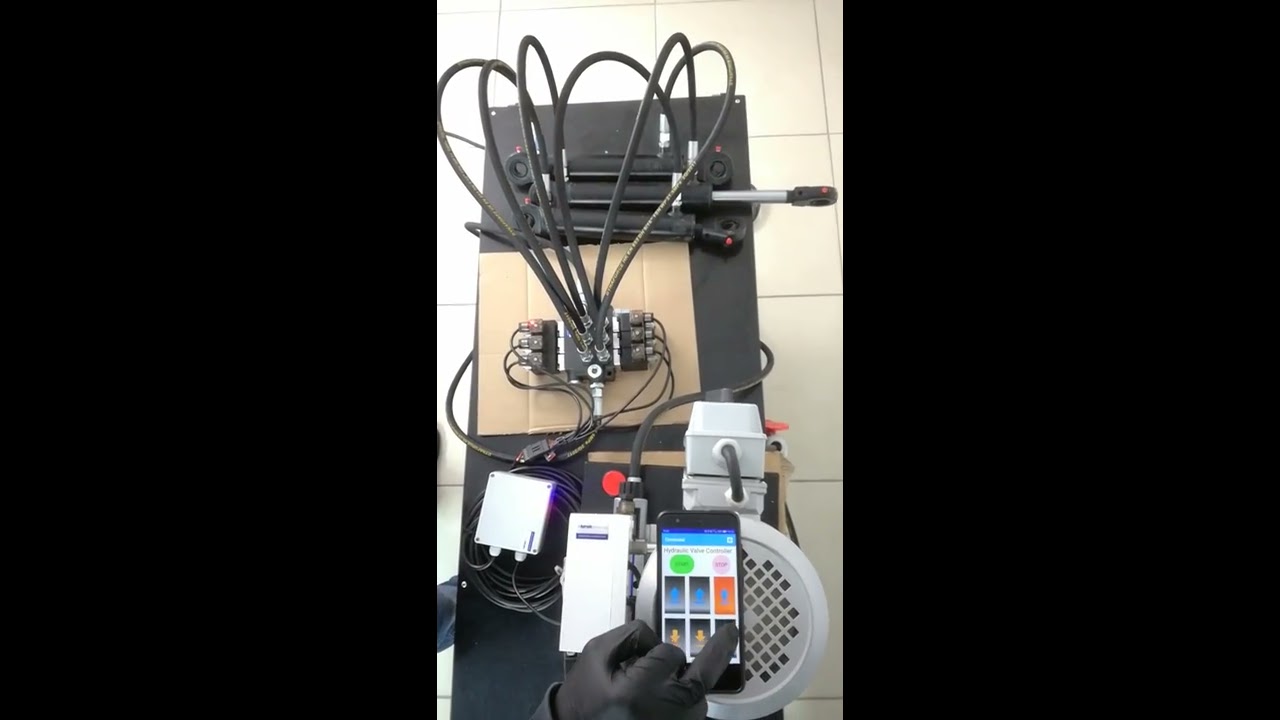

Hydraulic valve 50l/min 12 V 3 section double acting + Remote control radio by App from phone
Автор: Hydraulic Master
Загружено: 2018-11-08
Просмотров: 11758
Описание:
www.hydraulic-master.com
https://www.hydraulic-master.com/home...
Hydraulic valve with flow for open center system , 3 x section for double acting cylinders , flow 13 gpm 50l/min solenoids 12V (factory pressure settled for 175 bar)Adjustable relief valve (one turn 360 degrees is 35 bar
BSP type Screw Power and Back 1/2'' Output 3/8'
Max operating pressure P = 3600psi (250 bar); T = 150psi (10 bar); A , B = 4300psi (300 bar)
Kit include remote radio controlled from phone by application (for all android system) we provide app for customer. Or we can also sell kit that include new phone with installed application.
Remote radio with 10 meters cable from valve to receiver. Bluethooth pairing procedure using PIN code. Housing material ABS Dimensions: Operating and storage temperature (-20°C)~(+55°C)/(-40°C)~(+65°C) Power supply 12V DC Typical operating range 60 m
