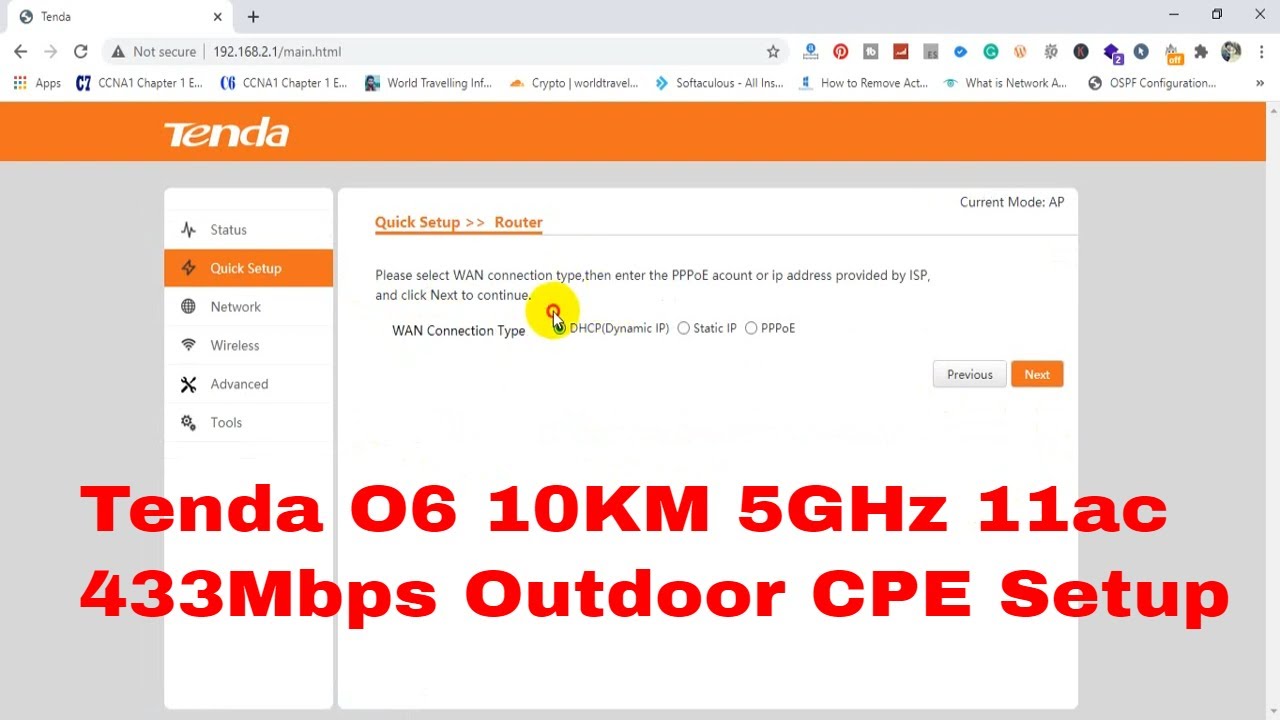

From this video, you will get to know "How To configure Tenda O6 as Access Point (AP) | Technical Hakim" #RouterConfiguration #TendaO6 #Tendao65Ghz
Know "How To Configure Tenda O6 5GHZ as Router/Ap mode setup".

Model: TENDA O6 5GHZ 433 Mbps Outdoor Long Range CPE O6 Upto 10 KM Access Point (White).
Description About device used: O6 5GHz 433Mbps outdoor Point to Point CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with an external power amplifier and a built-in 16dBi directional antenna to provide an efficient way to pick up and maintains a stable signal for a wireless network connection range up to 10 kilometers.
Tenda O6 5GHZ 433 Mbps Outdoor Long Range CPE.

Tenda O6 10KM 5GHz 11ac 433Mbps Outdoor CPE Wireless WiFi Repeater Extender Router AP Access Point WiFi Bridge with POE Adapter
Model Number: Tenda O6Wireless Protocol: 802.11nPackage: NoBrand Name: TendaStandard&Protocol: IEEE 802.11ac/n/aMaximum wireless speed: 433MbpsFrequency Range: 5GHzMaximum Consumption: 9WPower Supply: 24v 0.5A PoE InjectorModel Number: Tenda O6 Outdoor Point to Point CPE.

Tenda O6 10KM 5GHz 11ac 433Mbps Outdoor.
----------------------------------------------------------------------------------------------------------------
Technical Hakim,Tech Videos, Networking,Computer Networks, Information Technology, How To Configure Tenda O6 5GHZ as Router mode | Technical Hakim,10km 5ghz outdoor point to point CPE, Tenda o6, tenda o6 configuration, tenda o3 5km outdoor point to point cpe, tenda o3 5km wifi router setup, tenda o6 5ghz 10 km point to point outdoor cpe, tenda router configuration, tenda o6 configuration.
Tenda 06 5GHz 11AC 433Mbps Outdoor Point to Point CPE.
Tenda O6 5GHz Outdoor Point to Point CPE 11AC N433 Tenda 06.
Tenda O6|5GHz 433Mbps Outdoor Point to Point CPE Access Point.

Details about device used:
Specification
Brand: Tenda
Dimension: 270*94.86*67.5mm
Frequency Range: 5GHz
Maximum wireless speed: 433Mbps
CPU Processor: Broadcom 800MHz
GND Terminal: 1
Interface: 1*GE PoE/WAN/LAN port
Station: The device only work in Station mode
Off: The device work on
AP/Station/Universal Repeater/WISP/Router mode
AP: The device only work in AP mode
Antenna: 16dbi Directional Antenna
Horizontal: 30°
Vertical: 15°
Maximum Consumption: 9W
Lightning Protection: 6KV
Waterproof Level: IP64
Enable/Disable Wireless Radio
SSID Hidden
Wireless Client isolation
Sensitivity Threshold
WMM Capable
APSD Capable
Wireless Access Control
VPN Pass-through: PPTP,L2TP
Ping Watchdog: Support
Speed Test: Support
Remote Web access: Support
Schedule Reboot: Support
Page Timeout: Support
Dyndns: noip, dyndns.org
Time&Date Setting
System Log
Firmware update
IP Address: 192.168.2.1
Login Username:admin
Login Password:admin
Certification: FCC/CE/RoHS
Backup/Restore Configuration
Username Managerment
LED indicator: LAN,LED1,LED2,LED3
Power Supply: 24v 0.5A PoE Injector
Standard&Protocol: IEEE 802.11ac/n/a
Operating Temperature: -20℃ ~ 55℃
Storage Temperature: -40℃ ~ 70℃
Network Diagnoses: Ping, Traceroute, Signal Scan
Operating Humidity:10%~90% non-condensing
Storage Humidity:10%~90% non-condensing
Reception Sensitivity: MCS0: -90dbm ,MCS7: -72dbm
Bridge: Press 3 seconds and release it to bridge uplink AP
Reset: Press 10 seconds or more to restore to default settings
Wireless Client listTransmit Power: Adjustable power by 1dBm
Operating mode: AP/Station/Universal Repeater/WISP/Router
Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 encryption.
Tenda O6 5GHz 11AC N433 Outdoor Point to Point CPE Configuration and Setup guide.
