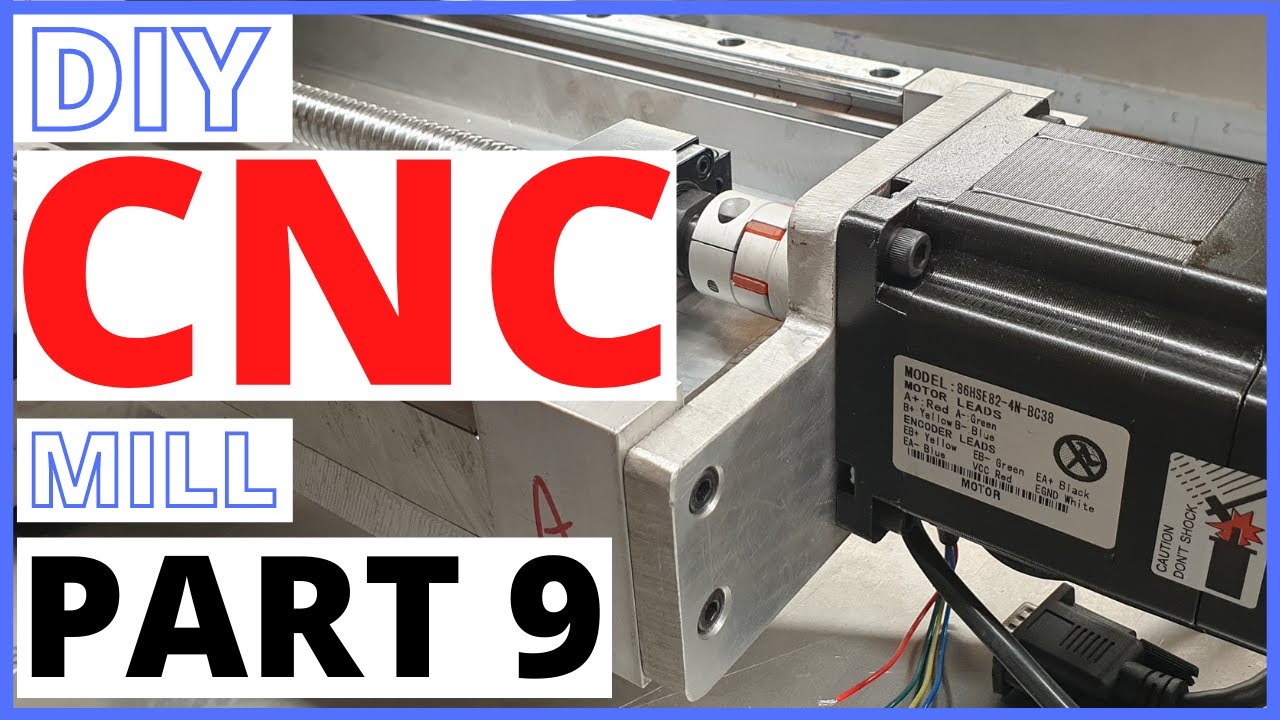

DIY CNC Milling Machine Build (Part 9) NEMA34 Hybrid Stepper Motor X-Axis bracket
Автор: Seabass Engineering
Загружено: 2021-01-17
Просмотров: 26264
Описание:
In this episode I make the X Axis mounting plate for the NEMA 34 Hybrid (closed loop) stepper motor.
_____________________________________
DIY CNC Milling machine build.
My objective for this project is to design and build a CNC milling machine without the need for any machining of the parts. Ordinarily, building a mill requires a much bigger mill to get the axis surfaces flat and parallel.
By using aluminum tool plate (which is in theory pre-machined flat) and bolting the critical components rather than welding, it should be possible to avoid any machine work. After all, I'm building a mill because I don't have one!
Linear rails and ball screws are the cheap Chinese 20mm style that you can find on eBay etc.
