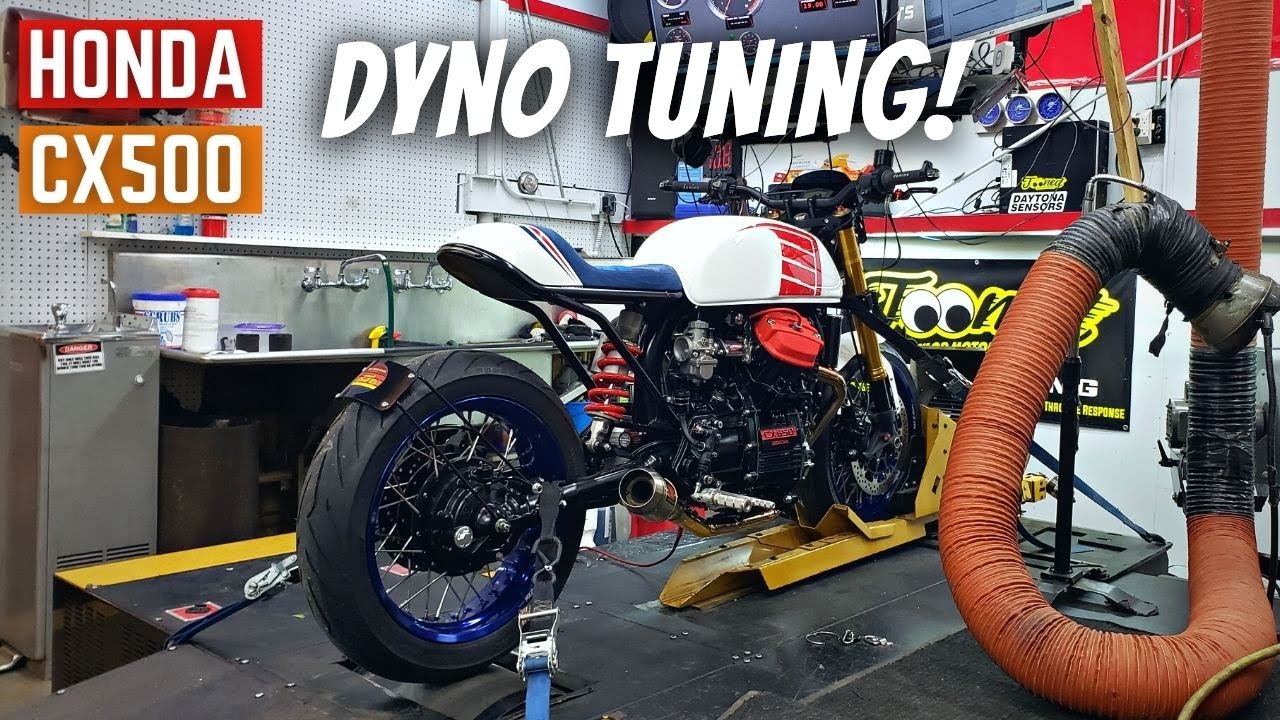

650 Swapped CX500 On The Dyno! VOLUME UP! EP62

Описание: The 650cc swapped CX500 build on the dyno! Volume up as this thing sounds AMAZING and put down some great power! This is a long time build and it is finally ready to ride after sorting a couple issues. If you see a specific item on this bike and want to know more about it, I have a dedicated video on it within this playlist with full information in each description.

Previous video breakdown of the bike:
   • CX500 BUILD IS BACK! Project Re Introducti...

For those unfamiliar this is a 1981 Honda CX500 that I have built and has extensive changes throughout the entire bike. For this video the main change is the 650 engine I swapped in from a 1983 Honda GL650. I did a complete rebuild on the engine with stock pistons/bore and a fresh hone. It has new rings and just fresh throughout. I did do a bit of work on the cylinder heads with a light cleanup and port-matching on the intake side to match the fabricated intake manifolds. The exhaust side is merely cleaned up with no big changes there.

Other components/specifics below:
Mikuni VM34 carbs - NO I WILL NOT PROVIDE MY JETTING INFORMATION
UNI PK92 filters
Handmade stainless 2 into 1 exhaust. 1.5" OD tubing with dual 1.5" inlet and 1 3/4" outlet merge. - 1 7/8" ID inlet Competition Werkes Muffler 3.5" canister version but custom ordered
Rae-San Hall Effect Ignition system
Ultima Big Twin single fire coil PN 53-434

On the dyno our main mission was to work on drivability and fueling at normal operating conditions. Simple jet changes and adjustments were needed. As the dyno is a great tool it was able to highlight other issues I had with the bike in the areas of fuel supply and ignition.

On the fuel supply issue it became pretty clear the petcock I had installed simply could not keep up with the fuel flow demands and was causing a lean condition mainly in the left cylinder. Once we hooked up a simple fuel bottle we could continue with testing. I have since purchased a Pingle 6411-AH petcock which is for the 16x1.5mm threads on this tank. That will sort my fuel flow issues.

For the ignition misfire this was due to two issues. I had set this bike up with some MSD automotive plug wires that I had lying around but was not using a resistor spark plug cap. The Rae-San system seems to not like those so I have since picked up a set of NGK copper core wires with the 5k ohm you normally see on the bikes. The first few scenes on the dyno you can hear a lot of misfiring which was due to the spark plugs. I had a non-resistor plug in the bike and forgot about it. I ran to the store and grabbed some NGK DPR8EA-9 plugs and that was a drastic improvement. All simple fixes but hard to diagnose on the street.

I can't thank Mike Taylor of Taylor Motorsports for his time and knowledge on this day! He really allowed me to test and see changes in hard data form. He is a total pro so check him out via links here:
Facebook:   / taylormotorsportsstl
Instagram:   / taylormotorsports2644
Located at 2644 Gravois AVE in St. Louis

Playlist guide:
Carbs and Intake manifold fabrication: EP20
Making the shift linkage: EP24
Full engine teardown: EP35
Cleaning/hone: EP36
Porting/valves: EP37
Engine assembly: EP38-40
Rae-San Install: EP48
