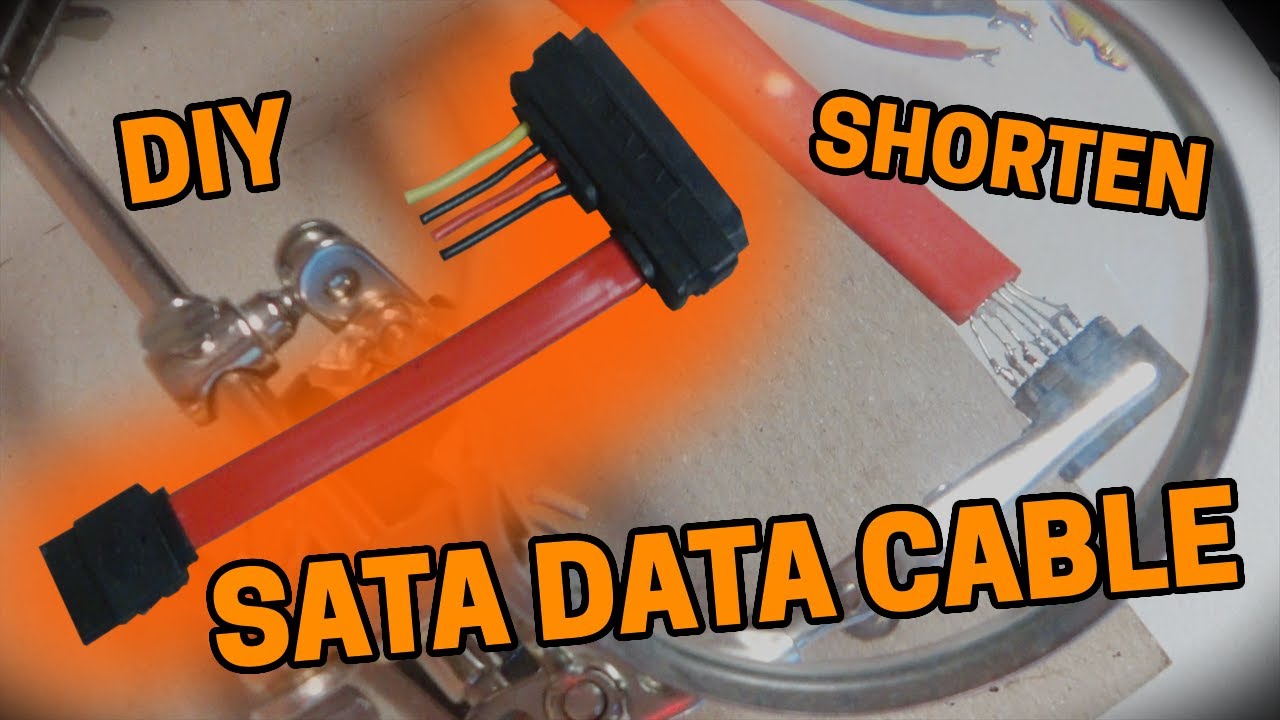

DIY How to shorten sata data cable
Автор: Alephonya
Загружено: 2021-05-30
Просмотров: 25698
Описание:
SORRY FOR THE SHAKY CAM AT TIMES! Screw that was holding it in place loosened, but i fixed that now!
00:00 - intro
00:10 - remove housing
01:04 - cut connector behind pins
01:20 - remove hot glue
01:52 - cut cable to length
02:20 - remove insulation
04:23 - check connector position
05:04 - soldering wire to the connector
06:10 - re-apply hot glue for strength
07:02 - re-add connector housing
08:28 - Done!
Hi!
I needed a short sata cable for my upcoming project i am working on.
I needed a sata combo cable for a hot-swap bay, but there were no available with short enough cables, so i decided to make one myself!
And i always wondered how hard would it be to shorten these data cables yourself...
And oh boy it was! Wires are small and spaces between them are tiny! And i have really shaky hands! But it turned out acceptable, It works, and does not look all that bad.
Be careful while removing hot glue, you can easily damage connector pins or even pull them out (learned that the hard way). Take your time, remove it piece by piece.
And make sure there are no shorts between the pins!
There are connectors which you can take apart, makes the process a little easier.
vid edited in Blender
I hope you enjoyed watching my video, and if you did, like and subscribe.
If you did not, please let me know why so i can improve and do better next time!
