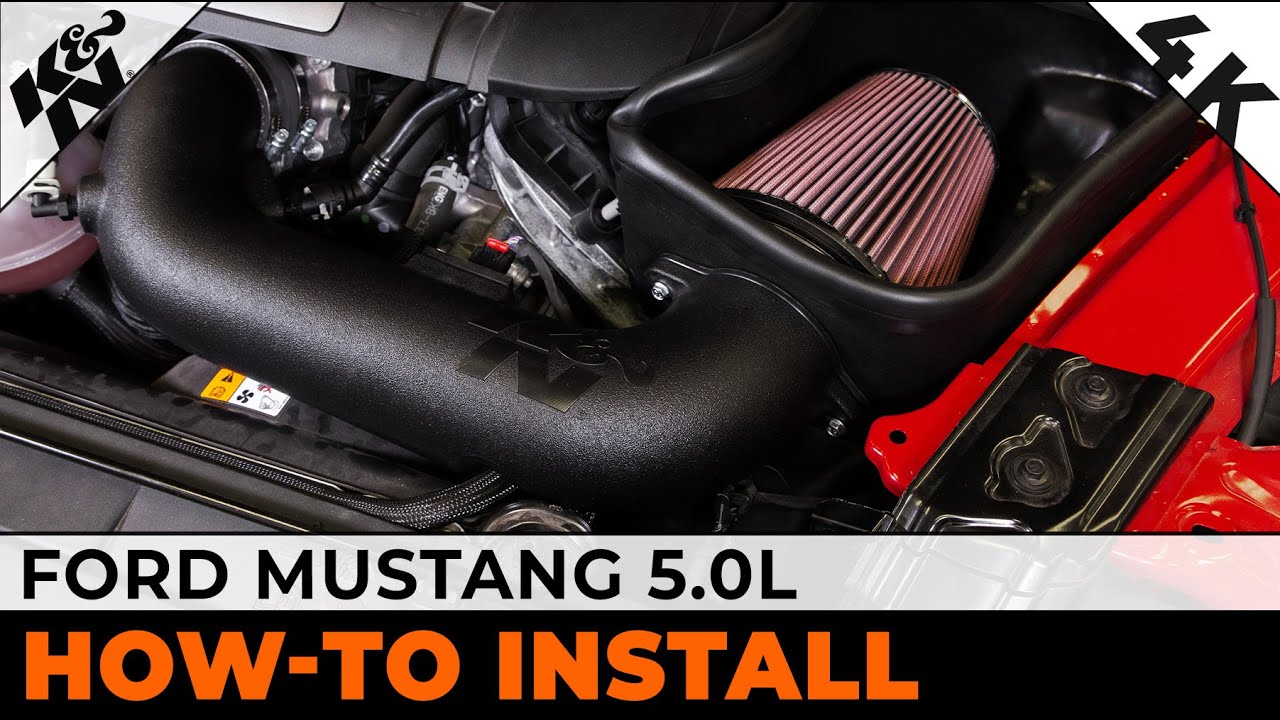

Ford Mustang 5.0L [#63-2605] Air Intake Installation

Описание: Learn how to install K&N performance air intake system #63-2605 on your Ford Mustang with 5.0L engine

Learn more about the features of this intake system:
https://www.knfilters.com/cold-air-in...

See the complete written instructions for this intake system:
https://www.knfilters.com/instruction...

See a complete list of up-to-date applications for this intake system:
https://www.knfilters.com/search/appl...

View dyno testing results for this intake system:
https://www.knfilters.com/dynocharts/...

TRANSCRIPT:

0:14
1. Turn off the ignition and disconnect the negative
battery cable

0:19
2. Remove the four nuts that secure the strut tower brace
and then remove the strut tower brace from the vehicle

1:25
3. Remove the fastener covers on the engine cover, remove
the two nuts that secure the cover

1:53
and then remove the cover from the engine

2:03
4. Disconnect the mass air sensor electrical connection

2:09
5. Disconnect the EVAP vent line, cut the clamp for the sound
tube at the sound drum and disconnect the hose from the drum

2:29
Loosen the hose clamps that secure the intake tube to
the throttle body and air filter housing

2:42
then remove the intake tube from the vehicle

2:48
6. Release the clips that secure the upper air filter housing
and then remove the upper air filter housing from the vehicle

2:53
7. Remove the bolt that secures the air filter housing to
the inner fender

3:03
and then remove the lower air filter housing from the vehicle

3:08
8. Install the provided edge trim onto the K&N® air filter
housing

4:25
Install the K&N® air filter housing into the vehicle and
secure with the provided hardware

4:49
9. Install the provided fittings into the K&N® intake tube as
shown

5:31
10. Install the provided gasket onto the K&N® mass air
sensor adapter

5:40
11. Remove the mass air sensor from the factory air filter
housing and install it into the K&N® adapter

6:33
12. Install the mass air sensor assembly into the K&N® intake
tube as shown and secure with the provided hardware

6:59
13. Install the provided coupling hose (08699) onto the
throttle body and secure with the provided hose clamp

7:23
14. Install the filter adapter into the K&N® air filter
housing and then install the tube gasket onto the adapter

7:32
15. Install the intake tube into the coupler at the throttle
body and onto the filter adapter

7:45
secure the tube to the filter adapter with the provided
hardware

8:32
and to the coupling hose with the provided hose clamp

8:41
16. Connect the EVAP and crank case vent lines to the
fittings installed into the K&N® intake tube

8:56
17. Install the provided cap onto the sound drum as
shown

9:02
18. Install the K&N® air filter onto the filter adapter and
secure with the provided hose clamp

9:16
19. Unhook the mass air sensor wiring harness from the
inner fender and then route to the mass air sensor and reconnect

9:28
20. Reinstall the engine cover and secure with the factory
hardware

10:18
reinstall the nut covers

10:24
Reinstall the strut tower brace and secure with the factory
nuts

11:45
Double check to make sure everything is tight and
properly positioned before starting the vehicle
