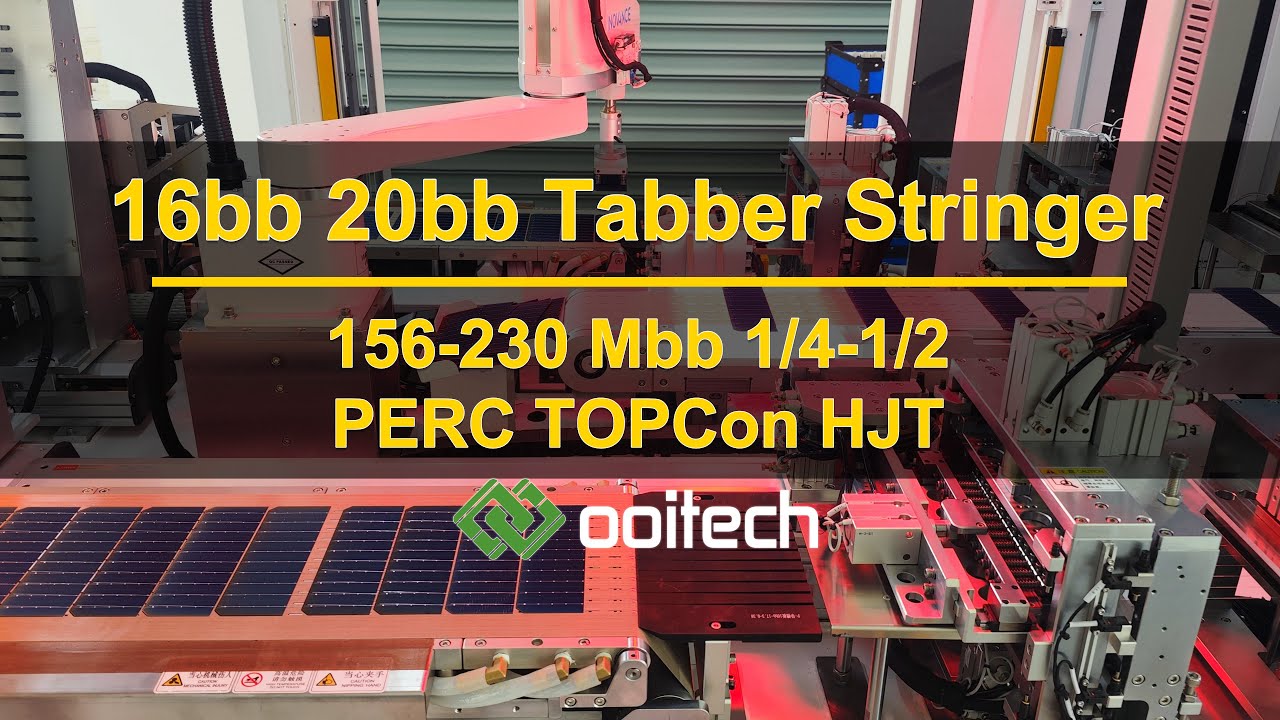

How The 2500 Speed Solar Cell Tabber & Stringer Could Change PERC & MBB Technology Forever!

Описание: 9BB 12BB 16BB 20BB MBB PERC TOPCon HJT Solar Cell Tabber Stringer 2500 Speed
https://bit.ly/3CEeXlb Learn All Solar Panel Making Process Steps from A to Z
WhatsApp: +8613554255933 Mail: [email protected]
Kindly visit us: https://www.ooitech.com
https://www.solarmakingmachine.com
Solar panel making machines: https://www.ooitech.solar
Solar panel production line: https://www.solarpanelproductionline.com
Solar power inverter: https://www.bestsolarinverters.com
Laser cutting and marking machine: https://www.laser-cutting-marking.com
Facebook:   / solarmachines
  / lasermarkingcutting
Twitter:   / ooitech
Youtube:    / ooitech

In this video, we'll discuss how the 2500 Speed Solar Cell Tabber & Stringer could change PERC & MBB technology forever!

The 2500 Speed Solar Cell Tabber & Stringer is a game-changer for PERC & MBB technology, and we'll discuss why in this video. This revolutionary tool could speed up cell production by up to 2500% and help to reduce costs significantly. Watch this video to learn more about this incredible tool!

https://www.solarmakingmachine.com/Fu...


#solarpanelproductionline
#solarpanelmakingmachine
#tabberstringer

Technical Parameters
Product model SS-2500
Product capacity ≥2400cell/hour
Breakage Rate ≤0.2%（A grade cells）
Cell size available 156-210mm*1/4-1/2
Cell inspection CCD camera detection (Busbar/missing corner)
Bus Bar QTY Available 3BB-20BB
Cell thickness 0.16-0.25mm
Ribbon available Flat ribbon, width: 0.35-1.2mm; thickness: 0.15-0.25mm
Soldering method IR heating soldering
Flux coating method Soak of ribbon
Soldering head 2pcs
Number of Cell Cassette 5PCS，250PCS/cassette
Equipment failure rate ≤4%
Time for changing Jigs ≤40Min（average）
Cell spacing 1.5-10mm（depend on the cell size）
Max string length 2000mm
Positioning method CCD camera+ Robot positioning
Robot positioning accuracy ±0.02mm
Electrical system PLC+ touch screen+servo+module+robot
Human-machine interface Touch screen display，friendly interface for easy operation.
Fault alarm Real time fault alarm
Device noise ＜80db
Power supply Three-phase five-wire，380VAC/50Hz
Rated power 20KW
Air source 6-8Bar：800L/min；Inlet pipe diameter：16mm
Device dimension 8200mm*1900mm*2300mm
Working platform height: 900mm±25mm
Weight 4500Kg


Equipment Include
 Automatic feeding mechanism
 Robot positioning and handling mechanism
 CCD appearance inspection and positioning system
 Flux spraying mechanism
 Ribbon handling mechanism
 Infrared soldering mechanism
 Temperature control unit for soldering stations
 Cell string transfer mechanism
 String turning and collection mechanism
 Mainframe and ribbon placing mechanism

Equipment Advance
 Qualified soldering effect, which approves soldering pulling testing higher than 1N/mm on cell surface (0.6*0.25mm ribbon, 180 degree pulling angle, and except HJT cell)
 Exchange time less than 120mins for changing different bus-bar number(9BB&12BB), including 30-60mins for changing tools and 30-60mins for tuning and calibrating. Exchange time less than 30mins for different cell sizes (whole cell, half-cell, third cell and quarter cell) while bus-bar number fixed.
 Ribbon extruding in advance before soldering.
 Pre-heating before soldering to avoid cell deformation efficiently
 Touchable integrated PC system can support remote assistance, we can provide online technical support for after-sales issues.
 Can be integrated with other Solar equipment conveniently.
 Remote assistance by Internet, the factory provides the network connection.
 No pre-heating required for Ribbon before soldering.
 No specialized engineer required for maintenance, but engineers must be trained and qualified.
 Solar cell soldering numbers per string can be set by PC.
