I found video from Akiyuki Brick Channel with a very interesting looking LEGO tentacle assembly. It looks like it has quite a lot of motion, and it only has four motors.
Each motor controls a stage of the machine – driving what is essentially a turntable, but with each motorised part set at 45 degrees.
Based on the combination of each rotary section, the tentacle is able to do some quite interesting motions as it reconfigures itself. There are lots of other really great builds in this channel, so you should check it out.
A similar mechanism has been used in the Rolls-Royce LiftSystem to thrust vector thrust a jet engine, and you can check that article out on Wikipedia.

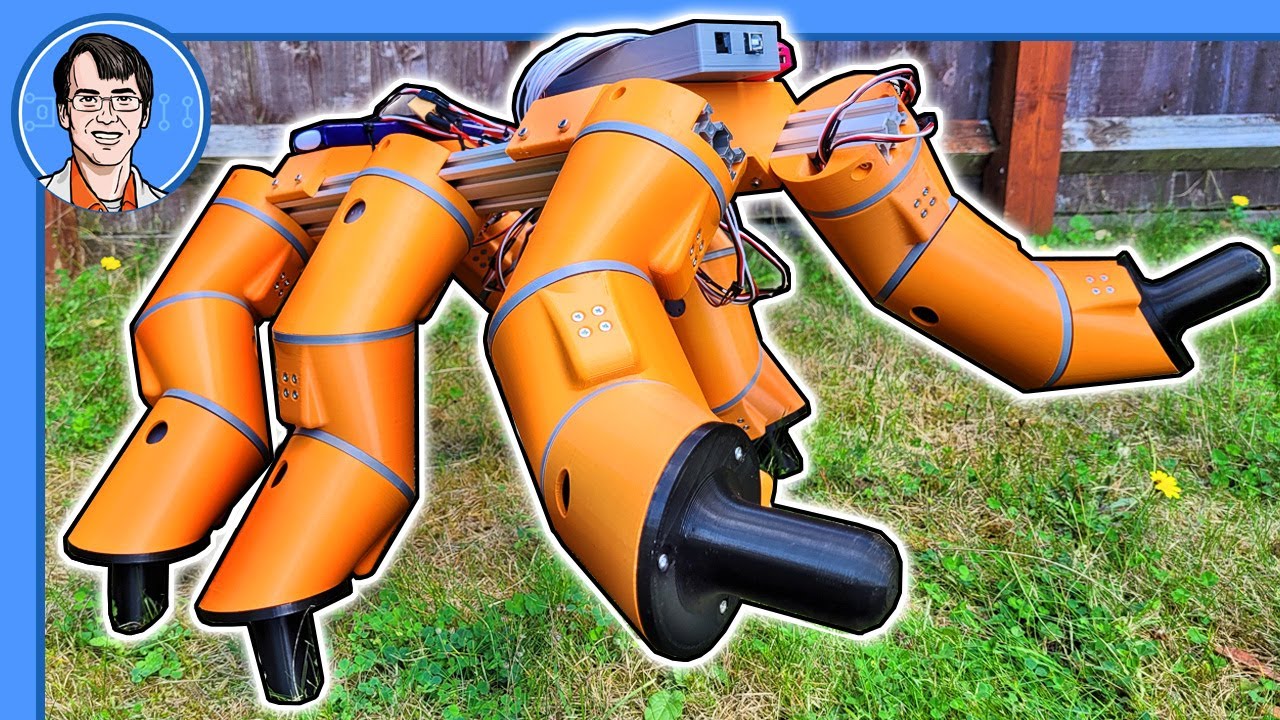

I’ve built quite a few walking robots, but I really liked the way the tentacle moved, so this made me think about whether I could make robot legs that worked in a similar way, and how easy it would be to control them.

Allen Pan:    • giving snakes there legs back.
Akiyuki Brick:    • LEGO Oblique swivel joint mechanisms

CAD & Code: https://github.com/XRobots/Tentacles
