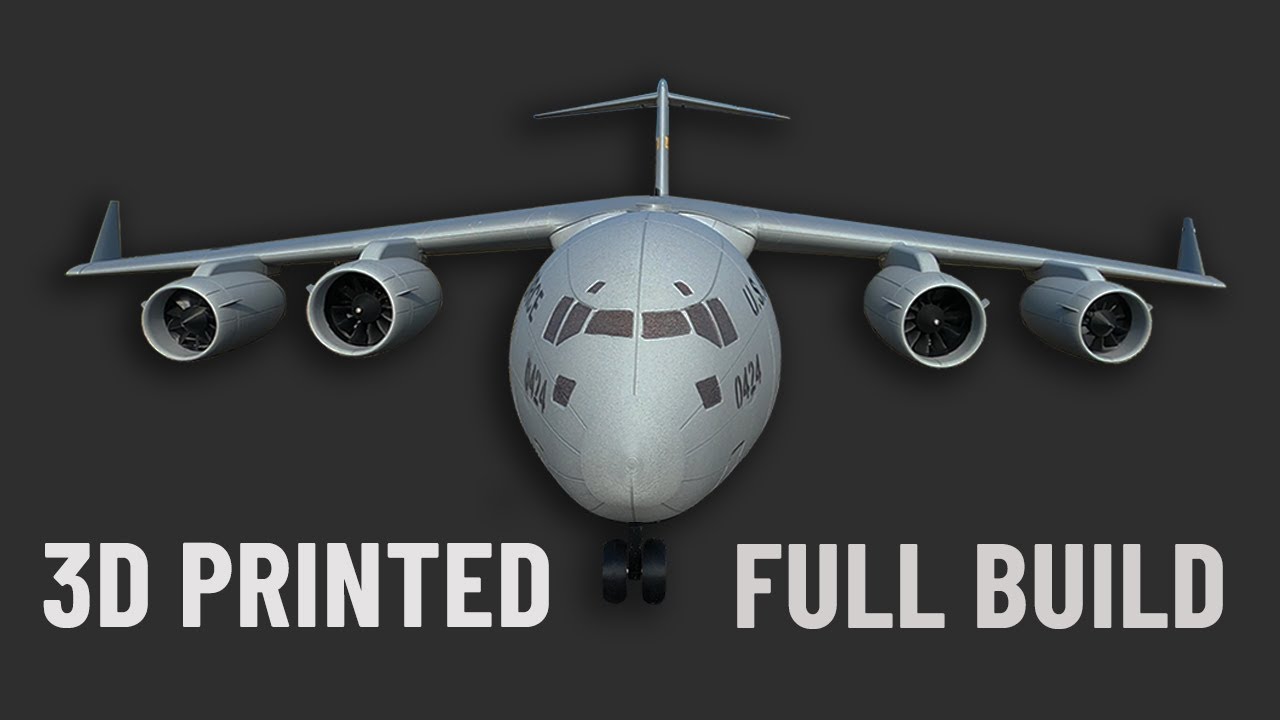

The Amazing 3D Printed RC PLANE C-17 . Full Assembly and Test Flight

Описание: 3D Printed C-17 Globe Master RC Model Airplane

If you like my projects and want to support me to make them sustainable...
Patreon: patreon.com/KNDYP

C-17 Globe Master STL Files: https://www.troymcmillanrc.com/c17

Landing gear is not available in the original licensed design. That's why I designed the landing gear. You can download the stl files required for the landing gear for free from the link below.
Landing Gear STL Files: https://www.printables.com/model/1404...

Needs (Please leave comments for links that do not work):
50mm EDF (4600KV) CW&CCW: https://s.click.aliexpress.com/e/_ol2...
ESC 40A for 3S / 50A for 4S: https://s.click.aliexpress.com/e/_om8...
Emax ES08MA Micro Servo (4 pcs) : https://s.click.aliexpress.com/e/_oBL...
MG90 Micro Servo (Metal Gear 180): https://s.click.aliexpress.com/e/_opq...
11.1v 2600mAh 40C+ : https://s.click.aliexpress.com/e/_okB...
OR 2700mah: https://s.click.aliexpress.com/e/_oFw... OR https://s.click.aliexpress.com/e/_oDK...
Servo extension cable: https://s.click.aliexpress.com/e/_olc...
Servo Y type extenion cable: https://s.click.aliexpress.com/e/_oBq...
Metal Tube 4x3mm : https://s.click.aliexpress.com/e/_oCF...
M2.2x13mm screw (5 pcs): https://s.click.aliexpress.com/e/_omb...
M3x40mm screw (5pcs): https://s.click.aliexpress.com/e/_onH...

Radio Control:
RadioMaster TX16S MK II: https://s.click.aliexpress.com/e/_ooY...

LW-PLA filament: https://colorfabb.com/filaments/pla_l....
OR https://s.click.aliexpress.com/e/_om4...

TPU/TPE Filament: https://s.click.aliexpress.com/e/_ooc...

Reference weights for parts (LW-PLA):
F1 Fuselage 19,2 g
F2 Fuselage 59 g
F3 Fuselage 71 g
F4 Fuselage 45 g
F5 Fuselage 37 g
F6 Fuselage 32 g
F7 Fuselage 7,5 g
CENTER WING 45 g
WING1 40 g
WING2 28 g
WING3 16 g
WING4 2,4 g
FLAPERON1 8,65 g
FLAPERON2 8 g
FLAPERON3 5,5 g
ENGINE NACELLA 18,7 g
FRONT ENGINE COWLING 3 g
HORIZONTAL STABILIZER1 6,7 g
HORIZONTAL STABILIZER2 2,95 g
VERTICAL STAB1 12 g
VERTICAL STAB2 17 g

Specifications:
Wing: 130 cm
Lenght: 120 cm
Flight Weight 1295 gr (with 3S 2600mAh 40C Lipo)
Motor: 2 x 50mm EDF
ESC : 2 x 40A or 50A
Servo: 5 x Micro Servo

Drone shot: @sarperkaratas
