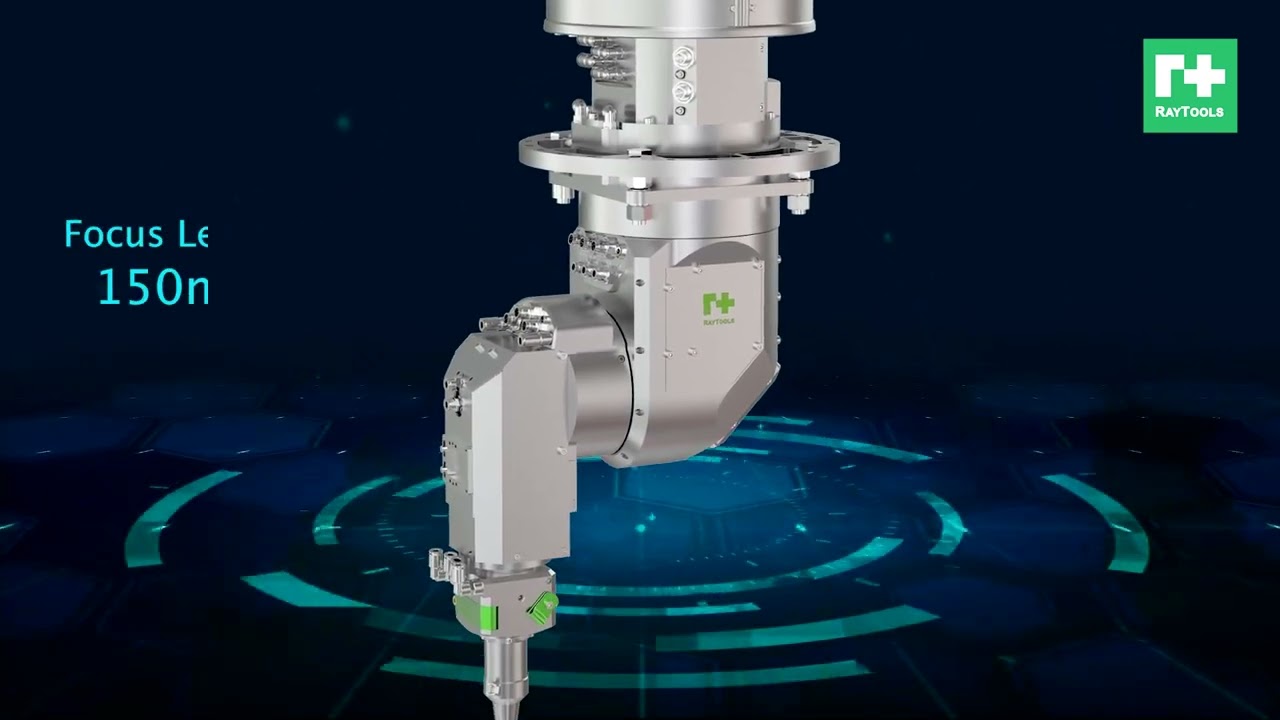

GF501 is coming. 5-axis 3D laser cutting head🎈4000W📌

Описание: #RayRools GF501 is coming. 5-axis 3D laser cutting head🎈4000W📌
-------General Features
Fully built-in optics system to secure more stable cutting comparing to external optics system.
Mechanical body machined by aviation aluminium.
Auto focus by OA mirror.
Built-in H (height follow) axis to facilitate side cutting of square tube and H profile.
Brake function of A (bevel) axis to prevent from crash caused by power failure.
Internal boosted gas can be used to prevent from optics contamination.
High rigidity to secure the stability of optics system.

------Control and Drive
Fully close-loop control of A, C and H axis by using frameless motor and circular grating drive system with compact structure, high precision and outstanding dynamic performance.

------Water and Gas
Water cooling.
Cutting gas 0-15 bar to be regulated by proportional valve.
Auto focus by 0-6 bar gas to be regulated by proportional valve.
Internal boosted gas 0-2 bar. Maintain positive pressure inside.
Gas must be oil & water free with 3-stage filtering. (dryer is required)

-------Anti-collision
Anti-collision function to output alarm in case of collision.
Bevel angle is limited within 6° and trigger inductive safety switch of Z axis when horizontal collision occurs.

------Horizontal Adjustment
Level adjusting mechanism to adjust mounting angle.

------Height Follow
Originally Europe made height controller to secure stable 5 axis cutting.
