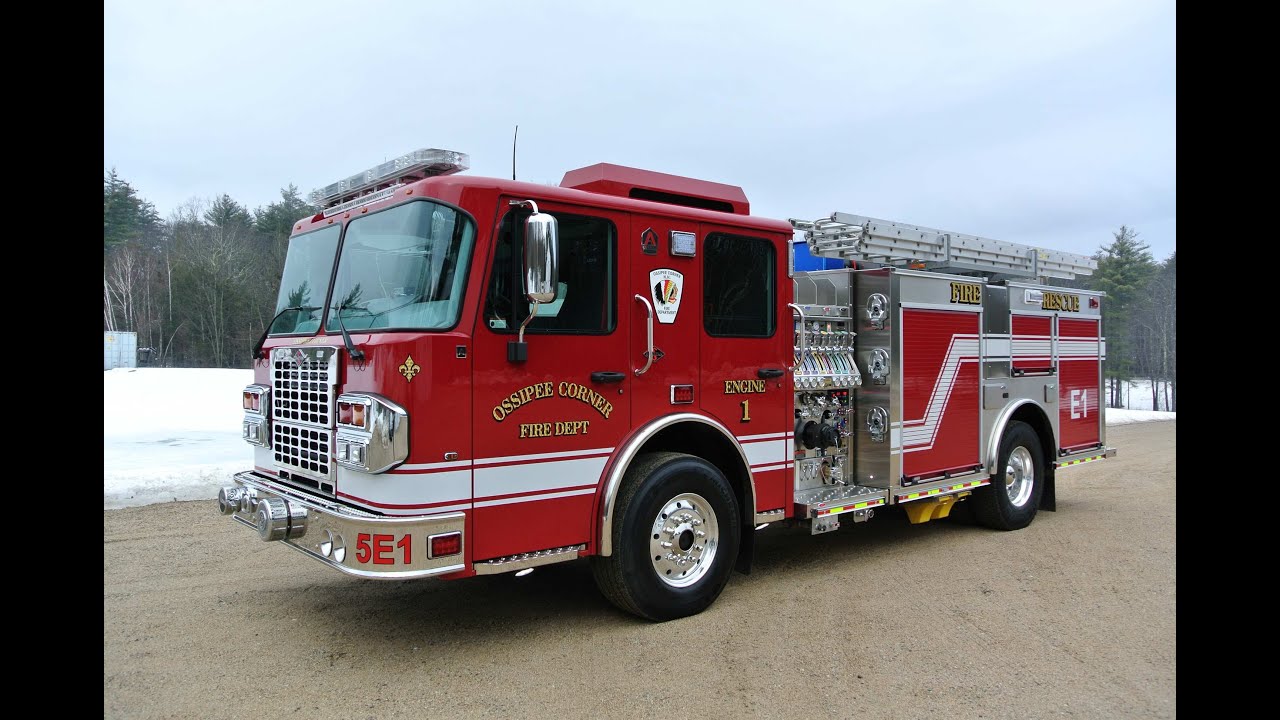

OSSIPEE CORNER FIRE DEPARTMENT ALEXIS 1250 GALLON CUSTOM PUMPER
Автор: Lakes Region Fire Apparatus
Загружено: 2024-03-08
Просмотров: 39
Описание:
Spartan Metro Star SMFD Flat Roof Chassis
Cummins 450 HP L9 Diesel Engine
Allison 3000 EVS Automatic Transmission
Heavy-Duty Stainless Steel Body and Subframe
Stainless Steel Side Control Pump Module
Hale QMAX150 1500 gpm Pump
Trident Air Prime System
FRC InControl 400 Pressure Governor & Monitoring System
Two (2) 6” Intakes, One (1) Each Side
One (1) 2½” Gated Intake, Left Side
One (1) 5” Front Intake Adapted to 6” NST
Two (2) 2½” Discharges Left Side
One (1) 2½” Discharge Right Side
One (1) 3” Discharge Right Side Adapted to 4” Storz
Two (2) 1½”, One (1) 2½” Preconnects with One (1) Deadlay
Two (2) 2½” Hose Bed Preconnects, Front of Hose Bed
FoamLogix 2.1A 30 Gallon Foam Tank, All Preconnects Foam Capable
1,250-Gallon Poly Tank
One (1) Hydraulic Ladder Rack Left Side
One (1) Hydraulic Ladder Rack Right Side with One (1) Hard Suction Storage
Two (2) Hard Suction, Pike Poles, and Attic Ladder, Rear Compartment Through the Tank
EMS Compartment, Rear Wall of Cab
Three (3) Dual Wheel Well Air Bottle Compartments, One (1) Ahead Left, Two (2) Right Side
Three (3) 250# Roll Out Trays L1 Compartment
One (1) 250# Roll Out Each L3, R1 Compartments
ChanL PanL Upper Rear Wall of L1, L2, R2, R3 Compartments
Whelen LED Warning Light Package
Whelen Traffic Advisor
FireTech and FRC Scene Lights
Night Scan Chief NS1.8-500WB 12V 4-Head Light Tower
Whelen PSTANK2 Strip Lite Tank Gauges
Federal Siren & 100W Speaker
9’ 7” Overall height
29’ 11” Overall length
181” Wheelbase
20,000 FAWR
31,000 RAWR
51,000 GVWR
