How to hold a square work piece in a 3-jaw chuck
Автор: Finno Ugric Machining
Загружено: 2023-08-02
Просмотров: 4186
Описание:
This time the sturdy dial indicator stand is finished.

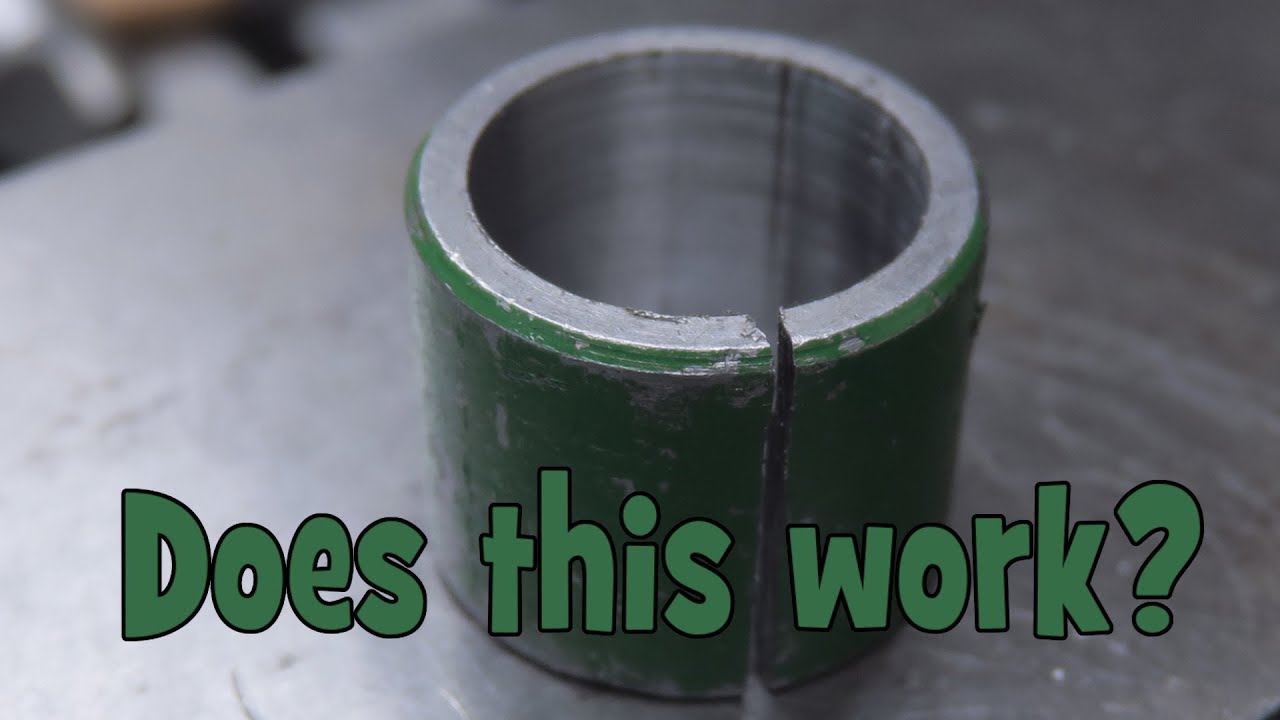

The square stock I use presents a problem which I solve with a bush.
In this video I use:
Weiler Matador SV (1972) Lathe
Schaublin SV-51 (1955) Milling machine
Solberga (1975) Drill press
Chapters:
00:00 Opening animation
00:55 Introduction
02:03 Making a collet for the square workpiece
09:20 Facing and drilling one end of the square workpiece
13:37 Boring tapers at one end of the square workpiece
20:04 Facing, drilling and reaming the other end of the workpiece
21:55 Milling details at the ball socket of the workpiece
25:11 Cutting threads, drilling and reaming at the side of the workpiece
32:31 Slitting the workpiece ends using a slitting saw
39:33 Testing the indicator holder
43:53 Fotos taken by Huib
46:18 Drawings for the indicator holder
46:54 Conclusion and Bye
47:53 End credits
The video is spoken in Finnish but it has good quality hand written subtitles in English, German and Finnish.
