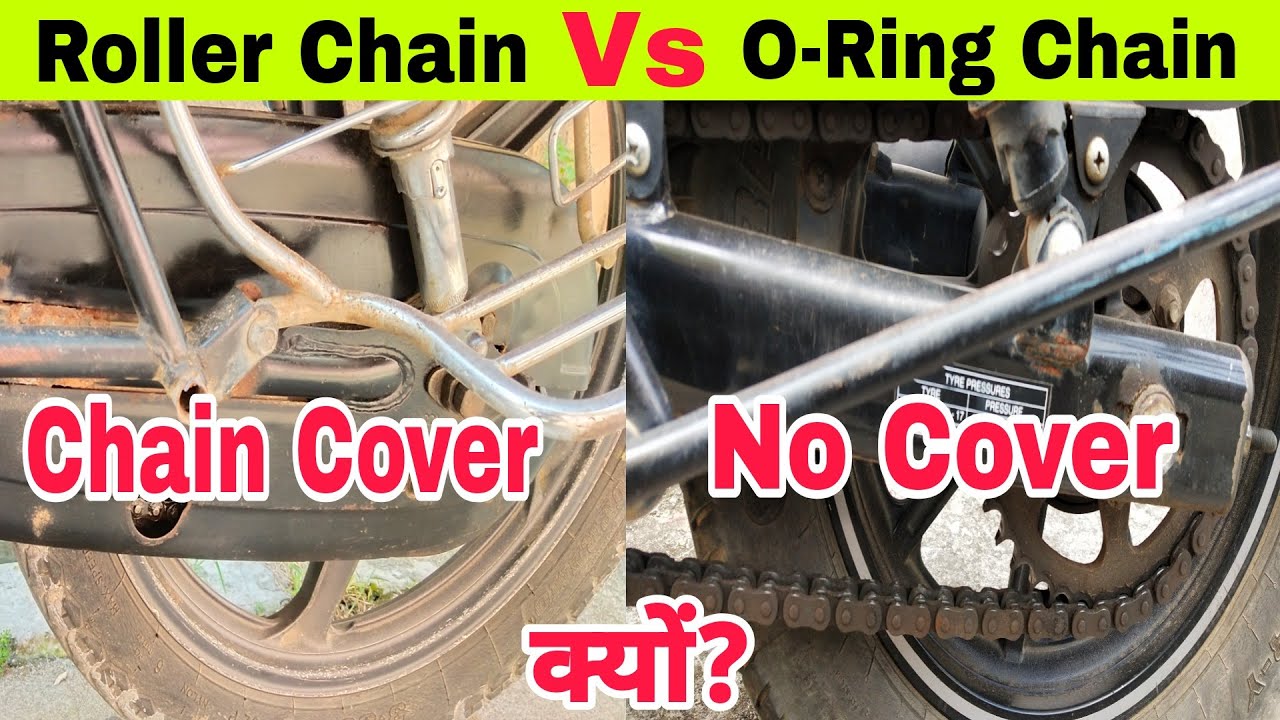

Motorcycle Standard Roller Chain Vs O Ring / X Ring Chain - Which Is Better ? | Bike Drive Chain

Описание: The Drive Chain also known as Final Drive Chain is the ultimate part of any motorcycle responsible to transmit the energy/ power of engine to the rear wheel. The drive chain is actually an integral and penultimate part of the complex Drive Train of any engine which is comprised of Transmission Gears, Primary Drive and Final Drive.

Chain Vs Belt Vs Shaft Drive :    • Chain Vs Belt Vs Shaft Drive | Motorcycle ...

Mono Shock Suspension Vs Dual Shock Suspension :    • Mono Shock Suspension Vs Dual Shock Suspen...

Normal Suspension vs Nitrox Suspension :    • Normal Suspension vs Nitrox Suspension | क...

Air cooled vs Oil cooled vs Liquid cooled :    • Air cooled vs Oil cooled vs Liquid cooled ...

DRY CLUTCH Vs WET CLUTCH :    • DRY CLUTCH Vs WET CLUTCH - Which Is Better...

DISC BRAKE Vs DRUM BRAKE - Which Is Better :    • DISC BRAKE Vs DRUM BRAKE - Which Is Better...

CARBURETOR Vs FUEL INJECTOR :    • CARBURETOR Vs FUEL INJECTOR - Which Is Bet...

Tube Vs Tubeless Tyres :    • Tube Vs Tubeless Tyres | Which Tyre Is Bet...

ALLOY WHEEL Vs SPOKE WHEEL :    • ALLOY WHEEL Vs SPOKE WHEEL - Which Is Bett...

Two Stroke Vs Four Stroke Engine :    • Two Stroke Vs Four Stroke Engine - Which I...

Upside Down (USD) Fork Suspension Vs Telescopic Fork Suspension :    • Upside Down (USD) Fork Suspension Vs Teles...

MANUAL Vs AUTOMATIC TRANSMISSION - Which Is Better :    • MANUAL Vs AUTOMATIC TRANSMISSION - Which I...

Front Wheel Drive (FWD) Vs Rear Wheel Drive (RWD) :    • Front Wheel Drive (FWD) Vs Rear Wheel Driv...

Standard Roller Chains:

The Standard non O-Ring chains are the regular drive chains that we use in our older motorcycles and in some of our latest small capacity motorbikes. The standard roller chains are also non self lubricating chains and hence it is required to lubricate them externally on regular basis.
Even lubricating the non O ring standard chains are not sufficient as sometimes it is hard to lubricate the internal parts of the chain and if by putting extra effort and extra lubricants to the chain you succeed in lubricating it "properly" soon the dust and filth attracts to the lubricated chain including its internal parts make it difficult to clean and lubricate it for the next time.
The filth deposited inside the chain components not only corrodes the drive chain but also acts responsible for wear and tear of sprockets and chain itself.

O-Ring Chains:

The O-Ring Chains are the modern drive chains consists of a rubber "O- Ring" placed between the chain plates. These O-Rings are fitted in between chain plates to seal the already vacuum filled grease between the rollers and the other internal components of chain. This mechanism of O-Ring type chains make them self lubricated and hence they require less maintenance and have longer life and better performance in longer run.

In O-ring type chains when the rubber "O- Ring" is pressed and riveted, it changes shape and becomes flat from the sides hence seals the space efficiently but the pressed O-Ring with flat sides create friction which results into significant drag. This drag can be felt while rolling the rear wheel in cold state, however the drag vanishes after the chain rotates few turns and heats up.


X- Ring Chains:

The X- Ring Chains as the name suggests are drive chains with "X" shape rubber ring used instead of "O" shape. The X- Ring type chains are more modern chains with X-shaped rubber ring placed in between the chain plates to seal the grease filled inside the chain components. As upon pressing these type of rings come in contact with lesser surface area and hence less drag coefficient is generated with same efficient sealing property as O-Ring chains provide.
