How to Crimp Micro Connectors for FPV

Описание: Please read the whole description - there are updates -

TOOLS

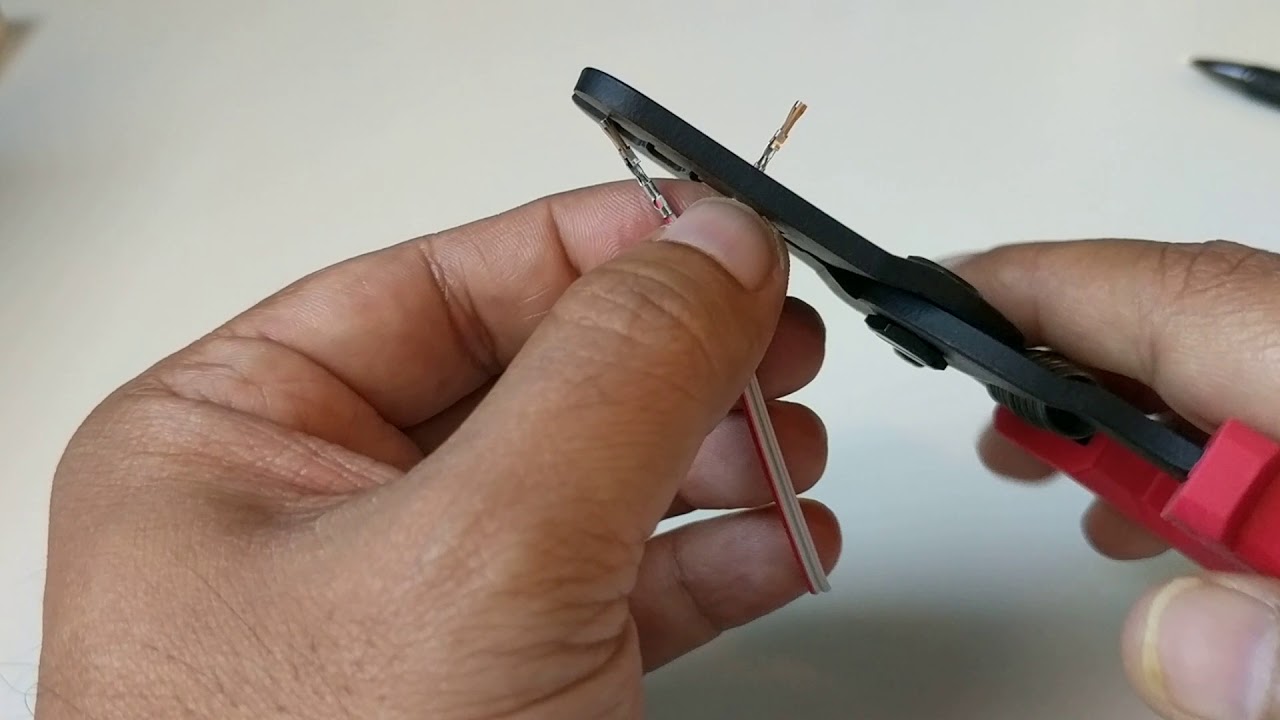

Engineer PA-09 Crimping Tool
Paladin Grip P20 Wire Stripper

Picoblade connectors on digikey (2 position - just browse for larger housings)
http://www.digikey.com/product-detail...

Crimps:
http://www.digikey.com/product-detail...

(update - 7/16 - I'm a big fan of silicone wire - grab 28awg and 30awg lengths from adafruit industries - and if you source wire that you like - please message me so I can update the description for the benefit of others.

28 AWG Wire - search on ebay for " 28 AWG Stranded UL1007 " wire
http://www.ebay.com/itm/Stranded-indo...
FPV Connector Thread on FPVLab.com
http://fpvlab.com/forums/showthread.p...
***

This is a video response to a request that came in on the forum. Just like any other delicate task, to do a high quality job, you need time, technique and the right tools to get the job done.

In this video I cover some techniques for crimping common micro connectors for a lot of components we use in FPV, like video systems, flight controllers and component to component connections.

Let me know if that was useful or if you'd like any other details on anything discussed in this episode.
