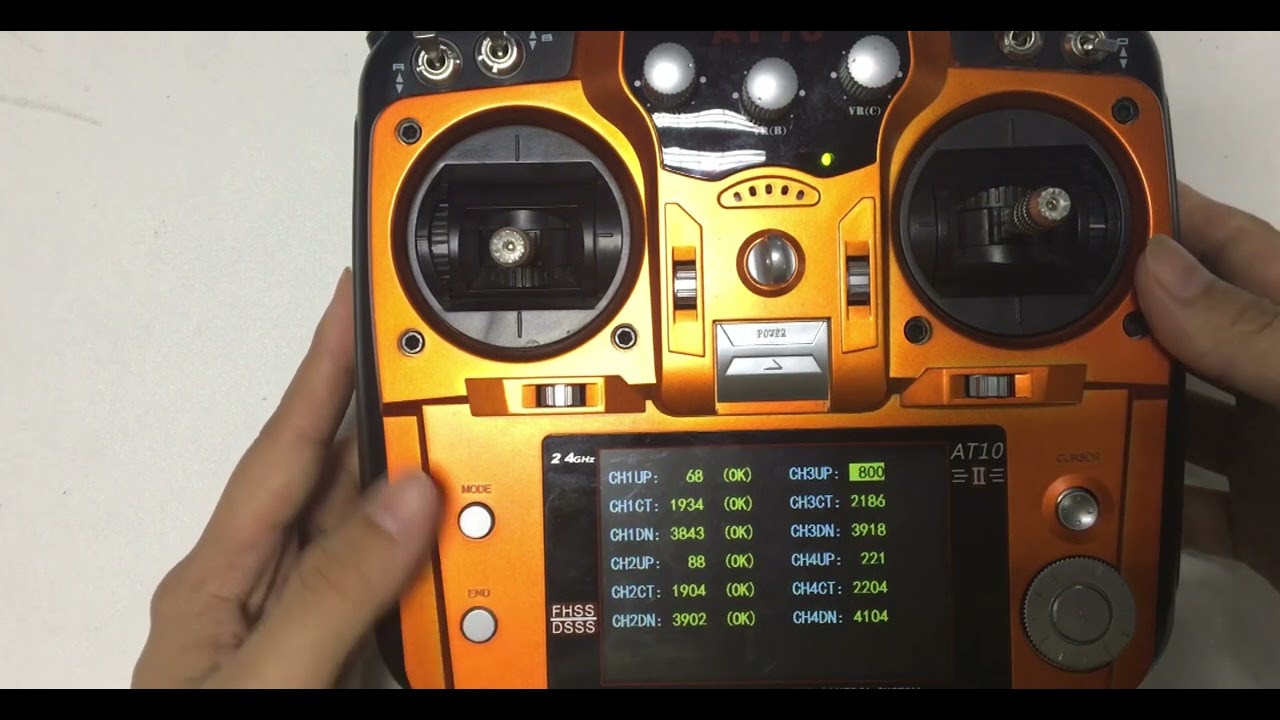

How to Re calibrate Joysticks of Radiolink 12CH 10CH transmitter AT10II

Описание: 1.Plug in the proper battery first
2.Press “END” on the left and “Push” on the right and power on simultaneously
3.Enter the joysticks Calibration menu
4.Calibrate each channel one by one
5.CH1
a: CH1UP: Press “End” to empty the data value
b: Push Rudder joystick to the LEFT and the value will change to minimum
c: Press “MODE” to confirm and there will be [OK] shown on the screen
5.2 CH1CT
a: Press “End” to empty the data value
b: oggle the Rudder joystick at the center point
c: Press “MODE” to confirm and there will be [OK] shown on the screen
5.3 CH1DN
a: Press “End” to empty the data value
b: Push Rudder joystick to RIGHT
c: Press “MODE” to confirm and there will be [OK] shown on the screen
6.CH2:
6.1 CH2UP
a: Press “End” to empty the data
b: Push Rudder joystick to up top
c: Press “MODE” to confirm and there will be [OK] shown on the screen
6.2 CH2CT
a: Press “End” to empty the data
b: Toggle the Rudder joystick to middle position
c: Press “MODE” to confirm and there will be [OK] shown on the screen
6.3 CH2DN
a: Press “End” to empty the data
b: Push Rudder joystick to DOWNWARD
c: Press “MODE” to confirm and there will be [OK] shown on the screen
7.CH3:
7.1 CH3UP
a: Press “End” to empty the data
b: Push Throttle joystick to up top
c: Press “MODE” to confirm and there will be [OK] shown on the screen
7.2 CH3CT Centre
a: Press “End” to empty the data
b: Move the Throttle joystick to center point
c: Press “MODE” to confirm and there will be [OK] shown on the screen
7.3 CH3DN
a: Press “End” to empty the data
b: Push Throttle joystick to DOWNWARD
c: Press “MODE” to confirm and there will be [OK] shown on the screen
8.CH4:
8.1 CH4UP
a: Press “End” to empty the data
b: Push Throttle joystick to LEFT
c: Press “MODE” to confirm and there will be [OK] shown on the screen
8.2 CH4CT
a: Press “End” to empty the data
b: Toggle the Throttle joystick to center point
c: Press “MODE” to confirm and there will be [OK] shown on the screen
8.3 CH4DN
a: Press “End” to empty the data
b: Push Throttle joystick to RIGHT
c: Press “MODE” to confirm and there will be [OK] shown on the screen
9.When finish all channels calibration with joysticks, power-off and repower-on AT9S
