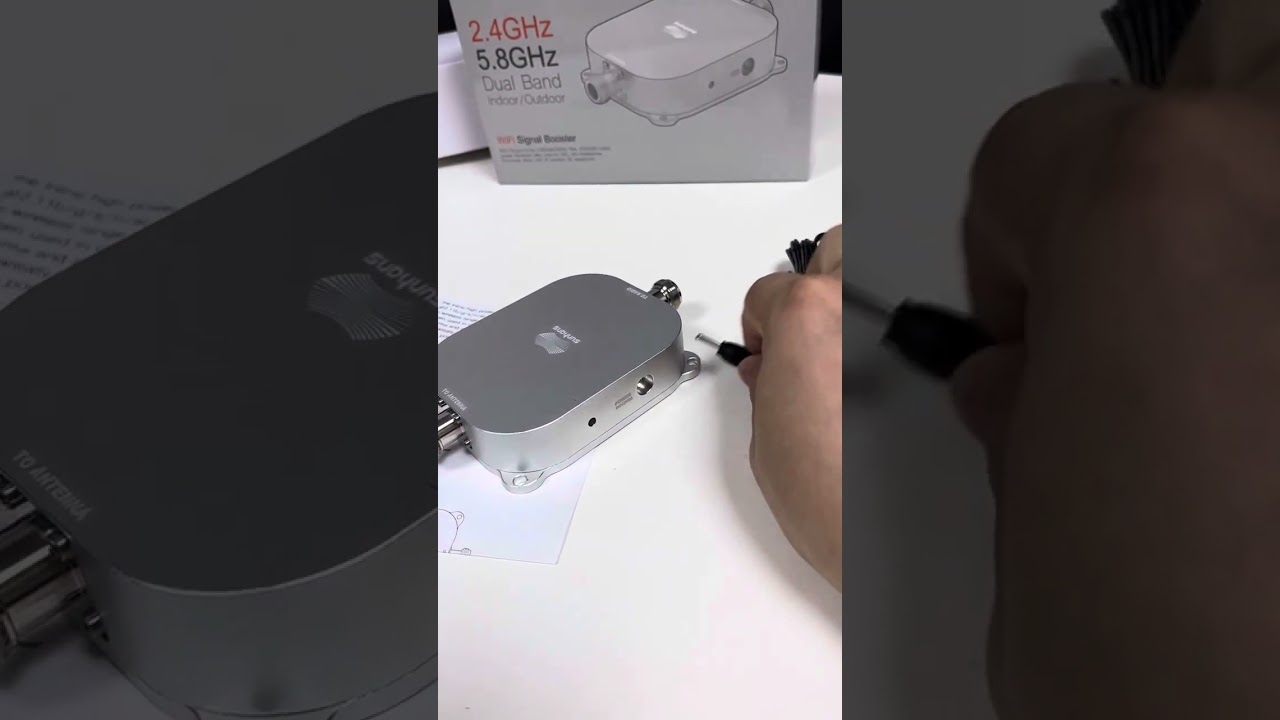

Intro of SUNHANS HIGH-POWER 2.4Ghz &5.8Ghz Dual-band 4W 36dBm wifi booster SHPro5824G4W INDOOR

Описание: This is a short intro video of SUNHANS HIGH-POWER 2.4Ghz &5.8Ghz Dual-band 4W 36dBm wifi booster SHPro5824G4W INDOOR. 2.4G &5.8G dual band wifi signal booster, could Auto switch frequency, 4000mW real output power;Aluminum-alloy case by CNC, anti-interference. Designed for Drones, UAV, RC equipment, etc.

WHERE TO OBTAIN THIS DUAL-BAND WIRELESS SIGNAL AMPLIFIER?

https://www.ebay.com/itm/303436830294
https://www.s-booster.com/

Or, directly contact us, [email protected] , for possibly detailed info or technical support.

Our product can support 2.4GHz &5.8GHz wireless Router/AP/ wireless bridge/wireless network card; 2.4GHz &5.8GHz wireless monitoring(NVR,DVR);2.4GHz &5.8GHz wireless microphone,RC drones,FPV device etc.


For UAV,Routers,IP cameras, R/C helicopters, planes and cars,Walkie talkies,ZigBee, Robot...

For House, Office,Hotels,Supermarkets, Hospitals,Parking Spaces...

For WiFi Solution & Project : WiFi Hotspot Solutions,Access points,Smart home systems, Smart city IOT, RC Drones Platform,security camera system

SKU: 0305SH200774

Model: SHPro5824G4W


[About Input power of Booster]

(output power of the device = input power of the amplifier),

Sunhans SHPro5824G4W booster input power 0~20dBm(18~19dBm will better),if the output power of the device is greater than 20dBm or the power is relatively small -2~6dBm,kindly let us know,we will give the suggestion to solove this question according to your actual situation.

[Maximum Output power]

In ideal situation,the max output power can be up to 4W(36dBm).This amplfier will boost the receive and transmit (RX and TX) power of your wireless device to about 36dBm.

After connected with Booster,the output power at the antenna end is transmit gain of booster + Output power of the device - Signal loss of Cable/Connector.

Technical Specifications:

Booster model: SHPro5824G4W

Operating range : 2.4~2.5GHz; 5.0~5.8GHz

Channel width: 20Mhz&40Mhz&80Mhz

Supported standards: IEEE 802.11b/g/n/a/ac

Operation mode: Bi-directional, half-duplex, time division duplex

Connector type: N-K female

Output power: 4000mW (36dBm)

Input power: 0 ~ 20dBm

Transmit gain: 16 ~ 19dB

Receiver gain: ≤12dB

Noise figure: ≤3.5dB typical

Frequency response: ±1dBoveroperatingrange

Power adapter: 12V/2A DC, 100~240V

Operating temperature: -40°C to +70°C

Operating humidity: Up to 75% relative humidity

Material: Cast aluminum

LED light: Power status LED and activity status LED

Booster weight: 318g

Booster size: 13cm x 7.7cm x 2.4cm

Package contents:

1 x SHPro5824G4W WiFi booster

1 x power supply

1 x user manual
