$3 Function Generator Kit (4K)
Автор: tsbrownie
Загружено: 2023-06-07
Просмотров: 734
Описание:

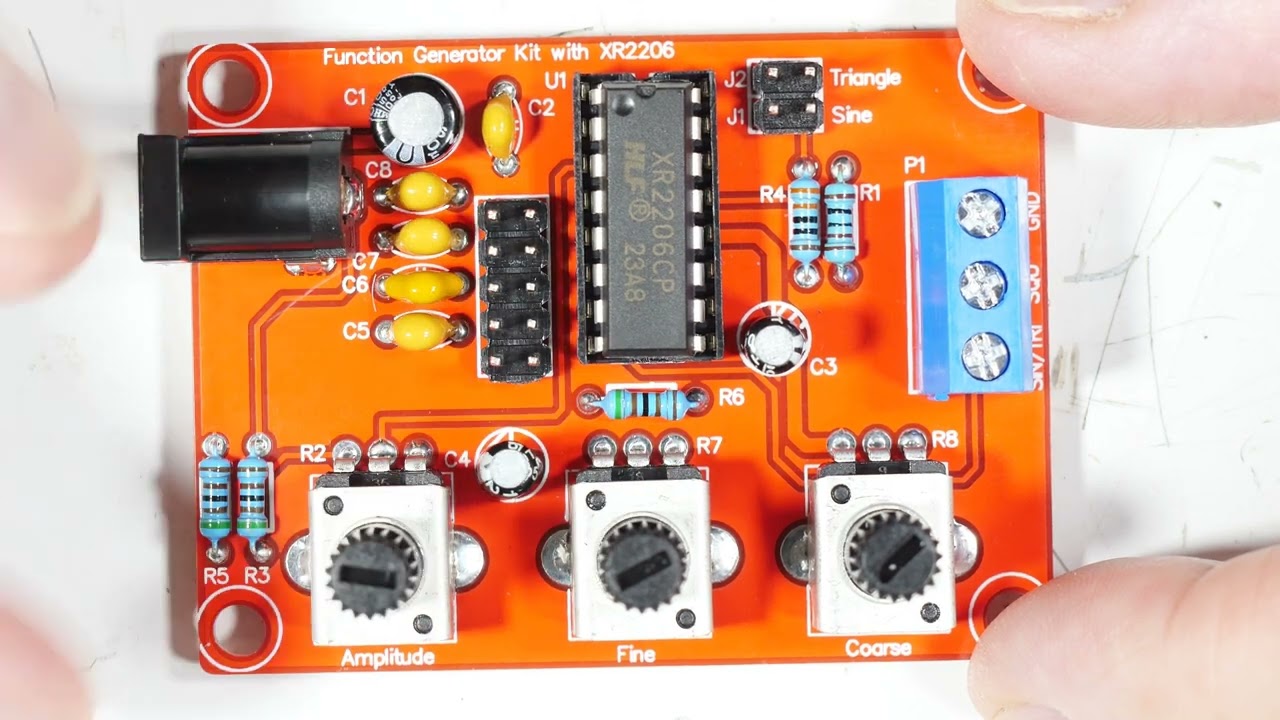

This is a function generator kit (specs below). Good quality circuit board and components.
I paid about $3 and shipping. Good learning project for soldering and electronics.
Another thing I wish I had when I was learning electronics!

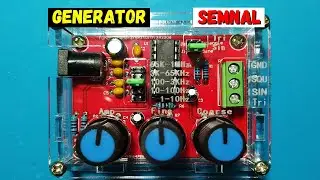

VOKTTA XR2206 Function Generator Kit
Specifications:
Voltage Supply: 9-12V DC Input (more stable below 12v)
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz (ranges: 1-10Hz, 10-100Hz, 100-3KHz, 3K-65KHz, 65KHz-1MHz)
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
Package Includes:
1 x Signal Generator DIY Kit with Case
