Chevalier FSG-1632 ADIV Automatic Precision Surface Grinding Machine
Автор: Dugard
Загружено: 2020-11-27
Просмотров: 2589
Описание:
http://www.dugard.com for more information
Features:
PLC touch screen 3 axes fully automatic surface and plunge grinding system
10.4” TFT high resolution 65536 color control to ensure ease of operation
High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding Remove period
Wheel head will raise up to end, start and reference positions
Table parks at left or right side after cycle is completed
I/O diagnosis & alarm display
To achieve better accuracy, the number of free passes between down-feeds can be preset depending on work piece material Remove period
Automatic Dressing on Table
Load Force Detection

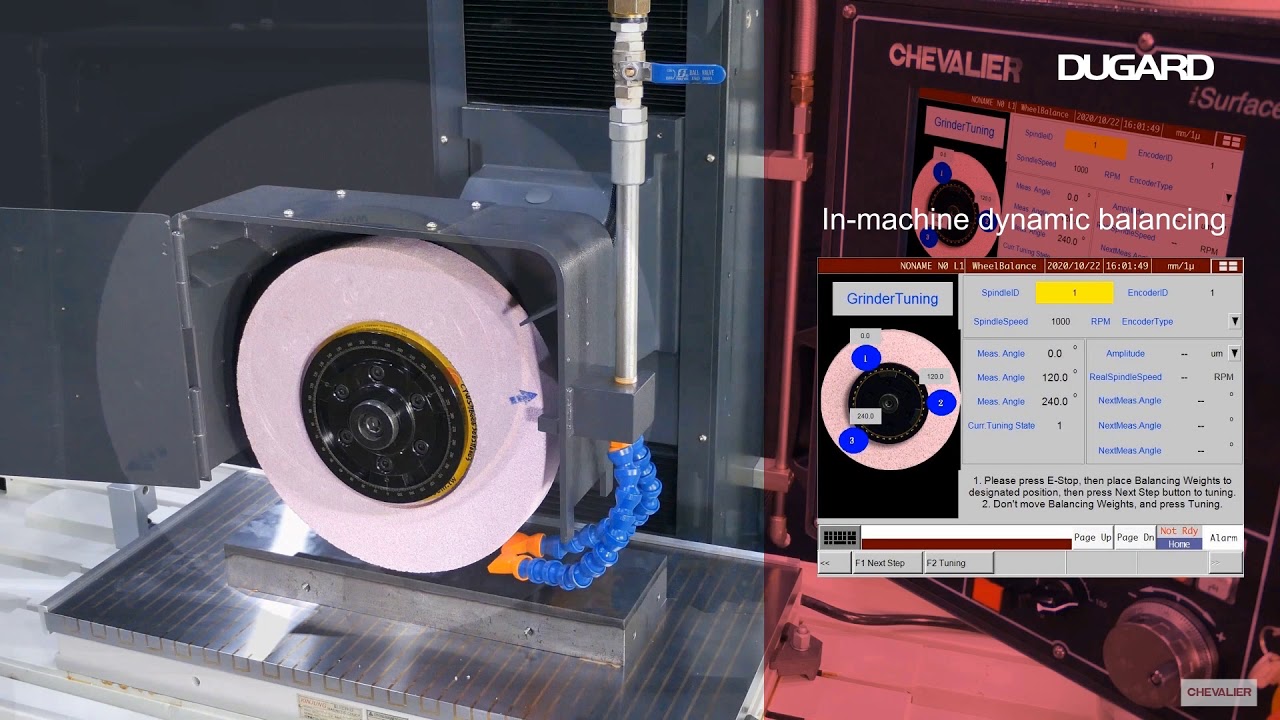

In-Machine Dynamic Balancing
Variable Speed Spindle
Specification:
Touch Screen Monitor
3-Axis Fully Automatic
Table Size (W x L): up to 400 x 1,000mm (16" x 40")
Auto Dressing and Compensation (Optional)
Elevation and Crossfeed are driven by Servo Motor
3-Axis Linear Roller Slide Way
Max. Grinding Size: up to 400 x 1,000mm (16" x 40")
Spindle Power: up to 5HP
http://www.dugard.com for more information
