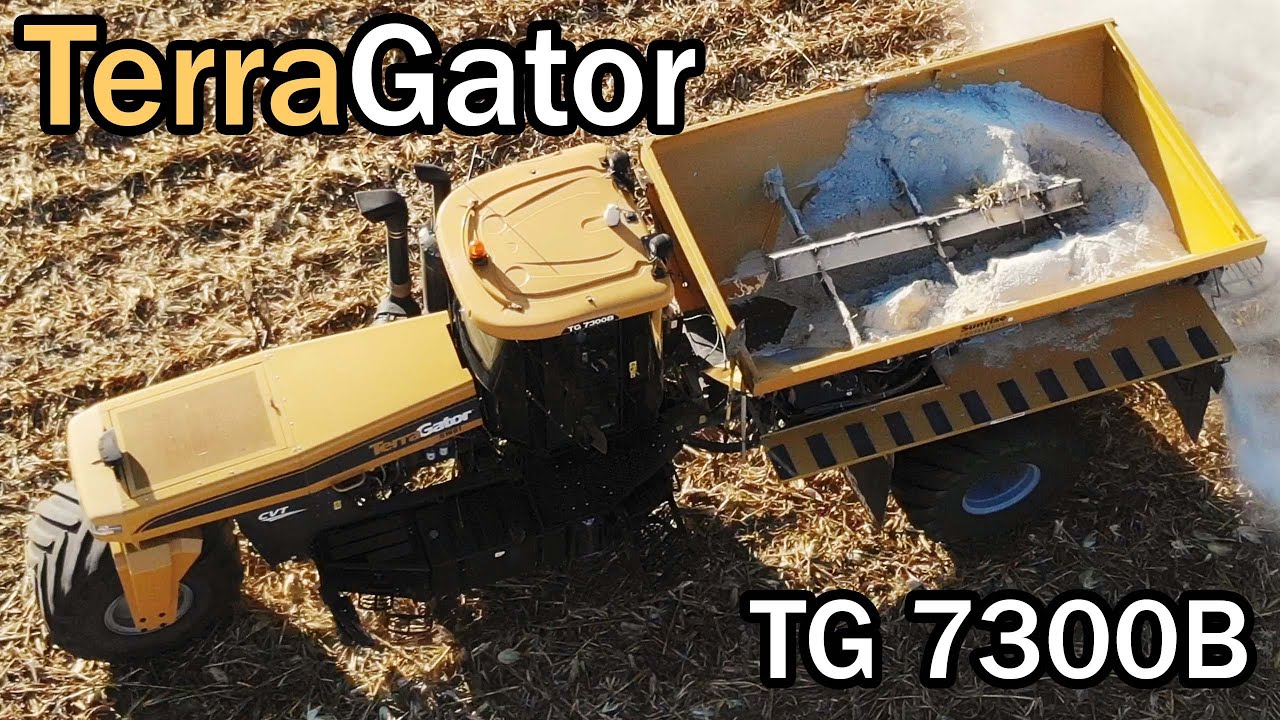

AGCO TerraGator TG7300B Floater on AG Spotter

Описание: A used 2017 machine sells for $238,000 dollars on average in 2019

Manufacturer AGCO
Make TerraGator Chassis
Industry Agriculture
Category Application Equipment
Subcategory Sprayer
Class Floater
GENERAL
Location of Assembly Jackson, MN USA
Region Primarily Sold North America
Models within Systems
Notes
ENGINE
Make AGCO POWER,
Model 84CTA
Certification Tier 4i
(hp) 330 @ 2100 rpm
Peak (hp) 361 @ 1950 rpm
Number of Cylinders 6
Displacement (cu in) 513
Peak Torque (ft-lbs) 1121 @ 1500 rpm
Std Alternator Amp Dual 150
Opt Alternator Amp
Battery(s) 2 – 1000CCA w/disconnect
DRIVETRAIN
Type CVT
Make / Model AGCO ML-260
4-Wheel Drive
Shifting Continuously Variable
Number of Fwd/Rev Gears Infinite (2 ranges)
Max Speed Fwd/Rev (mph) 41/12
1st Gear Fwd/Rev (mph)
2nd Gear Fwd/Rev (mph)
3rd Gear Fwd/Rev (mph)
4th Gear Fwd/Rev (mph)
5th Gear (mph)
6th Gear (mph)
FRAME & CHASSIS
Frame
Type / Material ASTM grade 70 Tubular Steel, cold formed (cut free)
Shape / Size Rectangle / 4″ x 12″
Construction Ladder-style welded cross members
Chassis
Front Suspension Rigid front axle frame mount
Rear Suspension Rigid rear axle to frame mount
Front Axle Type Free Wheeling
Rear Axle Type Axle Tech PRC-673, double reduction outboard planetary
Front Axle Rated Capacity (lb) 14000
Rear Axle Rated Capacity (lb) 42000
Total Rated Capacity (lb) 56000
Dry Compatible
Crop Clearance (in)
Front Tires 1000/50R25 Michelin or
Goodyear radial
Rear Tires 1000/50R25 Michelin or
Goodyear radial
Floatation Tires
Hydraulic Tread Adjust
Wheel Tread Spacing (in)
Turn Radius (ft-in) @ Tire Size 22.8
– Optional 4-Wheel Steer
BRAKES
Service Brakes Type “S” Cam Drum, Double Diaphragm Springs
Park Brake Type Spring Applied Air Release
OPERATOR AREA
Cab Placement Center
Floor Space (sq ft) 14
Glass Area (sq ft) 58
Steering Type Dynamic Load Sense
HVAC Automatic Temperature Control
Filtration Three Level Activated Carbon
Std Radio AM/FM Stereo/CD-MP3
Capable/Weather Band
Seat Suspension Type Semi Active Seat Suspension w/heated cushions
Optional Seat Semi Active with Leather
Covering or Air Ride
Buddy Seat N/A
Electrical Connectors
In-Cab Three auxiliary power outlets
FLUID CAPACITIES
Fuel Tank (g) 165
Optional Fuel Tank (g)
Rinse Tank (g) 110 or 135
Hand Wash Tank (g) Optional – 8
Chassis Hydraulic Reservoir (g) 13.5
Engine Oil (qt) 24.4
Engine Coolant (qt) 34.4
Gear Box (qt)
Windshield Reservoir (qt) 1.6
Foam Marker (g)
Pressure Washer (psi) Optional 2000
Systems Hydraulic Reservoir (g)
Air System
Compressor / Drive Engine Mounted
Reservoir Size (g) 11
Governor (psi) 120
DIMENSIONS & WEIGHTS
Wheelbase (ft) 22.8
Overall Length (ft) 30.6
Overall Width (ft) 11.18
Overall Height (ft) 11.54
Weights
Approximate Empty Weight (lb) 20696
Approximate Full Weight (lb)
Chassis Front Weight (lb) 9938
Chassis Rear Weight (lb) 10758
