Calamansi Juice Extractor evaluation

Описание: #foodprocessingequipments

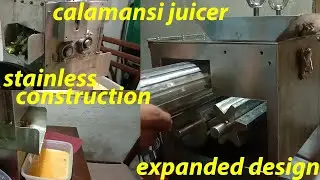

Testing our new calamansi juice extractor for Mindano client.

The materials used in this unit is a 304 grade stainless materials which includes rollers, shafts housing, stud bolt and nuts. The mechanism used here is a sprocket- chain assembly with tensioner supported by a roller bearing and aluminum shaft guide. Each roller has a keyway inserted and can be remove during cleaning. The front cover is also removable which can be lock up using latch lock located on both sides of the casing body. The sprocket and chain drives at the back is also covered for additional safety. Motor installed was a 60 watts AC geared motor with speed controller. Output shaft speed is 14RPM with a rated torque of 20N.m or 2.039432 kgf.m. Sprocket and chain used in the machine is a KANA japan brand with a pitch of 12.70. The teeth is hardened which ensure long life usage without replacement.

If there is someone who knows where to buy a food grade oil seals kindly refer it to me through this page facebook.com/rnfmetalworks as part of our continual improvement plan to further develop the product.
